| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Acting Style: | Single Acting | Cylinder Diameter: | 80mm |
|---|---|---|---|
| Maximum Stroke: | 10000mm | Power: | Hydraulic |
| Mounting Style: | Front Flange | Material: | 27SiMn, 45#, Q345B |
| Max Pressure: | 210 Bar | Operating Pressure: | 3000 Psi |
| High Light: | multi stage telescopic hydraulic cylinder,hollow hydraulic cylinder |
||

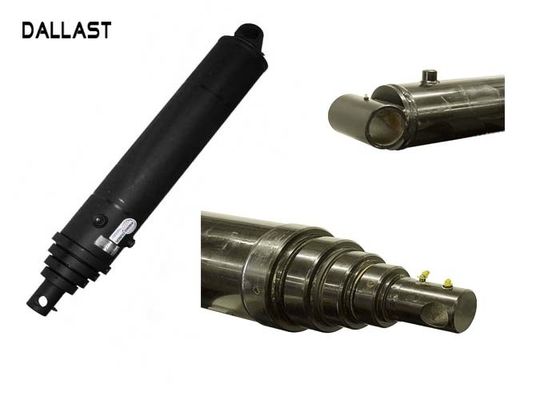

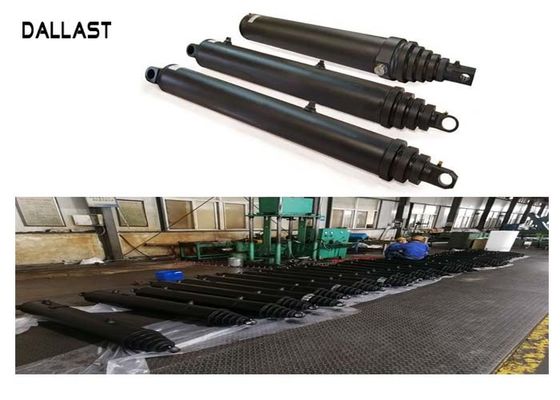

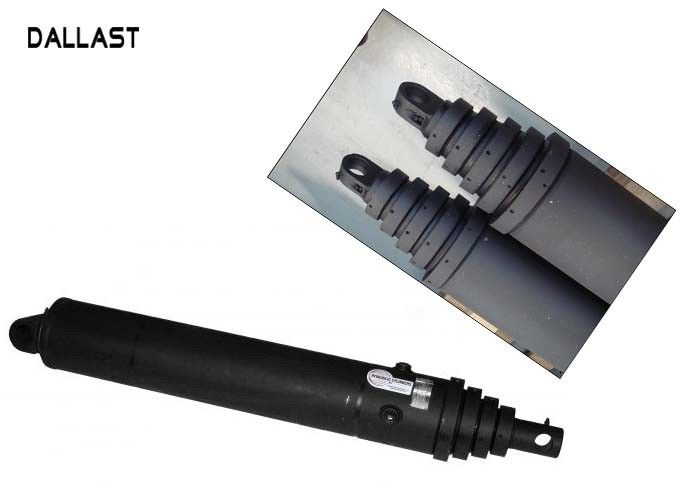

Inch Parker Telescopic Single Acting Multi Stage Hydraulic Cylinder
Every Parker single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All Parker cylinder products carry an eighteen month warranty.
Markets:
• Truck
• Refuse
• Mining
• Material Handling
• Forestry
• Construction
Features/Benefits:
• Snap on glass filled bearings that absorb contaminants without damaging cylinder walls
• Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing nuts backing off
• 18 month warranty
Applications:
• Dump Trucks and Trailers
• Mining Vehicles
• Material Handling Vehicles
• Construction Vehicles
| Model | The first stage rod diameter | Stroke | Closed length | Open length |
| DALLAST 3TG F5*72 | 5" | 1829mm | 945mm | 2773mm |
| DALLAST 3TG F5*84 | 5" | 2134mm | 1046mm | 3180mm |
| DALLAST 3TG F5*107 | 5" | 158/136/116/95 | 1229mm | 3961mm |
| DALLAST 3TG F5*126 | 5" | 3216mm | 1386mm | 4602mm |
| DALLAST 3TG F6*104 | 6" | 2640mm | 1194mm | 3834mm |
| DALLAST 3TG F6*107 | 6" | 2732mm | 1289mm | 3961mm |
| DALLAST 3TG F6*111 | 6" | 2819mm | 1268mm | 4087mm |
| DALLAST 3TG F6*120 | 6" | 3048mm | 1359mm | 4407mm |
| DALLAST 3TG F6*126 | 6" | 3208mm | 1386mm | 4594mm |
| DALLAST 3TG F6*140 | 6" | 3562mm | 1519mm | 5081mm |
| DALLAST 5TG F8*170 | 8" | 4318mm | 1267mm | 5585mm |
| DALLAST 5TG F8*190 | 8" | 4800mm | 1387mm | 6181mm |
| DALLAST 5TG F8*220 | 8" | 5588mm | 1524mm | 7112mm |
| DALLAST 5TG F8*235 | 8" | 5944mm | 1641mm | 7585mm |
| DALLAST 5TG F8*250 | 8" | 6325mm | 1743mm | 8068mm |
| DALLAST 5TG F8*265 | 8" | 6731mm | 1803mm | 8534mm |
| DALLAST 5TG F8*285 | 8" | 7239mm | 1994mm | 9233mm |
| DALLAST 5TG F9*220 | 9" | 5537mm | 1586mm | 7123mm |
| DALLAST 5TG F9*235 | 9" | 5918mm | 1662mm | 7580mm |
| DALLAST 5TG F9*250 | 9" | 6299mm | 1738mm | 8037mm |
| DALLAST 5TG F9*265 | 9" | 6731mm | 1844mm | 8575mm |
| DALLAST 5TG F9*280 | 9" | 7112mm | 1997mm | 9109mm |
| DALLAST 5TG F9*300 | 9" | 7620mm | 2007mm | 9627mm |
| DALLAST 5TG F9*320 | 9" | 8129mm | 2108mm | 9628mm |
External packing nuts provide added support to the tube exterior, and the polyurethane rod wipers resist higher temperatures without extrusion. The leaderless design eliminates the costly and time-consuming process of removing air from the cylinder.
| MATERIALS OF CONSTRUCTION | 1026 Steel, A36 Steel | NOMINAL PRESSURE (MPA) | 13.8 Mpa |
| FLUID TYPE | Various Operating Fluids | ASSEMBLY | N/A |
| MOUNTING OPTION | Various options availabe based on application requirements | BORE SIZE (INCH) | Up to 17" |
| LENGTH (INCH) | up to 500 | ROD DIAMETER (INCH) | Up to 16" |
FAQ:
1. Hydraulic cylinder internal leakage?
A: 3 main reasons causing internal leakage: Overload, polishing bad controlled, cheap seal kits. As is known to all, vehicles in China are often overloaded, our products all designed to bear the overload power. Advanced equipment could assure the polish processing. And we use the imported/TOP brand seals to meet customers' requirement.
2. What about the quality feedback of your products?
A: We have never received even once quality complaint for many years of international business.
3. Can you help me to install or recommend what kind of hydraulic cylinder or power pack should I use for specific machine?
A: Yes, we have 25 experienced engineers who are always ready to help you. If you do not know what kind of hydraulic cylinders should be used in your machine, please just contact us, our engineers will design the exact products match your need.
4. What is the delivery time?
A: Within 20 days for samples.
15-30 days for bulk production, which is depend on quality, production process and so on.
