2/3/4/5 Multi Stage Hydraulic Cylinder Single Acting 12 Months Warranty For Vehicles

2/3/4/5 Multi Stage Hydraulic Cylinder Single Acting 12 Months Warranty For Vehicles

    • 2/3/4/5 Multi Stage Hydraulic Cylinder Single Acting 12 Months Warranty For Vehicles
    • 2/3/4/5 Multi Stage Hydraulic Cylinder Single Acting 12 Months Warranty For Vehicles
    • 2/3/4/5 Multi Stage Hydraulic Cylinder Single Acting 12 Months Warranty For Vehicles
  • 2/3/4/5 Multi Stage Hydraulic Cylinder Single Acting 12 Months Warranty For Vehicles

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Model: Many Types Hydraulic Cylinde Painting: Anti Rust Painting
    Trademark: DALLAST Body Material: According To User Requirements
    Certification: Gs, RoHS, Ce, ISO9001 Transport Package: Plywood Box Or Pallet
    Working Temperature: -30℃-80℃ Origin: Shandong, China

    2/3/4/5 Multi Stage Single Acting Parker Hydraulic Telescopic Cylinder for Vehicles



    Models

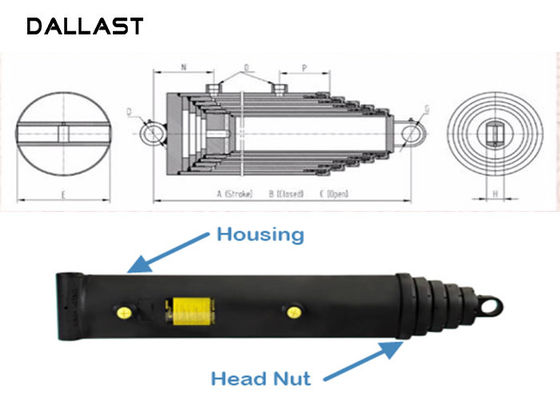

    Parker First Stage Diameter Stroke(A) Closed Length(B) Open Length(C)
    S53DC-66-72 5" 127 72"(1829mm) 37.19" (945mm) 109.19" (2773mm)
    S53DC-66-84 5'' 127 84" (2134mm) 41.19" (1046mm) 125.19" (3180mm)
    S53DC-65-107 5" 127 107.56" (2732mm) 48.38" (1229mm) 155.94" (3961mm)
    S53DC-65-126 5" 127 126.63" (3216mm) 54.56" (1386mm) 181.19" (4602mm)
    S63DC-101-86 6" 152.4 86.75" (2203mm) 40.88" (1038mm) 127.63" (3241mm)
    S63DC-101-104 6" 152.4 103.94" (2640mm) 47" (1194mm) 150.94" (3834mm)
    S63DC-101-107 6" 152.4 107.56" (2732mm) 48.38" (1289mm) 155.94" (3961mm)
    S63DC-97-111 6'' 152.4 111" (2819mm) 49.94" (1268mm) 160.94" (4087mm)
    S63DC-102-120 6'' 152.4 120" (3048mm) 53.5" (1359mm) 173.5" (4407mm)
    S63DC-97-123 6'' 152.4 123" (3124mm) 54.94" (1395mm) 177.94" (4519mm)
    S63DC-102-126 6'' 152.4 126.31"(3208mm) 54.56" (1386mm) 180.87" (4594mm)
    S63DC-101-140 6'' 152.4 140.25" (3562mm) 59.81" (1519mm) 200.06" (5081mm)
    S64DC-12-135 6'' 152.4 135" (3429mm) 47.19" (1199mm) 182.19" (4628mm)
    S64DC-14-156 6'' 152.4 156" (3962mm) 53.62" (1362mm) 209.62" (5324mm)
    S73DC-66-110 7" 177.8 110.63" (2810mm) 50.06" (1271mm) 160.69" (4081mm)
    S73DC-66-120 7" 177.8 120" (3048mm) 53.12" (1349mm) 173.12" (4397mm)
    S73DC-66-124 7" 177.8 124.88" (3172mm) 54.81" (1392mm) 179.69" (4564mm)
    S73DC-66-129 7" 177.8 129" (3277mm) 56.5" (1435mm) 185.5" (4712mm)
    S73DC-66-140 7" 177.8 140.44" (3567mm) 60" (1524mm) 200.44" (5091mm)
    S73DC-66-150 7" 177.8 150" (3810mm) 63.50" (1613mm) 213.50" (5423mm)
    S74DC-74-120 7" 177.8 120" (3048mm) 44.12" (1120mm) 164.12" (4168mm)
    S74DC-74-135 7" 177.8 135" (3429mm) 48.43" (1230mm) 183.44" (4659mm)
    S74DC-74-140 7" 177.8 140" (3556mm) 49.75" (1263mm) 189.75" (4819mm)
    S74DC-74-156 7" 177.8 156" (3962mm) 53.75" (1365mm) 209.75" (5327mm)
    S74DC-74-161 7" 177.8 161.75" (4108mm) 55.31" (1405) 217.06" (5513mm)
    S74DC-74-167 7" 177.8 167" (4242mm) 56.38" (1432mm) 223.38" (5674mm)
    S74DC-74-180 7" 177.8 180" (4572mm) 61.12" (1552mm) 241.12" (6124mm)
    S84DC-66-148 8" 203.2 147.75" (3753mm) 51.50" (1308mm) 199.25" (5061mm)
    S84DC-66-156 8" 203.2 156" (3962mm) 53.75" (1365mm) 209.75" (5327mm)
    S84DC-66-161 8" 203.2 160" (4064mm) 55.75" (1416mm) 215.75" (5480mm)
    S84DC-66-170 8" 203.2 170" (4318mm) 57.25" (1454mm) 227.25" (5481mm)
    S84DC-66-180 8" 203.2 180" (4572mm) 59.75" (1518mm) 239.75" (6090mm)
    S85DC-66-170 8" 203.2 170" (4318mm) 49.88" (1267mm) 219.88" (5585mm)
    S85DC-66-190 8" 203.2 189" (4800mm) 54.62" (1387mm) 243.62" (6188mm)
    S85DC-66-220 8" 203.2 220" (5588mm) 60" (1524mm) 280" (7112mm)
    S85DC-66-235 8" 203.2 234" (5944mm) 64.62" (1641mm) 298.62" (7585mm)
    S85DC-66-250 8" 203.2 249" (6325mm) 68.62" (1743mm) 317.62" (8068mm)
    S85DC-66-265 8" 203.2 265" (6731mm) 71" (1803mm) 336" (8534mm)
    S85DC-66-285 8" 203.2 285" (7239mm) 78.5" (1994mm) 363.5" (9233mm)
    S95DC-52-220 9" 228.6 218" (5537mm) 62.44" (1586mm) 280.44" (7123mm)
    S95DC-52-235 9" 228.6 233" (5918mm) 65.44" (1662mm) 298.44" (7580mm)
    S95DC-52-250 9" 228.6 248" (6299mm) 68.44" (1738mm) 316.44" (8037mm)
    S95DC-52-265 9" 228.6 265" (6731mm) 72.62" (1844mm) 337.62" (8575mm)
    S95DC-52-280 9" 228.6 280" (7112mm) 72.62" (1997mm) 358.62" (9109mm)
    S95DC-52-300 9" 228.6 300" (7620mm) 79" (2007mm) 379" (9627mm)
    S95DC-52-320 9" 228.6 320" (8128mm) 83" (2108mm) 403" (9628mm)
    S95DC-52-340 9" 228.6 340" (8636mm) 87" (2210mm) 427" (10846mm)



    Warranty and Guarantee:

    1. All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the receipt of your purchase

    2. The shipping and handling charge is not refundable, and customer should be responsible for all the charges of returning and reshipping.

    3. All return items must be in its original conditions, including box and accessories. Men made defects are not guaranteed, such as broken, scratched and so on.

    4. For any items, please send by EMS or your local post when send back.



    Introduction&Application:
    1. Truck front lifting cylinder is the dumper hydralic lifting system for lifting actuator, truck compartment or tank.
    2. It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements.



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    Features:
    • Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
    • Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    • Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
    nuts backing off.
    • Single-acting cylinders transfer force and motion in one direction only.

    2/3/4/5 Multi Stage Hydraulic Cylinder Single Acting 12 Months Warranty For Vehicles
