Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer

Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer

    • Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer
    • Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer
    • Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer
  • Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Size: Custom,OEM,Sdandard,Nonstandard Seal: Hallite,SKF,NOK,Guarnitec,Parker
    Material: Alloy Steel,Carbon Steel,Stainless Steel,27SiMn Type: Welding Hydraulic Cylinder
    Model: Single Acting Hydraulic Cylinder Structure: Telescopic Sleeve Cylinder
    Stage: 3 4 5 Stage Lift Capacity: 13-90 Ton

    Telescoping Chrome Lifting Dumper Tipper Trailer Hydraulic Ram Cylinder



    We can make hydraulic cylinder design,Please provide us the following technical parameters:

    • Bore diameter;

    • Rod diameter;

    • Stroke;

    • Working pressure;

    • Front and back end mount type;

    • Using frequency;

    • Work Environment;

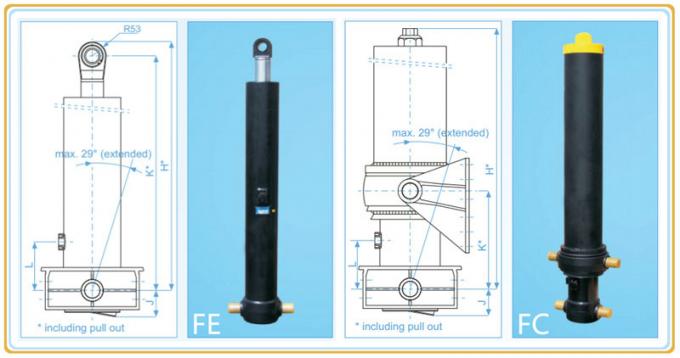

    FC Type hydraulic cylinder



    MODEL NO. Stage Largest Moving Stage Diameter(mm) Stroke(mm) The largest sleeve OD(mm) Mounting distance(mm)
     FC-3-110-3205 3 110 3205 168 343
     FC-3-110-3460 3 110 3460 168 343
     FC-3-129-2980 3 129 2980 218 343
     FC-3-129-3205 3 129 3205 218 343
     FC-3-129-3460 3 129 3460 218 343
     FC-3-129-3880 3 129 3880 218 343
    FC-3-129-4270 3 129 4270 218 343
     FC-4-129-4280 4 129 4280 218 343
    FC-4-129-4280 4 129 4280 218 343
     FC-4-129-5180 4 129 5180 218 343
    FC-3-149-4270 3 149 4270 244 343
    FC-4-149-3680 4 149 3680 218 343
    FC-4-149-3980 4 149 3980 218 343
    FC-4-149-4280 4 149 4280 244 343
    FC-4-149-4620 4 149 4620 244 343
    FC-4-149-4940 4 149 4940 244 343
    FC-4-149-5180 4 149 5180 244 343
    FC-4-149-5460 4 149 5460 244 343
    FC-4-169-4280 4 169 4280 244 343
    FC-4-169-4620 4 169 4620 244 343
    FC-4-169-4940 4 169 4940 244 343
    FC-4-169-5180 4 169 5180 244 343
    FC-4-169-5460 4 169 5460 244 343
    FC-5-169-5355 5 169 5355 244 343
    FC-5-169-5780 5 169 5780 244 343
    FC-5-169-6180 5 169 6180 244 343
    FC-5-169-6830 5 169 6830 244 343
    FC-5-169-7130 5 169 7130 244 343
    FC-5-169-7630 5 169 7630 244 343
    FC-5-169-8130 5 169 8130 244 343
    FC-5-169-9030 5 169 9030 244 343
    FC-5-169-9530 5 169 9530 244 343
    FC-4-191-5460 4 191 5460 274 343
    FC-5-191-5780 5 191 5780 274 343
    FC-5-191-6180 5 191 6180 274 343
    FC-5-191-7130 5 191 7130 274 343
    FC-5-191-7630 5 191 7630 274 343
    FC-5-191-8130 5 191 8130 274 343
    FC-5-191-9030 5 191 9030 274 343
    FC-5-191-9530 5 191 9530 274 343
    FC-5-214-7610 5 214 7610 274 343
    FC-5-214-9030 5 214 9030 274 343







    FE Type hydraulic cylinder



    MODLE NO. Stage Largest Moving Stage Diameter(mm) Stroke(mm) Mounting distance(mm)
    FE-3-110-3205 3 110 3205 1449
    FE-3-110-3460 3 110 3460 1609
    FE-3-129-3460 3 129 3460 1449
    FE-3-129-3880 3 129 3880 1609
    FE-3-149-2900 3 149 2900 1320
    FE-3-149-3200 3 149 3200 1420
    FE-3-149-3500 3 149 3500 1520
    FE-3-149-3880 3 149 3880 1644
    FE-4-149-4280 4 149 4280 1450
    FE-4-149-4940 4 149 4940 1529
    FE-4-149-4620 4 149 4620 1484
    FE-4-169-4280 4 169 4280 1394
    FE-4-169-4450 4 169 4450 1437
    FE-4-169-4620 4 169 4620 1479
    FE-4-169-4940 4 169 4940 1529
    FE-4-169-5000 4 169 5000 1574
    FE-4-169-5180 4 169 5180 1604
    FE-5-169-5355 5 169 5355 1394
    FE-5-169-5780 5 169 5780 1559
    FE-5-169-6180 5 169 6180 1527
    FE-5-169-6480 5 169 6480 1604
    FE-5-169-6830 5 169 6830 1674
    FE-5-169-7130 5 169 7130 1769
    FE-5-191-6180 5 191 6180 1527
    FE-5-191-9030 5 191 9030 2177
    FE-6-191-7420 6 191 7420 1677
    FE-5-214-6830 5 214 6830 1662
    FE-5-214-7130 5 214 7130 1722



        We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.



    Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer

    Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer

    Hydraulic Ram Cylinder Telescoping Chrome Lifting Dumper Tipper Trailer
