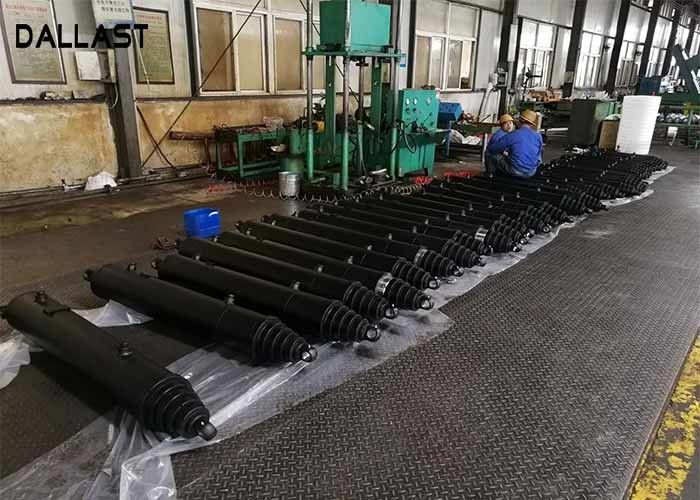

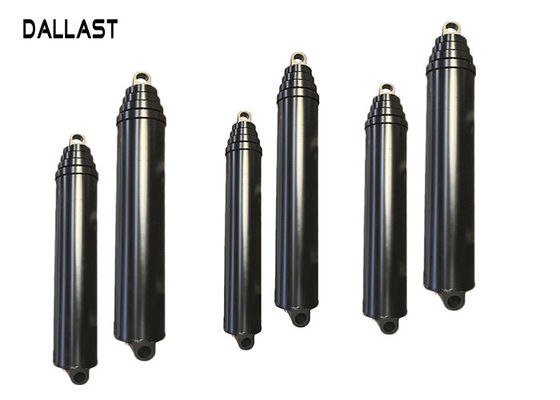

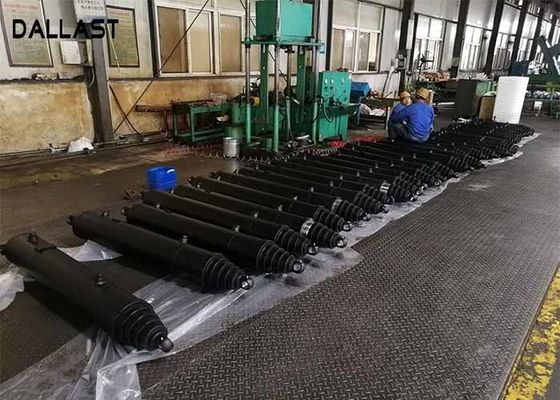

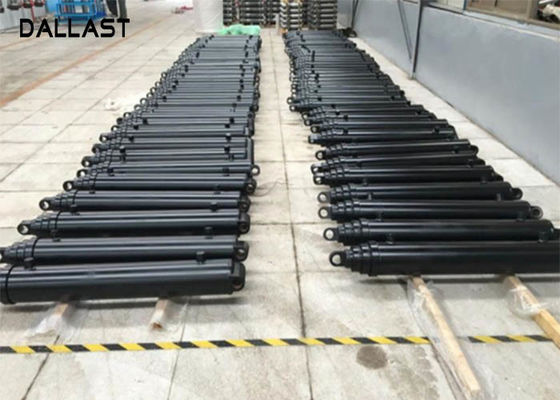

Single Acting FC Sleeve Multi Stage Telescopic Hydraulic Cylinder For Dump Truck

Single Acting FC Sleeve Multi Stage Telescopic Hydraulic Cylinder For Dump Truck

    • Single Acting FC Sleeve Multi Stage Telescopic Hydraulic Cylinder For Dump Truck
    • Single Acting FC Sleeve Multi Stage Telescopic Hydraulic Cylinder For Dump Truck
    • Single Acting FC Sleeve Multi Stage Telescopic Hydraulic Cylinder For Dump Truck
  • Single Acting FC Sleeve Multi Stage Telescopic Hydraulic Cylinder For Dump Truck

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Diameter: 6-1000mm Painting: Anti Rust Painting
    Trademark: DALLAST Body Material: According To User Requirements
    Type: Hydraulic Single Cylinder Model Number: 3TG/4TG/5TG
    Working Temperature: -30℃-80℃ Delivery Time: 15-25 Days

    Single Acting FC Sleeve Multistage Hydraulic Oil Cylinder for Dump Truck

    Application:
    The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;



    Cylinder Advantages:

    • Material:Alloy steel,Carbon steel,Stainless steel,27SiMn
    • Rod :Chrome plated and quenched.Has good mechanical properties, long service life
    • Cylinder:Honing machining /boring /rolling
    • Professional manufacturer& supplier of Hydraulic Cylinders
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • Hydraulic Cylinders can be Make according to client's requirements
    • One year warranty and long time track service is offered to solve any problems you meet after sale.





    Specification:



    Application Dump truck, Tipper, Trailer, Hoist
    Material of cylinder tube Stainless Steel, Alloy Steel
    Coating All tubes are chrome plated
    Working pressure 10MPa-25MPa
    Bore size 85mm-800mm
    Capacity 7t-120t
    Stroke 1000mm-12000mm
    Color Black, Blue, Yellow, White, Red etc.
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001: 2008, SGS, TS16949
    Warranty One year after shipping arrival
    Working temperature -30° C to 80°C



    Type

    Model code total stroke length closed length extended length width of base eye diam. Of base pin eye width of top pin eye diam. Of top pin eye weight (lbs)
    MH100-53-84P 84 39 1/2 122 1/2 7 Fits a 2" Pin 2 Fits a 2" Pin 178
    MH100-53-126P 126 54 1/2 180 1/2 7 Fits a 2" Pin 2 Fits a 1 3/4" Pin 215
    MH100-63-108P 108 49 1/2 157 1/2 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 272
    MH100-63-120P 120 53 1/2 174 1/2 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 265
    MH100-63-126P 126 55 1/2 181 1/2 7 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 280
    MH100-63-132P 132 57 1/2 189 1/2 7 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 310
    MH100-63-140P 140 60 200 7 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 325
    MH100-73-120P 120 53 1/8 173 1/8 7 8 5/8 Fits a 2" Pin 2 Fits a 2" Pin 383
    MH100-73-124P 124 54 13/16 179 11/16 7 8 5/8 Fits a 2" Pin 2 Fits a 2" Pin 397



    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
    we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF, DDU.

    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
