Steel Hydraulic Lift Cylinder Dump Truck Telescoping Sleeve Chrome

Steel Hydraulic Lift Cylinder Dump Truck Telescoping Sleeve Chrome

    • Steel Hydraulic Lift Cylinder Dump Truck Telescoping Sleeve Chrome
    • Steel Hydraulic Lift Cylinder Dump Truck Telescoping Sleeve Chrome
    • Steel Hydraulic Lift Cylinder Dump Truck Telescoping Sleeve Chrome
  • Steel Hydraulic Lift Cylinder Dump Truck Telescoping Sleeve Chrome

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Pressure Direction: Single Acting Cylinder Adjusted Form: Regulated Type
    Place Of Origin: Shandong China Material: Steel
    Structure: Telescoping Hydraulic Cylinder Pressure: Middle Pressure

    Single Acting Dump Truck Telescoping Sleeve Chrome Hydraulic Lift Cylinder

    Single acting hydraulic cylinder
    Single acting cylinders are the perfect choice for applications where gravity, weight or some other assist force is available to move the cylinder in one direction. Hydraulic pressure actuates the rod in one direction: extend or retract
    • Push action cylinders
    • Pull action cylinders
    • Rapid traverse cylinders

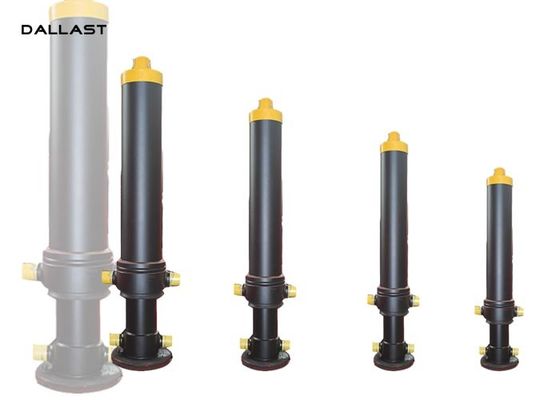

    • Telescopic cylinders



    TYPE Stage

    Working pressure

    MPa

    Largest Stage Diameter

    mm

    Stroke

    mm

    The largest sleeve OD

    mm

    Mounting distance

    mm

    FC-3-110-3205 3 16 110 3205 168 343
    FC-3-110-3460 3 16 110 3460 168 343
    FC-3-129-2980 3 16 129 2980 218 343
    FC-3-129-3205 3 16 129 3205 218 343
    FC-3-129-3460 3 16 129 3460 218 343
    FC-3-129-3880 3 16 129 3880 218 343
    FC-3-129-4270 3 16 129 4270 218 343
    FC-4-129-4280 4 16 129 4280 218 343
    FC-4-129-4280 4 16 129 4280 218 343
    FC-4-129-5180 4 16 129 5180 218 343
    FC-4-149-3680 4 16 149 3680 218 343
    FC-4-149-3980 4 16 149 3980 218 343
    FC-4-149-4280 4 16 149 4280 244 343
    FC-4-149-4620 4 16 149 4620 244 343
    FC-4-149-4940 4 16 149 4940 244 343
    FC-4-149-5180 4 16 149 5180 244 343
    FC-4-149-5460 4 16 149 5460 244 343
    FC-4-169-4280 4 16 169 4280 244 343
    FC-4-169-4620 4 16 169 4620 244 343
    FC-4-169-4940 4 16 169 4940 244 343
    FC-4-169-5180 4 16 169 5180 244 343
    FC-4-169-5460 4 16 169 5460 244 343

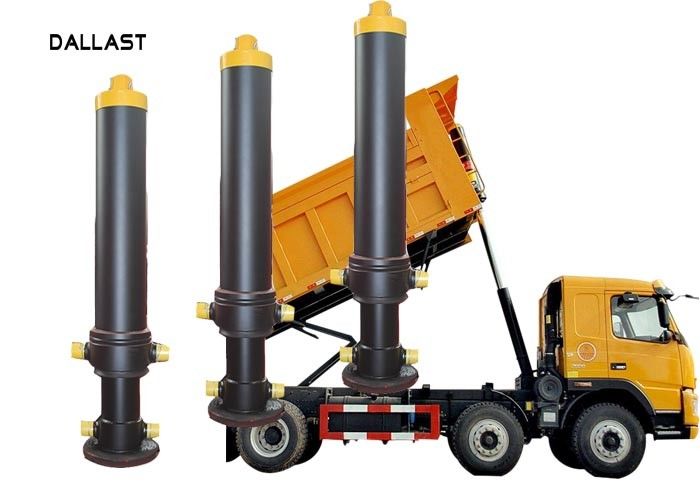

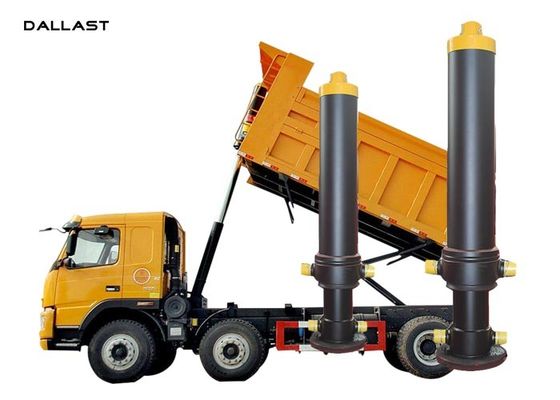

    This type of hydraulic cylinder is used in front-installed lifting frame on tipping vehicle. Installing distance is small, so it is convenient to install and avoid the intervene during the lifting period. It has deflating kit, and can remove the system air conveniently to make sure of normal working of hydraulic system. Sealed system, made by imported technology, is of property good, and low friction, so the life is long.



    We can design and produce most kind hydraulic cylinder. Single acting, double acting hydraulic cylinder. Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder.



    (1) Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane, pump truck, garbage truck, garbage compactor and boat used hydraulic cylinder etc.



    (2) Metallurgical Machinery cylinders for: decelerator, tile press etc.



    (3) Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc.



    (4) Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeded etc.



    Advantage
    1. Max diameter: 1200mm
    2. Parker or Merkel Seal
    3. Long service life and easy repair
    4. Good sealed performance

    Main characteristics
    1. Piston rod and cylinder body choose steel forgings
    2. Piston rod chromatin after heat treatment.
    3. Choose Parker or Merkel seal ring
    4. Hight temperature resistant and high pressure resistant according to the customers' requirements
    5. Max pressure: 40 Mpa
    6. Max temperature: 200 degrees.


    Our companies can customize the design, the production of all types of excavator’s hydraulic cylinder. We have sets of advanced cylinder production equipment. The cylinder liners are made of cold drawn seamless steel tubes with strong honing technique. The cylinder length can reach up to 7m with diameters from φ40 to φ500. The piston rods are made of chrome steel with special heat treatment. The diiron sing technique is applied to the surface, with makes it high in smooth finish with tough inside and hard outside. The piston rod’s diameters are from φ5 to φ180, equipped with high quality seals. The quality of our cylinders is guaranteed by the test of high-pressure test bed. We can serve you with our quality products, reasonable price, and timely delivery.



    Steel Hydraulic Lift Cylinder Dump Truck Telescoping Sleeve Chrome
