| Place of Origin: | Qingdao, China |
| Brand Name: | DALLAST |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | custom |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 15-25 work days per year |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Pressure: | Normal Pressure | Temperature: | -30℃~90℃ |
|---|---|---|---|
| Piston Rod Ø: | Custom | Function: | Truck Lift, Hydraulic Tilt Cylinder |
| Material: | Stainless Steel, Steel, Etc. | Type: | FC Type Hydraulic Cylinder |
| High Light: | garbage truck hydraulic cylinders,crane hydraulic cylinder |
||

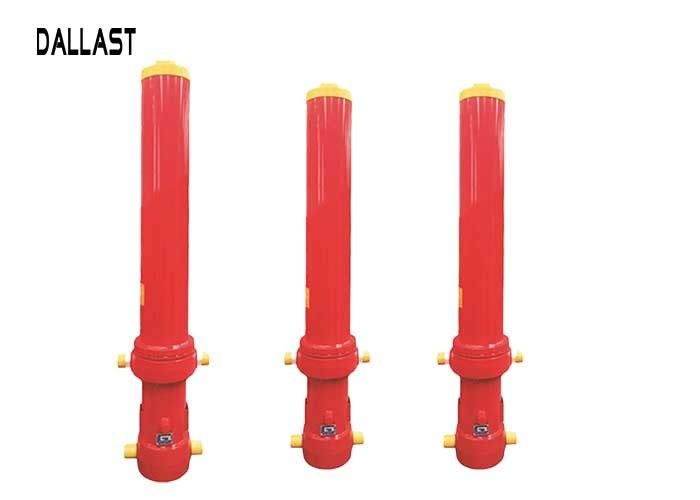

Telescopic Type Hydraulic Lift Cylinder for Dump Truck Stroke 3000mm-9000mm Welded
Features:
Choice of Mounting Styles, Cross Tube or Trunnion
Hard Chrome Plated Stages
Piston Ø: customized
Piston rod Ø: customized
Max. stroke speed: according to the product types
We use hard chromed rods (other options are available)
| FC Type Hydraulic Cylinder | |||||
| MODEL NO | Stage |
Largest Stage Diameter |
Stroke | The largest sleeve OD | Mounting distance |
| (mm) | (mm) | (mm) | (mm) | ||
| FC-3-110-3205 | 3 | 110 | 3205 | 168 | 343 |
| FC-3-129-3880 | 3 | 129 | 3880 | 218 | 343 |
| FC-3-129-4270 | 3 | 129 | 4270 | 218 | 343 |
| FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
| FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
| FC-4-129-5180 | 4 | 129 | 5180 | 218 | 343 |
| FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
| FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
| FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
| FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
| FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
|
We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the drawings and tell us the details. |
|||||
|

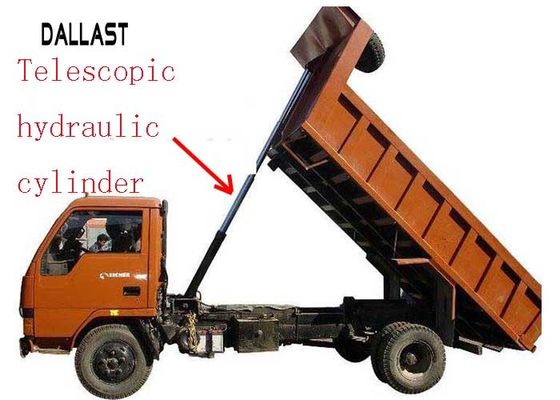

Tips: In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.
|
|||||
Application:
Can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
Advantdges:
Big lifting force; Higher efficiency; Stronger weather resistance; Better performance.
the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.
The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.
Warranty: We offer 12 months warranty.
Material:
Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.
After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc.
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
5. Service Center all over the world for after sales problems.
