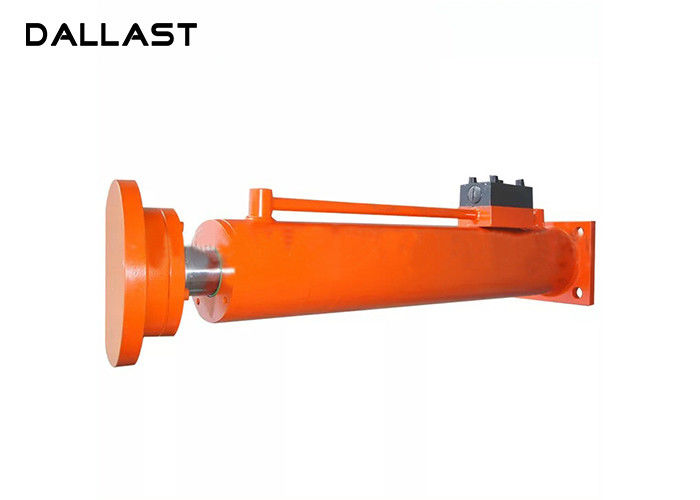

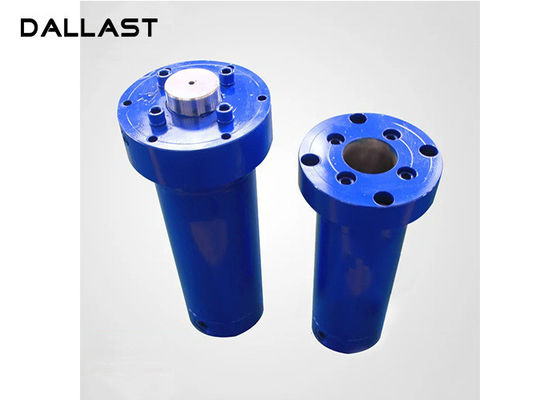

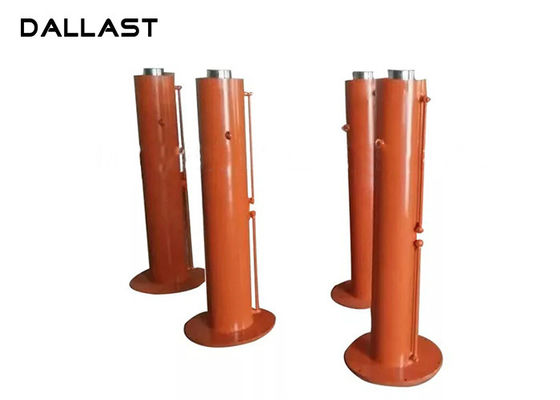

Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder

Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder

    • Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder
    • Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder
    • Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder
  • Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Product Name: Hydraulic Rams Cylinder Model: Piston Type Hydraulic Cylinder
    Standard: Nonstandard Material: Carbon Steel, Alloy Steel, Stainless Steel
    Seals: Kaden, Hallite, Parker, Nok, SKF Etc Piston Rod: 10-1500mm, Tempering, Plated Nickel, Chrome Or Cer
    Honed Tube: 20-2000mm, Heat Treatment, Honing, Rolling Working Method: Straight Trip

    Double Acting Telescopic Vertical​ Leg Outrigger Hydraulic Lift Cylinder



    Application: Sanitation vehicles, Stage vehicles, Cranes leg outrigger cylinder





    Sealing system Choose PARKER, MERKEL, NOK and other imports of high-end seal, combined with the company's unique sealing system design to prevent sand and dust, reduce oil leakage, access to the best piston rod film.
    Cylinder Cylinder body made according to suitable strength and size, the inner surface of which is processed by rolling to improve the surface hardness and abrasion resistance while ensuring the dimensional accuracy and roughness.
    Piston rod based on high-frequency quenching, has been coated with a hard chrome surface to improve rust, abrasion and damage resistance. Surfaces obtained after precision polishing have a uniform texture and high finish to ensure Good surface oil film, improve product life.
    Buffer / Safety Functions Built-in cushioning mechanism that absorbs impact at the stroke end, as required, and also allows easy installation of various valves with functions such as slow return, balance and emergency shutdown.



    Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.



    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:

    • Bore diameter;

    • Rod diameter;

    • Stroke;

    • Working pressure;

    • Front and back end mount type;

    • Using frequency;

    • Work Environment;





    Quality control

    • All specification is designed by professional engineer
    • All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
    • All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
    • Ensure goods can arrive at customer safely
    • One year warranty and life long time follow up service is offered to solve any problems you met when use our products

    FAQ

    Q1. What are your cylinder advantages?
    A: 1. Rod are chrome plated.
    2. Tubes are quenched and tempered.
    3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
    4. Good quality yet lower price.

    Q2: Are you a manufacture or a trade company?
    A: Manufacture, we are the leader manufacturer of hydraulic industry in China with experience and technology accumulation. With strong technical team we could solve any annoyance of you.

    Q3: Do you have quality control system?
    A: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.

    Q4: Can you tell me the price for the cylinder?
    A. 1. Please advice the drawing with technical requirement.
    2. Please advice the model No. after you check our booklet.
    3. Please advice the tipping capacity, number of stages, closed length, mounting type and size.
    4. Please also help advice the quantities, this is very important.

    Q5: Do your products come with a warranty?
    A: Yes, we have 12 months warranty. In this year, if the quality problem we will free repair for you.





    Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder

    Double Acting Telescopic Vertical Leg Outrigger Hydraulic Lift Cylinder
