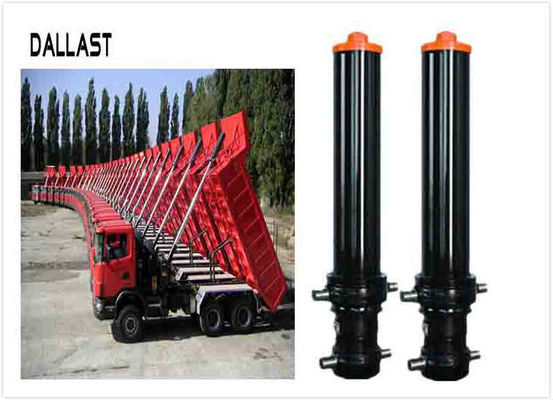

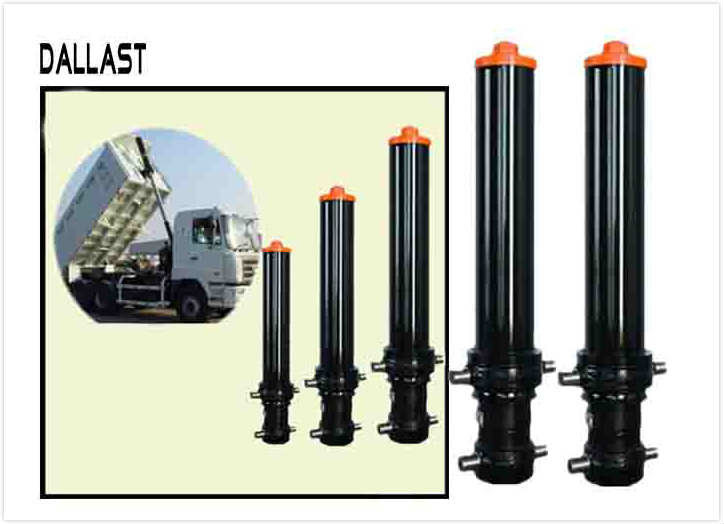

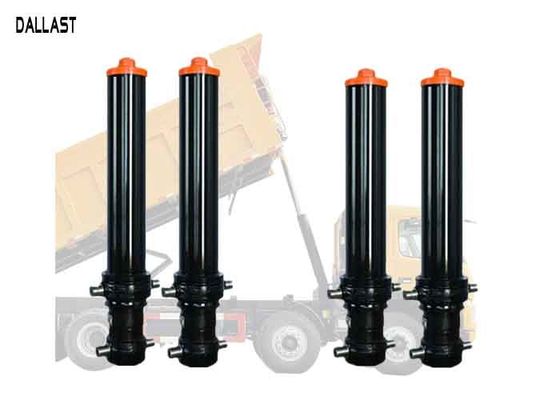

OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size

OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size

    • OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
    • OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
    • OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
  • OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: Normal Pressure Temperature: -30℃~90℃
    Rod Diameter: Custom Function: Truck Lift, Hydraulic Tilt Cylinder
    Material: Stainless Steel, Steel, Etc. Cylinder Tube: Custom

    OEM Single Acting Hydraulic Lift Cylidner 3 4 5 Stages FC 8 Foot 48 Inch Bore Size



    Features:

    Choice of Mounting Styles, Cross Tube or Trunnion

    Hard Chrome Plated Stages

    Piston Ø: customized

    Piston rod Ø: customized

    Max. stroke speed: according to the product types

    We use hard chromed rods (other options are available)



    FC Type Hydraulic Cylinder
    MODEL NO Stage

    Largest Stage

    Diameter

    Stroke The largest sleeve OD Mounting distance
    (mm) (mm) (mm) (mm)
    FC-3-110-3205 3 110 3205 168 343
    FC-3-129-3880 3 129 3880 218 343
    FC-3-129-4270 3 129 4270 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-5180 4 129 5180 218 343
    FC-5-191-7630 5 191 7630 274 343
    FC-5-191-8130 5 191 8130 274 343
    FC-5-191-9030 5 191 9030 274 343
    FC-5-191-9530 5 191 9530 274 343
    FC-5-214-7610 5 214 7610 274 343



    Tips:

    In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.

    We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the

    drawings and tell us the details.



    Application:

    Can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.



    Advantdges:

    Big lifting force; Higher efficiency; Stronger weather resistance; Better performance

    the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement

    The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections

    Warranty: We offer 12 months warranty



    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details



    OEM Single Acting Hydraulic Ram 3 4 5 Stages FC 8 Foot 48 Inch Bore Size
