|Place of Origin:||Qingdao, China|
|Certification:||GS, RoHS, CE, ISO9001|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||wooden case, carton box|
|Delivery Time:||15-25 work days per year|
|Payment Terms:||T/T, Western Union, D/P, D/A, L/C|
|Supply Ability:||50000 pieces|
|Piston Rod Ø:||Custom||Function:||Truck Lift, Hydraulic Tilt Cylinder|
|Material:||Steel, Etc.||Type:||Telescopic Hydraulic Cylinder|

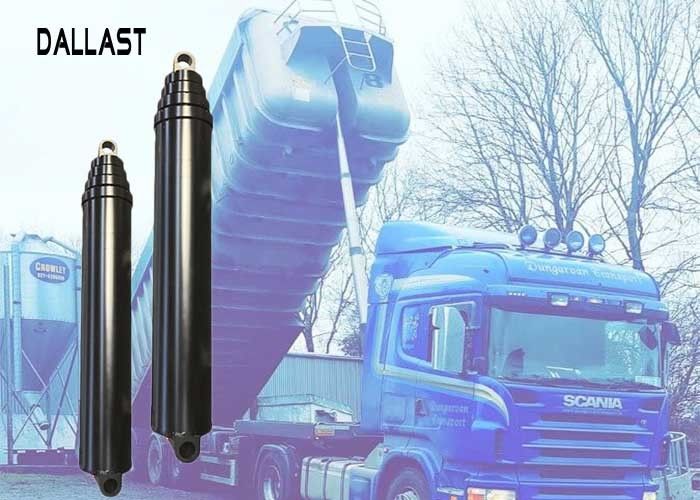

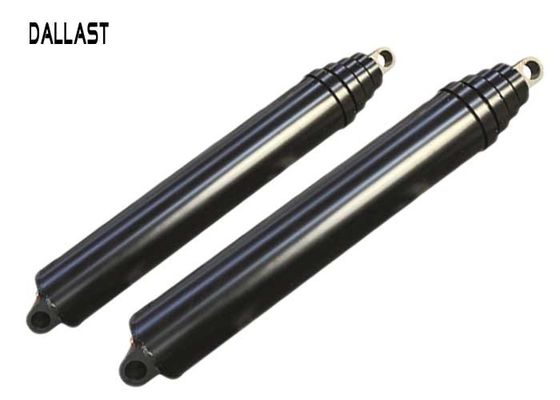

Single Acting Long Stroke Telescopicing Hydraulic Cylinder for Tipper Front Lifting
|Stage||Stroke(A)||Closed Length(B)||Open Length(C)|
|S53DC-66-72||3TG F5*72||5"||3||72"(1829mm)||37.19" (945mm)||109.19" (2773mm)|
|S53DC-66-84||3TG F5*84||5''||3||84" (2134mm)||41.19" (1046mm)||125.19" (3180mm)|
|S53DC-65-107||3TG F5*107||5"||3||107.56" (2732mm)||48.38" (1229mm)||155.94" (3961mm)|
|S53DC-65-126||3TG F5*126||5"||3||126.63" (3216mm)||54.56" (1386mm)||181.19" (4602mm)|
|S63DC-101-86||3TG F6*86||6"||3||86.75" (2203mm)||40.88" (1038mm)||127.63" (3241mm)|
|S63DC-101-104||3TG F6*104||6"||3||103.94" (2640mm)||47" (1194mm)||150.94" (3834mm)|
|S63DC-101-107||3TG F6*107||6"||3||107.56" (2732mm)||48.38" (1289mm)||155.94" (3961mm)|
|S63DC-97-111||3TG F6*111||6''||3||111" (2819mm)||49.94" (1268mm)||160.94" (4087mm)|
|S63DC-102-120||3TG F6*120||6''||3||120" (3048mm)||53.5" (1359mm)||173.5" (4407mm)|
Choice of Mounting Styles, Cross Tube or pin eye
Hard Chrome Plated Stages
Piston Ø: customized
Piston rod Ø: customized
Max. stroke speed: according to the product types
We use hard chromed rods (other options are available)
We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the
drawings and tell us the details.
Can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.
Big lifting force; Higher efficiency; Stronger weather resistance; Better performance.
the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.
The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.
Warranty: We offer 12 months warranty.
Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc.
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
5. Service Center all over the world for after sales problems.
In order to tilt a dump truck to angles of 60Â° or more, telescopic cylinders with strokes approaching the total bed length are required.
