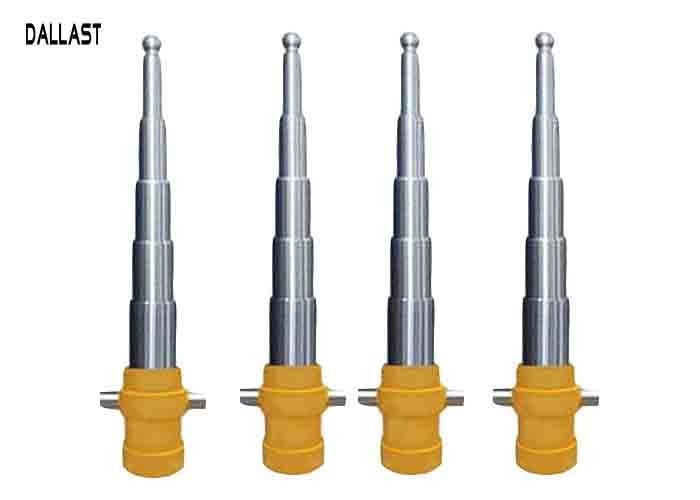

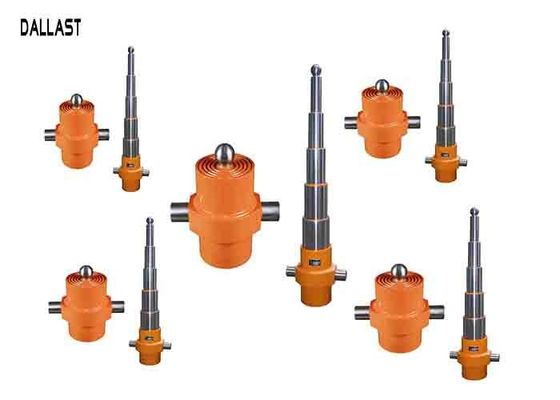

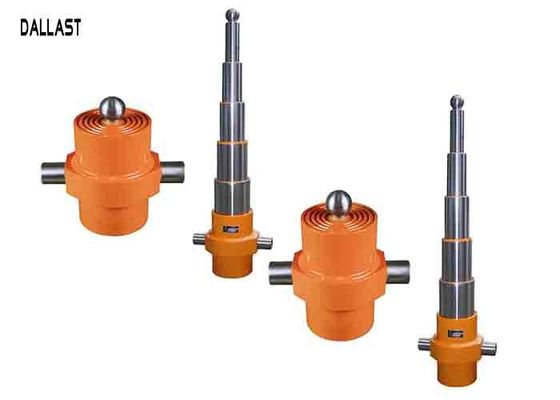

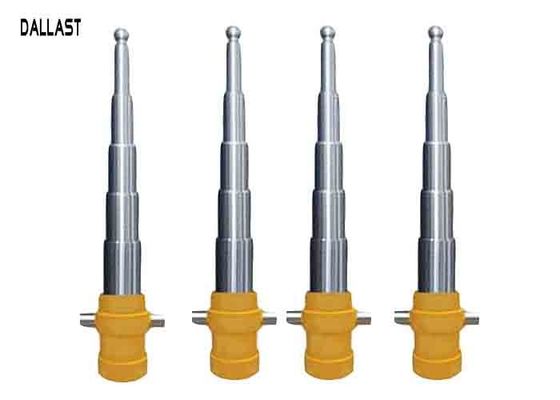

Multi Stage Garbage Truck Hydraulic Cylinders Single Acting Telescoping

Multi Stage Garbage Truck Hydraulic Cylinders Single Acting Telescoping

    • Multi Stage Garbage Truck Hydraulic Cylinders Single Acting Telescoping
    • Multi Stage Garbage Truck Hydraulic Cylinders Single Acting Telescoping
    • Multi Stage Garbage Truck Hydraulic Cylinders Single Acting Telescoping
  • Multi Stage Garbage Truck Hydraulic Cylinders Single Acting Telescoping

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Design: Telescoping Cylinder Pressure: 30-350 Bar
    Temperature: Normal Temperature Bore Size: Custom
    Stage: 5 Stasge Stage Painted: Custom

    Hydraulic Multi Stage 5 Stage Lift Cylinder for Garbage Truck Single Acting Telescoping


    Single-acting cylinders transfer force and motion in one direction only.

    Benefits:
             When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement. Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.



           Piston rod: All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application.



            Application:dump trailers; aerial trucks; lift tables and the list goes on...

    Features:
    Structure Single acting cylinders
    Stage 3~5 stage cylinder
    Max inner tube 170mm,180mm,195mm,200mm,210mm,etc
    Mounting distance 325mm/345mm/425mm or as customers’ requirements
    Stroke 750mm-7200mm
    Tipping weight 6-40Ton
    Seal type Parker,NOK, BUSAK or as customer's requirement
    Piston rod Chrome or nickel plated,ground & polished piston rod
    Pressure range Could be customized
    Piston Ø Customized
    Piston rod Ø Customized
    Mounting types Customized
    Max. stroke speed According to the product types
    Main characteristics:
    A. Small space occupation
    B. Pre-assembled structure makes installation easier
    C. Hydraulic overloading protection available



    Packing:

    1. Goods are packed with export standing standard.

    2. It includes pallets, suitable carton size, steel box.

    3. iron case,paper box,plywood box or according to the requirements of customers.



    Delivery:

    1.We export from Qingdao port by sea.

    2. Goods will be delivered on time.

    3. Goods can arrive at the destination safely.



    Quality control:
             Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation.Snap on glass filled bearings that absorb contaminants without damaging cylinder walls. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing nuts backing off.

    The most common problems when selecting a hydraulic cylinder are as follows:
    A. Retract dimension (Center of pin to center of pin)
    B. Stroke length (Inches)
    C. Mounting types
    D. Port Size and Type (SAE or NPT)
    E. Pressure rating (PSI)
    F. Bore Diameter (Inches)
    G. Application details



    Multi Stage Garbage Truck Hydraulic Cylinders Single Acting Telescoping



    FAQ:

    Why choose us?

    1.Competitive prices based on good quality

    2.Various style for completely series hydraulic products for you to choose

    3.Good before-after service; one year warranty

    4. Low price

    5. OEM&ODM accepted

    6. Fast delivery
