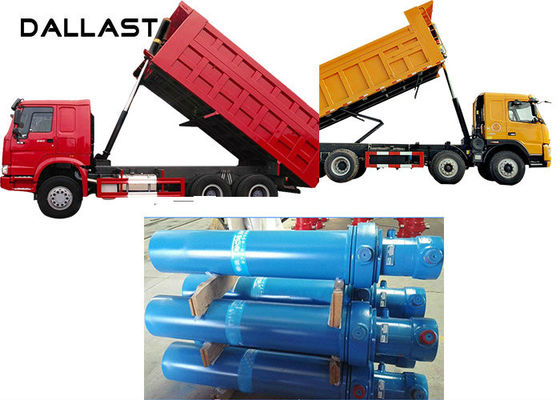

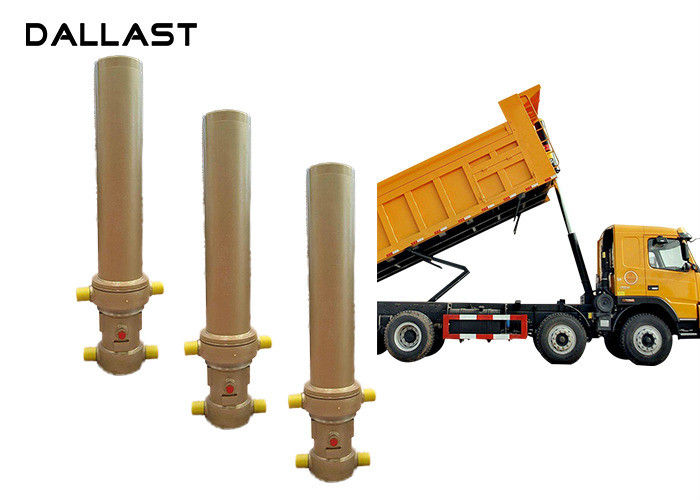

Telescopic One Way Hydraulic Cylinder Dumper Tipper Trailer TS16949 Certification

Telescopic One Way Hydraulic Cylinder Dumper Tipper Trailer TS16949 Certification

    • Telescopic One Way Hydraulic Cylinder Dumper Tipper Trailer TS16949 Certification
    • Telescopic One Way Hydraulic Cylinder Dumper Tipper Trailer TS16949 Certification
  • Telescopic One Way Hydraulic Cylinder Dumper Tipper Trailer TS16949 Certification

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Standard: Sdandard,Nonstandard Model: Single Acting Hydraulic Cylinder
    Structure: Telescoping Sleeve Cylinder Stage: Multi Stage,3 4 5 Stage
    Coating: Chrome Lifting: 13 - 90 Ton
    Working Method: Straight Trip Oil Port: 1"SAE

    Telescopic One Way Custom Design Dumper Tipper Trailer Hydraulic Lift Cylinder



    Hydraulic cylinders introductions:


    1. Seals:Parker/Nok/Hallite/Taiwan ;
    2. Rod :Chrome plated and quenched.Has good mechanical properties, long service life;

    3. Material:Alloy steel,Carbon steel,Stainless steel,27SiMn
    4. Cylinder:Honing machining /boring /rolling;
    5. Ballblast for paint ;
    6. Short Delivery Time ;
    7. Warranty:One year;



    Cylinder Advantages:



    • Professional manufacturer& supplier of Hydraulic Cylinders
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
    • Experience in export North America, Australia, Asia, Middle East, Africa;
    • Hydraulic Cylinders can be Make according to client's requirements;
    • The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;

    We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.

     Quality control

    • All specification is designed by professional engineer
    • All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
    • All material is processed by skilled workers and advanced CNC lathe
    • All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
    • Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely

    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:

    • Bore diameter;

    • Rod diameter;

    • Stroke;

    • Working pressure;

    • Front and back end mount type;

    • Using frequency;

    • Work Environment;

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.


    Model Lifting Pressure Bore Dia Closed length Mounting distance
    (t) (Mpa) (mm) (mm) (mm)
    FC-4TG-E158x4280 31.4 16 158/136/115/95 1450 343
    FC-5TG-E158x4280 31.4 16 158/136/115/95/75 1195 343
    FC-4TG-E166x4280 34.6 16 166/141/115/95/75 1450 343
    FC-4TG-E166x5390 34.6 16 166/141/115/95/75 1725 343
    FC-4TG-F181x4280 51.4 20 181/158/136/115 1460 343
    FC-4TG-F181x4650 51.4 20 181/158/136/115 1555 343
    FC-4TG-F181x5000 51.4 20 181/158/136/115 1645 343
    FC-4TG-F181x5390 51.4 20 181/158/136/115 1740 343
    FC-4TG-F181x5790 51.4 20 181/158/136/115 1820 343
    FC-5TG-F181x4280 51.4 20 181/158/136/115/95 1195 343
    FC-5TG-F181x5000 51.4 20 181/158/136/115/95 1355 343
    FC-5TG-F181x5390 51.4 20 181/158/136/115/95 1455 343
    FC-5TG-F181x5700 51.4 20 181/158/136/115/95 1500 343
    FC-4TG-F191x4650 57.3 20 191/166/141/115 1560 343
    FC-4TG-F191x5000 57.3 20 191/166/141/115 1645 343
    FC-4TG-F191x5390 57.3 20 191/166/141/115 1740 343
    FC-4TG-F191x6000 57.3 20 191/166/141/115 1890 343
    FC-4TG-F191x4650 57.3 20 191/166/141/115 1555 343
    FC-4TG-F206x6000 66.6 20 206/181/158/136 1900 343
    FC-5TG-F206x6180 66.6 20 206/181/158/136/115 1630 343





    FC Type Hydraulic Cylinder
    Model Lifting capacity(Ton) Rated pressure(Mpa) Bore diameter
    (mm)

    FC 4TG-E152*4280ZJ
    28.3 16 158/136/115/95
    FC 5TG-E152*4280ZJ 28.3 20 158/136/115/95/75
    FC 4TG-E160*5390ZJ 32.2 20 166/141/115/95/75
    FC 4TG-F175*4280ZJ 49 20 181/158/136/115
    FC 4TG-F175*5390ZJ 49 20 181/158/136/115
    FC 4TG-F175*5700ZJ 49 20 181/158/136/115
    FC 5TG-F175*5390ZJ 49 20 181/158/136/115/95
    FC 5TG-F175*5700ZJ 49 20 181/158/136/115/95
    FC 4TG-F185*4650ZJ 54.8 20 191/166/141/115
    FC 4TG-F185*5000ZJ 54.8 20 191/166/141/115
    FC 4TG-F185*5700ZJ 54.8 20 191/166/141/115
    FC 4TG-F185*6180ZJ 54.8 20 191/166/141/115
    FC 5TG-F185*5000ZJ 54.8 20 191/166/141/115/95
    FC 4TG-F200*6000ZJ 64 20 206/181/158/136
    FC 5TG-F200*6500ZJ 64 20 206/181/158/136/115
    FC 4TG-F175*4280BH 49 20 181/158/136/115
    FC 4TG-F175*4650BH 49 20 181/158/136/115
    FC 4TG-F175*5390BH 49 20 181/158/136/115
    FC 4TG-F185*5700BH 54.8 20 191/166/141/115
    FC 4TG-F185*6000BH 54.8 20 191/166/141/115
    FC 4TG-F185*6180BH 54.8 20 191/166/141/115
    FC 4TG-F200*6000BH 64 20 206/181/158/136
    FC 4TG-F175*4280JT 49 20 181/158/136/115
    FC 4TG-F175*4650JT 49 20 181/158/136/115
    FC 4TG-F175*5390JT 49 20 181/158/136/115
    FC 4TG-F200*5700JT 64 20 206/181/158/136
    FC 4TG-F200*6180JT 64 20 206/181/158/136
    FC 4TG-F175*4450HT 49 20 181/158/136/115
    FC 5TG-F200*6180AF 64 20 206/181/158/136/115

    FE Type Hydraulic Cylinder
    Model Lifting capacity Rated pressure Bore diameter Stroke Mounting distance
    (Ton) (MPa) (mm)
    FE-3-E158*3880 31.4 16 158/136/115 3880 1697
    FE-3-E158*4090 31.4 16 158/136/115 4090 1732
    FE-4-E158*4280 31.4 16 158/136/115/95 4280 1345
    FE-4-E158*4650 31.4 16 158/136/115/95 4650 1546
    FE-4-E158*4940 31.4 16 158/136/115/95 4940 1529
    FE-4-F175*4280 48 20 175/158/136/115 4280 1345
    FE-4-F175*4620 48 20 175/158/136/115 4620 1479
    FE-4-F175*5180 48 20 175/158/136/115 5180 1604
    FE-5-F175*5780 48 20 175/158/136/115/95 5780 1559
    FE-5-F175*6180 48 20 175/158/136/115/95 6180 1505
    FE-6-F175*6060 48 20 175/158/136/115/95/70 6060 1240
    FE-5-F200*6180 62.8 20 200/175/158/136/115 6180 1527
    FE-5-F200*6350 62.8 20 200/175/158/136/115 6350 1673
