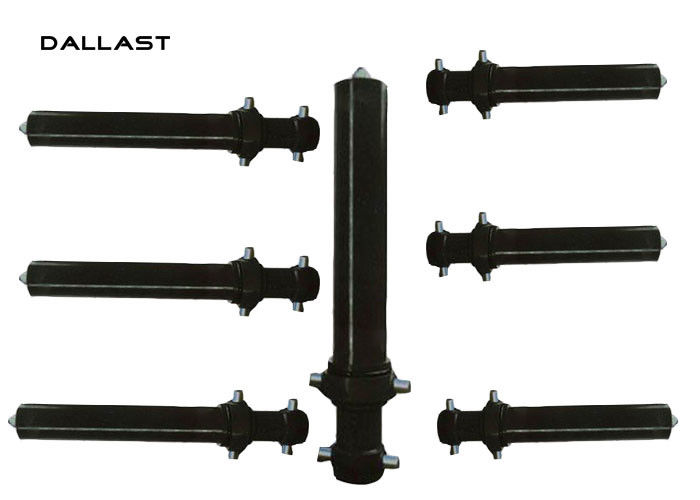

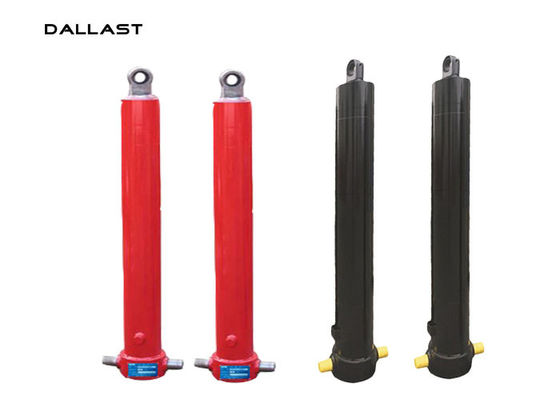

24 Inch Large Bore Multi Stage Hydraulic Cylinder Single Acting ISO 9001 Certification

24 Inch Large Bore Multi Stage Hydraulic Cylinder Single Acting ISO 9001 Certification

    • 24 Inch Large Bore Multi Stage Hydraulic Cylinder Single Acting ISO 9001 Certification
    • 24 Inch Large Bore Multi Stage Hydraulic Cylinder Single Acting ISO 9001 Certification
    • 24 Inch Large Bore Multi Stage Hydraulic Cylinder Single Acting ISO 9001 Certification
  • 24 Inch Large Bore Multi Stage Hydraulic Cylinder Single Acting ISO 9001 Certification

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Factory Visit: Available Capacity: OEM,ODM,Sample
    Extended Stages: 3-7 Stages Material: 27 Simn, 45# Steel
    Model: Telescopic Hydraulic Cylinder Pressure Direction: Single Acting Hydraulic Cylinder

    24 Inch Large Bore Multi Stage Single Acting Hydraulic Cylinder Manufactures



    Model Stage Lifting capacity Rated pressure Bore diameter
    FE-3-E158*3880 3 28.3Ton 16MPa 158/136/115mm
    FE-3-E158*4090 3 28.3Ton 16MPa 158/136/115mm
    FE-4-E158*4280 4 28.3Ton 16MPa 158/136/115/95mm
    FE-4-E158*4650 4 28.3Ton 16MPa 158/136/115/95mm
    FE-4-E158*4940 4 28.3Ton 16MPa 158/136/115/95mm
    FE-4-E175*4280 4 49Ton 16MPa 175/158/136/115mm
    FE-4-E175*4620 4 49Ton 16MPa 175/158/136/115mm
    FE-4-E175*5180 4 49Ton 16MPa 175/158/136/115mm



    MODEL NO. First Stage Diameter Stroke Closed length Mounting distance
    FC-4-126-4145 126 mm 4145 mm 1357 mm 343 mm
    FC-4-126-4345 126 mm 4345 mm 1407 mm 343 mm
    FC-4-126-4545 126 mm 4545 mm 1457 mm 343 mm
    FC-4-126-4745 126 mm 4745 mm 1507 mm 343 mm
    FC-4-126-4945 126 mm 4945 mm 1557 mm 343 mm
    FC-4-126-5145 126 mm 5145 mm 1607 mm 343 mm
    FC-3-145-3230 145 mm 3230 mm 1403 mm 343 mm
    FC-3-145-3680 145 mm 3680 mm 1553 mm 343 mm
    FC-3-145-3830 145 mm 3830 mm 1603 mm 343 mm



    Hydraulic Cylinder

    Owing to profound experience of the industry, we are engaged in offering a wide gamut of Hydraulic Cylinder. These cylinders are manufactured using high grade raw material which we source from reliable vendors of the market. All the cylinders offered by us are widely used in various industries for their high durability. Further, a team of diligent experts makes sure that only high-quality material is delivered at clients’ location within the committed time.





    We are manufacturing various kinds of hydraulic cylinders like:
    Double Acting Hydraulic cylinders

    Single Acting Hydraulic Cylinder
    Telescopic Cylinders
    Mobile Hydraulic cylinders

    This product is used in numerous application including:
    Earth moving equipment, Drilling Rigs, Road and Construction equipment’s, Cranes, Material handling equipment’s, Mining Equipment’s, Plastic Mold Machine, Cement Factories, Special Purpose Cylinder





    Custom Hydraulic Cylinder

    We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:

    diameter of bore & rod

    stroke

    mounting style

    mounting distance

    working pressure

    ports

    seals

    special modifications.

    Widespread Application

    We specialize in design and manufacture hydraulic cylinders that are used in a variety of fields including:

    Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane etc.

    Metallurgical Machinery cylinders for: decelerator, tile press etc.

    Mining Machinery cylinders for: crasher, coal cutter etc.

    Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.





    FAQ:

    1. How do I measure a cylinder?

    Measure the pin to pin length when the cylinder is fully extended and fully retracted, measure the diameter of the rod, the bore of the cylinder will typically measure 1/4" - 1/2" less than the outer diameter of the barrel, also determine the type and size of the ports. Finally, determine the type and size of the end mounts.



    2. How does a displacement cylinder work?

    In a displacement (single acting) cylinder the rod is extended by flowing pressurized oil behind the rod,

    which forces the rod out of the barrel like a piston. Once the pressure is released, the load on the

    cylinder retracts the rod. The diameter of the rod is the effective piston area.



    3. How much force does my cylinder have?

    Force is determined by multiplying the area of the piston by the pressure (PSI).(r2 x p x PSI)



    24 Inch Large Bore Multi Stage Hydraulic Cylinder Single Acting ISO 9001 Certification





    Contact Details
    Shenzhen Dallast Technology Co., Ltd.

    Contact Person: Ady

    Send your inquiry directly to us (0 / 3000)
