Dump Truck Multi Stage Hydraulic RAM Cylinder Eamless Steel Pipe With Piston Eye

Dump Truck Multi Stage Hydraulic RAM Cylinder Eamless Steel Pipe With Piston Eye

    • Dump Truck Multi Stage Hydraulic RAM Cylinder Eamless Steel Pipe With Piston Eye
    • Dump Truck Multi Stage Hydraulic RAM Cylinder Eamless Steel Pipe With Piston Eye
    • Dump Truck Multi Stage Hydraulic RAM Cylinder Eamless Steel Pipe With Piston Eye
  • Dump Truck Multi Stage Hydraulic RAM Cylinder Eamless Steel Pipe With Piston Eye

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Factory Visit: Available Service: Good After Service
    Standard: Standard Body Material: 45# Seamless Steel Pipe/27SiM
    Seals: PARKER Model Number: Customization
    Working Medium: Hydraulic Oil Cylinder Diameter: 80 Mm
    High Light:

    multi stage hydraulic ram

    ,

    hollow hydraulic cylinder

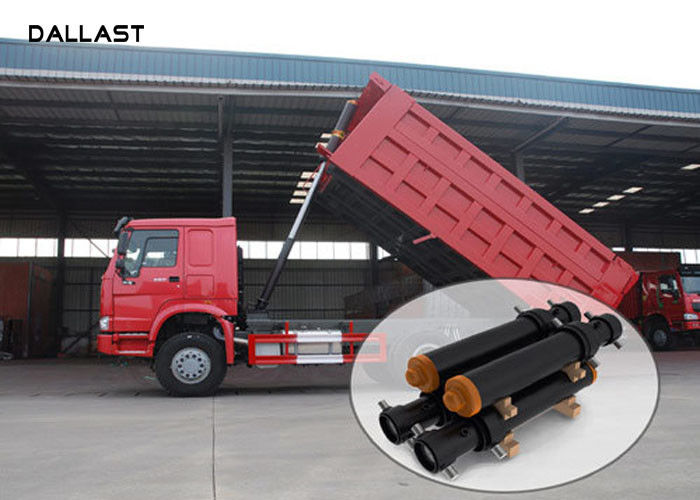

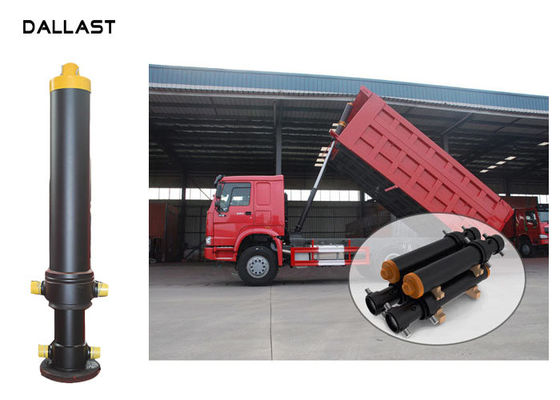

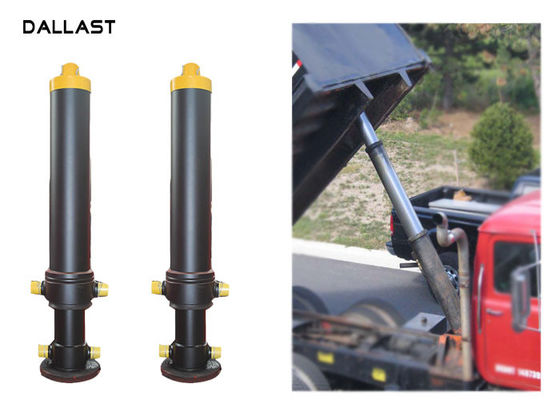

    Front-End Telescopic Hydraulic Cylinder with Piston Eye for Dump Truck



    Specification Description

    Material Carbon steel, Alloy steel, 27SiMn
    Honed tube 50-280mm, Heat treatment, honing, rolling
    Piston rod 50-240mm ,tempering, plated nickel, Chrome or ceramic
    Working Pressure 16-20Mpa
    Seals Parker, Merkel, Hallite,Kaden
    Technology Bosch Rexroth, Parker, HYVA, Meiller
    Coating Sandblasting, primer paint, middle paint, finish paint
    Temperature range -30°C to +100°C
    Work medium Hydraulic Oil
    Piston speed maximum 0.5m/s
    Mounting style Earrings, flange, foot mounting, screw thread.


    Advantage
    1. Professional, skilled, reliable.
    2. One-stop total solution
    3. Ready stock goods with fast delivery
    4. Customizable: Non-standard sizes are also available
    5. Small quantity is acceptable
    6. Refund or replacement for any product faulty



    Dream

    Company vision: Act as the laeder of internal hydraulic industry

    Enterprise concept: Better and stronger

    Core values: Learning and innovation,equality and justice,customers the first,and quality winning the world

    Enterprise spirit: Complete sincerity,complete precision more excellent,and up to date

    Quality policy: Pursue zero defects of our products,and realize zeo customers' complains

    Company type: Respond quickly,act immediately,finish what to do today,and improve day after day



    Front end hydraulic cylinder common problem:

    First, the fuel tank leakage or leakage

    1. serious overload. Due to the internal sealing lip cylinder cannot withstand excessive pressure and leakage.

    2. Serious partial load

    3. The top of the cylinder is not installed vertically, the user caused by improper operation of the upper bracket deformation or displacement.

    4. User improper operation caused by cylinder deformation. Cabin in the lifting or lowering work violently shaking or overturning, so that the cylinder was a strong impact, causing the cylinder deformation or bending

    5. Barrel strain.

    6. due to unreasonable design, so that the top of the cylinder work, and the carriage interference caused by the cylinder strain

    7. Cylinder trunnion and bracket hole with the gap is too large (2 mm) caused by the top cylinder partial load caused by bar strain.

    8. Cylinder head nut loose caused by the top cylinder cover scratches the barrel caused by strain.



    Second, chaos cylinder (cylinder is not to lift)

    1. Improper operation caused by the user cylinder or cylinder deformation (overturn, cylinder by external impact, the use of emergency brake unloading, etc.)

    2. the cylinder bore internal fine particles produced after the arrest of the guide ring, causing chaos cylinder.



    Third, the cylinder rod out of line or stuck

    1. missing (welding) limit plate limit valve failure.

    2. Limit valve internal failure caused by cylinder out of line.

    3. To improve the trip, the user adjusts the limit valve stem without permission, causing the limit valve failure caused by dislocation of the cylinder rod or stuck.

    4. Limit valve stem cannot return caused by fuel tank stuck.

    Limit valve is to control the normal use of key components of the cylinder, once the failure, most likely to cause very serious consequences, can be summarized as: small parts, major faults. Please pay attention to the installation of parts inspection, and guide the user to use the proper maintenance.





    Dump Truck Multi Stage Hydraulic RAM Cylinder Eamless Steel Pipe With Piston Eye
