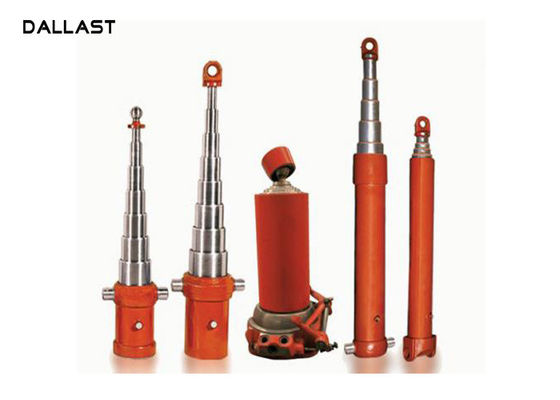

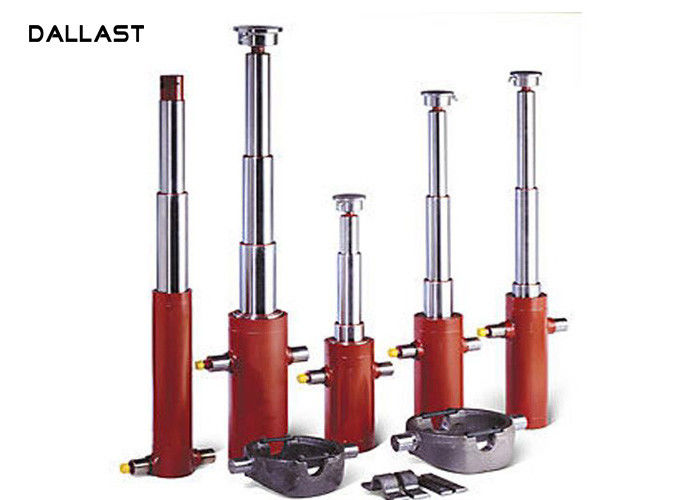

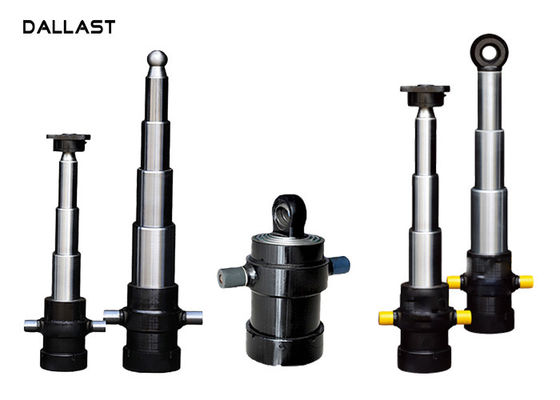

Single Acting Multi Stage Telescopic Hydraulic Cylinder Anti Rust Painting Trademark

Single Acting Multi Stage Telescopic Hydraulic Cylinder Anti Rust Painting Trademark

    • Single Acting Multi Stage Telescopic Hydraulic Cylinder Anti Rust Painting Trademark
    • Single Acting Multi Stage Telescopic Hydraulic Cylinder Anti Rust Painting Trademark
    • Single Acting Multi Stage Telescopic Hydraulic Cylinder Anti Rust Painting Trademark
  • Single Acting Multi Stage Telescopic Hydraulic Cylinder Anti Rust Painting Trademark

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Factory Visit: Available Color: As Customer's Requirement
    Body Material: 45# Seamless Steel Pipe/27SiM Work Temperature: Normal Temperature
    Material: Hard Chrome Piston Rod Trademark: Anti Rust Painting
    Roundness: Rz0.2~0.4 / Ra0.1Max Shaft Diameter: Optional

    Single Acting Multistage Telescopic Hydraulic Cylinder for Dump Truck/Trailer

    Model

    Rated pressure

    MPA

    Bore diameter

    mm

    Installation distance mm Lift (Ton) Stroke mm
    4TG-E180*800 16 180 140 40 800
    4TG-E160*800 16 160 140 32 800
    4TG-E150*830 16 150 160 28 830
    4TG-E140*800 16 140 140 25 800
    4TG-E140*730 16 140 140 25 730
    4TG-E135*800 16 135 140 23 800
    4TG-E135*730 16 135 140 23 730
    4TG-E130*750 16 130 110 21 750
    3TG-E150*800 16 150 140 28 800
    5TG-E130*750 16 130 140 21 750
    3TG-E130*900 16 130 140 21 900
    4TG-E110*1360 16 110 140 15 1360
    3TG-E110*1530 16 110 140 15 1530
    3TG-E110*1350 16 110 140 15 1350
    3TG-E110*1020 16 110 140 15 1020
    3TG-E110*900 16 110 260 15 900
    2TG-E110*1020 16 110 140 15 1020
    3TG-E90*1155 16 90 140 10 1155
    3TG-E90*1020 16 90 140 10 1020
    3TG-E90*900 16 90 260 10 900
    3TG-E90*750 16 90 140 10 750
    2TG-E90*900 16 90 140 10 900
    2TG-E90*600 16 90 260 10 600
    2TG-E90*500 16 90 260 10 500
    3TG-E70*750 16 70 140 6 750





    Parameter:

    Application Various Machinery
    Material of cylinder tube Stainless Steel, Alloy Steel
    Coating All tubes are chromeplated
    Working pressure 5MPa-32MPa
    Bore size 40mm-800mm
    Color Any color
    Mouting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001:2008, SGS, TS16949
    Warranty One year
    Working temperature -30° C to 80°C
    Model No Could be designed
    Stroke 100-10000mm
    Package Shrink film, pallet, plywood case, carton box
    Main export market USA, Canada, South Korea, Russia, Australia, Malaysia, Fiji Island, Kenya, Philippines, Singapore
    Payment terms T/T, L/C, D/A, D/P AND SO ON
    Delivery time 15-25 days after down payment



    Why Choose Us:

    1. Raw Material: We use owning forging piece as our raw material.

    2. Non-standard design: We can have customized for customers non-standard hydraulic cylinder, hydraulic system and other mechanical parts.

    3. Genuine product with excellent quality: We guarantee the product quality

    4. Price: The price of the product is reasonable

    5. Delivery: We provide the just-in-time delivery to insure customer satisfaction

    6. Management idea: Do be honesty, make profit with justice, thriving company with virtue.



    Technical Skills:

    The welds are done fully automated for consistency and integrity. With lean welding craft for creating the strong joint strength and eliminating the defect. The welds are defected by certified method like Dye Penetrant Ultrasonic.

    The rod is induction hardened prior to chrome plating, which prevent the rod from bending and scratching. The rod remains rustles over 100hours under salt spray test.

    The tube is skived burnished for the straightness and concentricity, the superior finish bring better sealing and longer life.



    Quanlity Control:

    We have Strict quality management system. Each hydraulic cylinder is high quality product.

    1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection.

    2. Process Inspection: First Inspection, Random Inspection, Handover Inspection.

    3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test.



    Single Acting Multi Stage Telescopic Hydraulic Cylinder Anti Rust Painting Trademark
