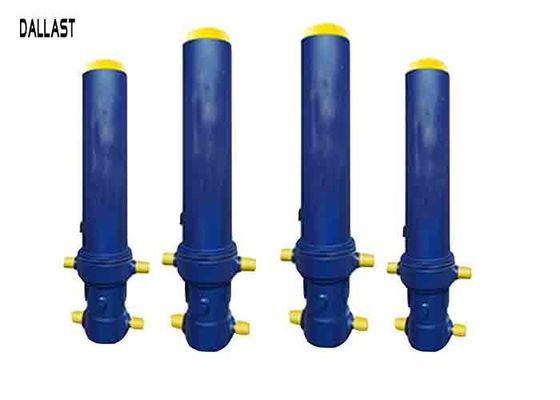

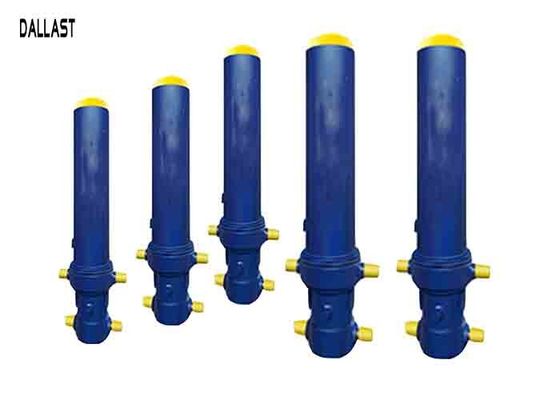

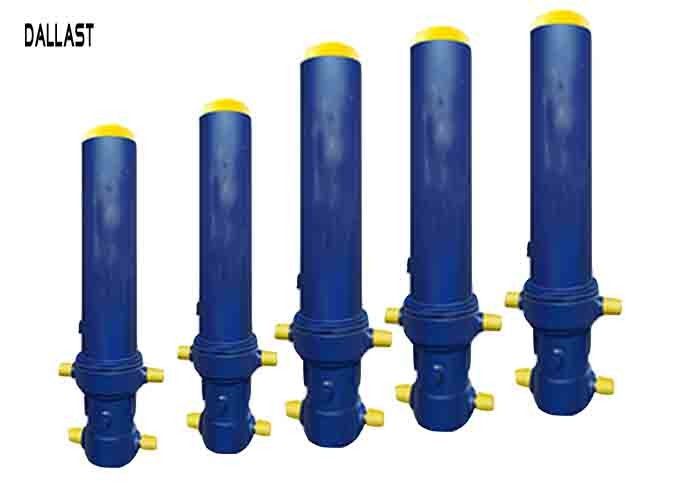

Standard Hydraulic Lift Cylinder Chrome 13-90 tons for Truck Lifting

Standard Hydraulic Lift Cylinder Chrome 13-90 tons for Truck Lifting

    • Standard Hydraulic Lift Cylinder Chrome 13-90 tons for Truck Lifting
    • Standard Hydraulic Lift Cylinder Chrome 13-90 tons for Truck Lifting
    • Standard Hydraulic Lift Cylinder Chrome 13-90 tons for Truck Lifting
  • Standard Hydraulic Lift Cylinder Chrome 13-90 tons for Truck Lifting

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Pressure: Normal Pressure Temperature: Normal Temperature
    Capacity: 13-90 Tons Rod Diameter: Custom
    Structure: Single Acting Function: Truck Lift, Hydraulic Tilt Cylinder

    Standard Hydraulic Lift Cylinder Multi Stage Single Acting Chrome for Truck Lifting



    Advantdges:

    Higher efficiencyStronger weather resistanceBetter performance.

    Choice of Mounting Styles; Cross Tube or Trunnion; Hard Chrome Plated Stages; Big lifting force.



    The number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections.



    Application: Can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder. In order to tilt a dump truck to angles of 60° or more, telescopic cylinders with strokes approaching the total bed length are required.



    Warranty: We offer 12 months warranty



    Features:

    pressure ranges: could be customized

    Piston Ø: customized

    Piston rod Ø: customized

    Max. stroke speed: according to the product types

    We use hard chromed rods (other options are available)



    Adopting latest technological development, we have been supplying a wide range of Hydraulic Cylinder for Trolley Tipper and dump trailer.



    standard product type stage

    pressure

    (Bar)

    stroke

    (mm)

    close length

    (mm)

    mounting distance

    (mm)

    3TG-E180*4210ZZ 3 160 4210 425 343
    4TG-E160*4130ZZ 4 160 4130 430 343
    4TG-E160*5150ZZ 4 160 5150 430 343
    4TG-E180*4000ZZ 4 160 4000 425 343
    4TG-E180*5390ZZ 4 160 5390 425 343
    3TG-E180*3850ZZ 3 160 3850 425 343
    4TG-E180*5390ZZ 4 160 5390 325 343
    5TG-E191*9530ZZ 5 191 9530 274 343
    5TG-E214*7610ZZ 5 214 7610 274 343
    5TG-E214*9030ZZ 5 214 9030 274 343



    We can OEM & ODM, if you are interested in our products, please feel free to contact us, send us the

    drawings and tell us the details.



    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension

    B. Stroke length

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating

    F. Bore Diameter

    G. Application details
