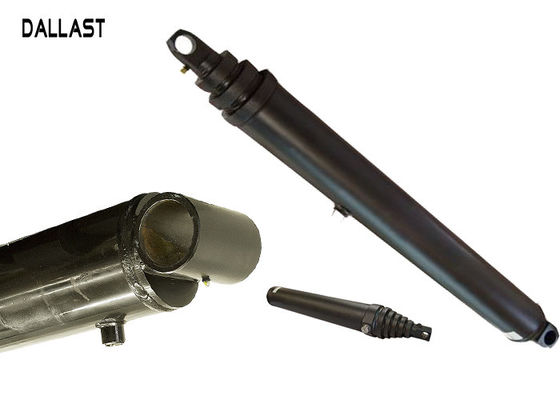

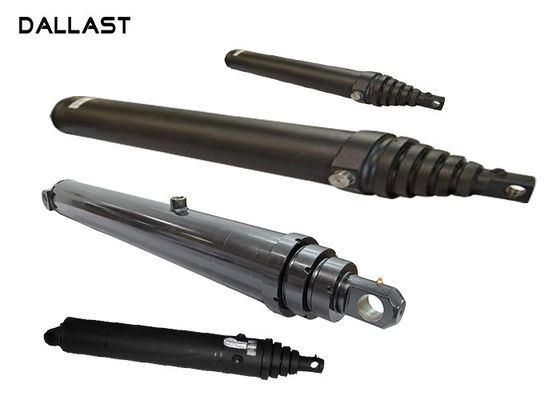

Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck

Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck

    • Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck
    • Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck
    • Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck
  • Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Alloy Steel Usage: Automation And Control
    Model No.: Customized Extended Stages: 3-7 Stages
    Working Medium: Hydraulic Oil Color: Any Color
    Shipping: By Boat Or Air Temperature: -30 To 80 ℃

    Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck​






    Telescopic Hydraulic Cylinder:

    We are known as the specialist in providing a wide variety of Telescopic Hydraulic Cylinder, which is known for high efficiency, durability, and performance. We offer these telescopic hydraulic cylinders in customized and standard specifications to our clients. Telescopic hydraulic cylinders are special designs of hydraulic cylinders that offer an exceptionally long productivity from a compact retracted length.

    Normally, collapsed length of our telescopic cylinders is 20 - 40% of fully extended length based on number of stages. Some of our telescoping cylinders are manufactured with a retracted length of less than 15 percent of overall total unit length. The ability to expand from a negligible retracted size makes our Telescopic Hydraulic Cylinders perfect for applications where the space constraints slow down the usage of conservative single-stage cylinders.

    Our welded construction of telescopic range of cylinders is designed for mainly heavy duty industrial services. Our many years of experience, along with a 100% product testing policy in line with ISO10100, makes us capable to provide reliable and high quality products available at short lead times and at very affordable prices. Our product line can be used for many different applications around the world as per our client’s particular requirements and needs.



    Special Features:

    Our factory produce hydraulic cylinder for more than 15 years with ISO 9001 certification.

    Our cylinders are widely used for different usage, such as agricultural machine, engineering machinery, garbage truck and tractor.

    Our factory own advanced processing equipment to guarantee high quality of our Hydraulic cylinder.

    Each parts would be measured and cleaned before assembling, after assembling, pressure test would be performed one by one with testing pressure of 30-50% higher than working pressure.

    We use steel or wooden boxes to packing hydraulic cylinder to avoid any damage during the transportation.


    Contact us, we will provide the best hydraulic cylinder solution for you.



    Reference Parameters:





    Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck



    Model

    Lifting

    (ton)

    Pressure

    (MPa)

    Bore Dia

    (mm)

    A

    (mm)

    B

    (mm)

    C

    (mm)

    D

    (mm)

    E

    mm)

    F

    (mm)

    L

    (mm)

    G

    (mm)

    H

    (mm)

    4TG-E152x4280ZJ 28.3 16 158/136/115/95 245 385 360 490 335 272 1450 195±10 420±10
    5TG-E152x4280ZJ 28.3 16 158/136/115/95/75 245 385 360 490 335 272 1195 195±10 420±10
    4TG-E160x4280ZJ 32.2 16 166/141/115/95/75 245 385 360 490 335 272 1450 195±10 420±10
    4TG-E160x5390ZJ 32.2 16 166/141/115/95/75 245 385 360 490 335 272 1725 195±10 420±10
    4TG-F175x4280ZJ 49 20 181/158/136/115 245 385 360 490 335 272 1460 195±10 420±10
    4TG-F175x4650ZJ 49 20 181/158/136/115 245 385 360 490 335 272 1555 195±10 420±10
    4TG-F175x5000ZJ 49 20 181/158/136/115 245 385 360 490 335 272 1645 195±10 420±10
    4TG-F175x5390ZJ 49 20 181/158/136/115 245 385 360 490 335 272 1740 195±10 420±10
    4TG-F175x5790ZJ 49 20 181/158/136/115 245 385 360 490 335 272 1820 195±10 420±10
    5TG-F175x4280ZJ 49 20 181/158/136/115/95 245 385 360 490 335 272 1195 195±10 420±10
    5TG-F175x5000ZJ 49 20 181/158/136/115/95 245 385 360 490 335 272 1355 195±10 420±10
    5TG-F175x5390ZJ 49 20 181/158/136/115/95 245 385 360 490 335 272 1455 195±10 420±10
    5TG-F175x5700ZJ 49 20 181/158/136/115/95 245 385 360 490 335 272 1500 195±10 420±10
    4TG-F185x4650ZJ 54.8 20 191/166/141/115 245 385 360 490 335 272 1560 195±10 420±10
    4TG-F185x5000ZJ 54.8 20 191/166/141/115 245 385 360 490 335 272 1645 195±10 420±10
    4TG-F185x5390ZJ 54.8 20 191/166/141/115 245 385 360 490 335 272 1740 195±10 420±10
    4TG-F185x6000BH 54.8 20 191/166/141/115 260 405 340 470 325 244 1890 215±10 420±10
    4TG-F185x4650HT 49 20 191/166/141/115 265 405 360 490 345 260 1555 215±10 420±10
    4TG-F200x6000HT 64 20 206/181/158/136 280 420 360 490 345 272 1900 230±10 420±10
    5TG-F200x6180AF 64 20 206/181/158/136/115 270 410 360 490 325 272 1630 220±10 420



    Cylinder and Cylinder of Advantages and Disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;


    FAQ:

    1. Does your products come with a warranty?
    Yes, we have one-year warranty. During the period, we can send you replacement free of charge if there is quality problem.



    2. Can I customize our products from your factory?
    Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.

    3. Can I get samples to test before starting cooperation?

    Of course, we would like to produce sample hydraulic cylinder for your confirmation.



    4. How many days will samples be finished?

    Generally, 5-7 days for samples making.

    5. I want to see your hydraulic cylinders, where is your factory?

    Our factory located in Qingdao City, Shandong Province.

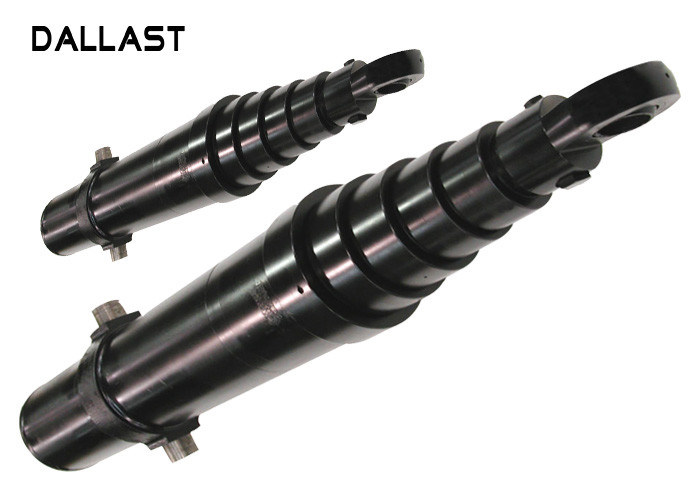

    Product Show:

    Single Acting Parker Pin Or Trunnion Mount Telescopic Hydraulic Cylinder for Dump Truck
