Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage

Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage

    • Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage
    • Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage
    • Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage
  • Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Model: Single Acting Hydraulic Cylinder Stage: 2 3 Stage
    Structure: One Way Telescopic Sleeve Cylinder Hydraulic Pressure: 16-21 Mpa
    Name: Hydraulic Rams Oil Cylinder Price For Sale Mounting Type: Middle-trunnion,Hinge Shaft Axis
    Plunger: 20#, 45# Steel With High Frequency Quenching Seal: Hallite,SKF,NOK,Guarnitec,Parker


    Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage


    Customized hydraulic cylinders for various strokes, detailed product catalogue,
    please send an email

    each stage:165/150/135/120/105/90/75/60/45mm
    Tipping Trailer Single Acting Hydraulic Telescopic Cylinder Chrome 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage

    FAQ:
    Q1: Are you a manufacture or a trade company?
    A: Manufacture, we are the leader manufacturer of hydraulic industry in China with experience and technology accumulation. With strong technical team we could solve any annoyance of you.


    Q2: Can you tell me the price for the cylinder?
    A. 1. Please advice the drawing with technical requirement.
    2. Please also help advice the quantities, this is very important.
    Q3: Do you have quality control system?
    A: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.
    Q4: Do your products come with a warranty?
    A: Yes, we have 12 months warranty. In this year, if the quality problem we will free repair for you.


    Q5: How about the delivery time?
    A: It depends on the ordering quantity. Generally, we will take 20-25 days. If there are any changes, we will inform you in time.

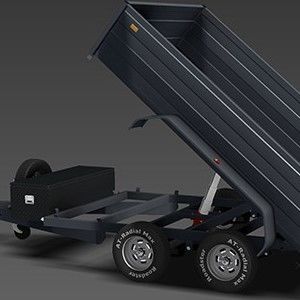

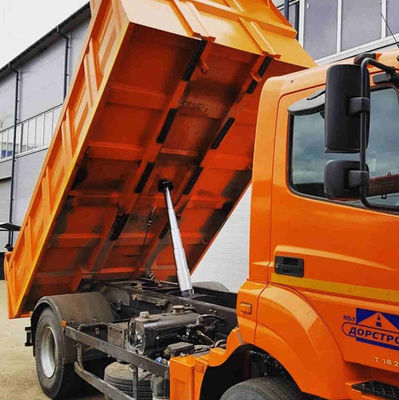

    Application: The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Garbage Truck etc
    TG series Hydraulic Cylinder
    ModelStagePressure(MPa)Bore Diameter(mm)Stroke(mm)
    105mmx510mm216105/90510
    105mmx500mm216105/90500
    105mmx475mm216105/90475
    105mmx450mm216105/90450
    105mmx420mm316105/90/75420
    105mmx340mm316105/90/75340
    105mmx300mm316105/90/75300
    90mmx450mm21690/75450
    105mmx375mm216105/90375

    Cylinder custom-design parameters:

    1. Bore diameter;

    2. Rod diameter;

    3. Stroke;

    4. Working pressure;

    5. Front and back end mount type;

    6. Using frequency;

    7. Work Environment;

    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.
