| Place of Origin: | Shandong |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO9001-2009 TS16949 |
| Model Number: | Standard , Non-standard |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton box |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,paypal |
| Supply Ability: | 50000PCS per year |
| Structure: | Welding Piston Hydraulic Cylinder | Lifting Capacity: | 13 - 110 Ton |
|---|---|---|---|
| Mounting Type: | Earring-trunnion,Double-trunnionHinge Shaft,underbody | Coating: | Chrome Plated |
| Pressure Direction: | One Way | Hydraulic Pressure: | 16MPa, 18MPa Or 22MPa |
| Usage: | Automation And Control | Stroke: | Max To 12000 Mm Or Longer |
| High Light: | telescopic hydraulic cylinder,elescoping hydraulic ram |
||

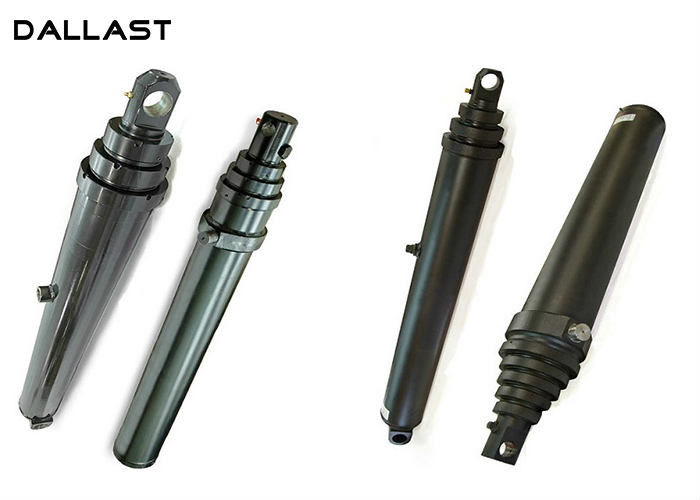

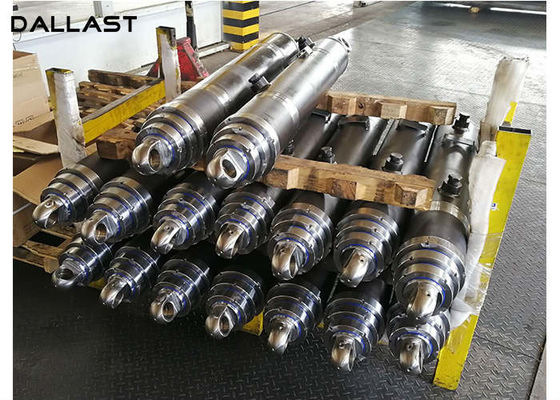

Parker Telescopic Hydraulic Ram for Farm Dump Truck Tipper , Hydraulic Ram Cylinder
Piston rod:
1: hard chrome plating
2: thickness of 0.03-0.05mm;
3: in-house salt spray test
Cylinder tube:
1: standard material-#45, SAE1045, CK45
2. surface roughness: Ra0.4-0.08micron
Welding: mannual & machine welding
| Application | Dump truck, Tipper, Dump Trailer |
| Material of cylinder tube | Alloy steel,Carbon steel,27SiMn |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Working pressure | 16MP, 18MP,22MP |
| Bore size | 40mm to 800mm |
| Stroke | to 12000mm or longer |
| Color | Red black blue gray,or according to customer's requirements |
| Mounting type | Earring-trunnion, double trunnion, double earring,or per customer's request |
| Package | Shrink film, wooden pallet and carton |
| Delivery time | 20-30 days after payment receiving |
Parker and custom hoist
| Model No. | First Stage Diameter | Stroke(A) | Closed Length(B) | Open Length(C) |
| 3TG F5*72 | 5" | 72"(1829mm) | 37.19" (945mm) | 109.19" (2773mm) |
| 3TG F5*84 | 5'' | 84" (2134mm) | 41.19" (1046mm) | 125.19" (3180mm) |
| 3TG F5*107 | 5" | 107.56" (2732mm) | 48.38" (1229mm) | 155.94" (3961mm) |
| 3TG F5*126 | 5" | 126.63" (3216mm) | 54.56" (1386mm) | 181.19" (4602mm) |
| 3TG F6*86 | 6" | 86.75" (2203mm) | 40.88" (1038mm) | 127.63" (3241mm) |
| 3TG F6*104 | 6" | 103.94" (2640mm) | 47" (1194mm) | 150.94" (3834mm) |
| 3TG F6*107 | 6" | 107.56" (2732mm) | 48.38" (1289mm) | 155.94" (3961mm) |
| 3TG F6*111 | 6'' | 111" (2819mm) | 49.94" (1268mm) | 160.94" (4087mm) |
| 3TG F6*120 | 6'' | 120" (3048mm) | 53.5" (1359mm) | 173.5" (4407mm) |
| 3TG F6*123 | 6'' | 123" (3124mm) | 54.94" (1395mm) | 177.94" (4519mm) |
| 3TG F6*126 | 6'' | 126.31"(3208mm) | 54.56" (1386mm) | 180.87" (4594mm) |
| 3TG F6*140 | 6'' | 140.25" (3562mm) | 59.81" (1519mm) | 200.06" (5081mm) |
| 4TG F6*135 | 6'' | 135" (3429mm) | 47.19" (1199mm) | 182.19" (4628mm) |
| 4TG F6*156 | 6'' | 156" (3962mm) | 53.62" (1362mm) | 209.62" (5324mm) |
| 3TG F7*110 | 7" | 110.63" (2810mm) | 50.06" (1271mm) | 160.69" (4081mm) |
| 3TG F7*120 | 7" | 120" (3048mm) | 53.12" (1349mm) | 173.12" (4397mm) |
| 3TG F7*124 | 7" | 124.88" (3172mm) | 54.81" (1392mm) | 179.69" (4564mm) |
| 3TG F7*129 | 7" | 129" (3277mm) | 56.5" (1435mm) | 185.5" (4712mm) |
| 3TG F7*140 | 7" | 140.44" (3567mm) | 60" (1524mm) | 200.44" (5091mm) |
| 3TG F7*150 | 7" | 150" (3810mm) | 63.50" (1613mm) | 213.50" (5423mm) |
| 4TG F7*120 | 7" | 120" (3048mm) | 44.12" (1120mm) | 164.12" (4168mm) |
| 4TG F7*135 | 7" | 135" (3429mm) | 48.43" (1230mm) | 183.44" (4659mm) |
| 4TG F7*140 | 7" | 140" (3556mm) | 49.75" (1263mm) | 189.75" (4819mm) |
| 4TG F7*156 | 7" | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| 4TG F7*161 | 7" | 161.75" (4108mm) | 55.31" (1405) | 217.06" (5513mm) |
| 4TG F7*167 | 7" | 167" (4242mm) | 56.38" (1432mm) | 223.38" (5674mm) |
| 4TG F7*180 | 7" | 180" (4572mm) | 61.12" (1552mm) | 241.12" (6124mm) |
| 4TG F8*148 | 8" | 147.75" (3753mm) | 51.50" (1308mm) | 199.25" (5061mm) |
| 4TG F8*156 | 8" | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| 4TG F8*161 | 8" | 160" (4064mm) | 55.75" (1416mm) | 215.75" (5480mm) |
| 4TG F8*170 | 8" | 170" (4318mm) | 57.25" (1454mm) | 227.25" (5481mm) |
| 4TG F8*180 | 8" | 180" (4572mm) | 59.75" (1518mm) | 239.75" (6090mm) |
| 5TG F8*170 | 8" | 170" (4318mm) | 49.88" (1267mm) | 219.88" (5585mm) |
| 5TG F8*190 | 8" | 189" (4800mm) | 54.62" (1387mm) | 243.62" (6188mm) |
| 5TG F8*220 | 8" | 220" (5588mm) | 60" (1524mm) | 280" (7112mm) |
| 5TG F8*235 | 8" | 234" (5944mm) | 64.62" (1641mm) | 298.62" (7585mm) |
| 5TG F8*250 | 8" | 249" (6325mm) | 68.62" (1743mm) | 317.62" (8068mm) |
| 5TG F8*265 | 8" | 265" (6731mm) | 71" (1803mm) | 336" (8534mm) |
| 5TG F8*285 | 8" | 285" (7239mm) | 78.5" (1994mm) | 363.5" (9233mm) |
| 5TG F9*220 | 9" | 218" (5537mm) | 62.44" (1586mm) | 280.44" (7123mm) |
| 5TG F9*235 | 9" | 233" (5918mm) | 65.44" (1662mm) | 298.44" (7580mm) |
| 5TG F9*250 | 9" | 248" (6299mm) | 68.44" (1738mm) | 316.44" (8037mm) |
| 5TG F9*265 | 9" | 265" (6731mm) | 72.62" (1844mm) | 337.62" (8575mm) |
| 5TG F9*280 | 9" | 280" (7112mm) | 72.62" (1997mm) | 358.62" (9109mm) |
| 5TG F9*300 | 9" | 300" (7620mm) | 79" (2007mm) | 379" (9627mm) |
| 5TG F9*320 | 9" | 320" (8128mm) | 83" (2108mm) | 403" (9628mm) |
| 5TG F9*340 | 9" | 340" (8636mm) | 87" (2210mm) | 427" (10846mm) |
FAQ:
1. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.
2. Can I get samples to test before starting cooperation?
Of course.We would like produce sample hydraulic cylinder for your confirmation.
3. Have you been exported to overseas?
We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.
4. What is your warranty?
Our products are all available for one year free warranty and product lifetime consulting service.
