| Place of Origin: | Qingdao |
| Brand Name: | DALLAST |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | custom |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 15-25 work days per year |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Usage: | Automation And Control | Pressure Direction: | Single Acting |
|---|---|---|---|
| Pressure: | 16-35MPa | Temperature: | Normal Or High Temperature |
| Color: | Black Or Custom | HS Code: | 8412210000 |
| High Light: | electric telescopic cylinder,elescoping hydraulic ram |
||

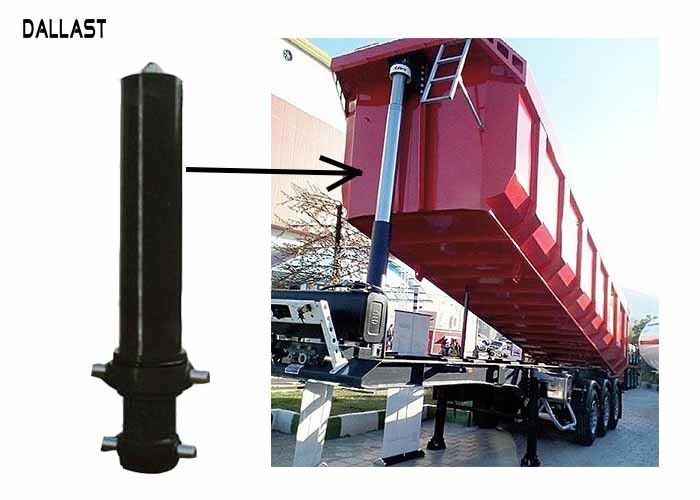

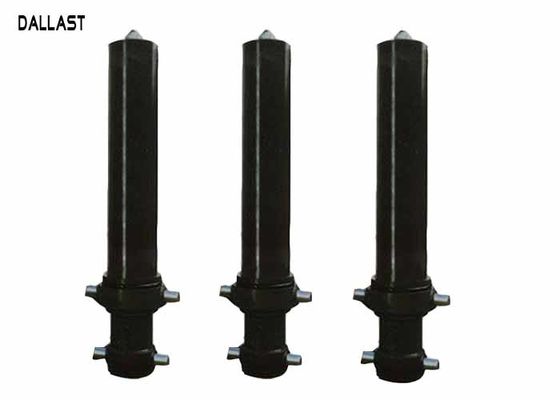

Telescopic Hydraulic Ram Long Stroke Single Acting with Piston to Push the Piston Rod
| MODEL NO. | Stage | First Stage Diameter | Stroke | Largest Sleeve OD | Closed length | Mounting distance |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| FC-3-107-2855 | 3 | 107 | 2855 | 152 | 1268 | 311 |
| FC-3-107-3115 | 3 | 107 | 3115 | 152 | 1368 | 311 |
| FC-3-107-3265 | 3 | 107 | 3265 | 152 | 1418 | 311 |
| FC-3-107-3415 | 3 | 107 | 3415 | 152 | 1468 | 311 |
| FC-4-165-5310 | 4 | 165 | 5310 | 244 | 1647 | 343 |
| FC-4-165-5865 | 4 | 165 | 5865 | 244 | 1797 | 343 |
| FC-5-165-5135 | 5 | 165 | 5135 | 244 | 1351 | 343 |
| FC-5-165-5385 | 5 | 165 | 5385 | 244 | 1401 | 343 |
| FC-5-165-5635 | 5 | 165 | 5635 | 244 | 1451 | 343 |
| FC-5-165-6135 | 5 | 165 | 6135 | 244 | 1551 | 343 |
| FC-5-165-6385 | 5 | 165 | 6385 | 244 | 1601 | 343 |
| FC-5-165-6825 | 5 | 165 | 6825 | 244 | 1701 | 343 |
| FC-5-165-7075 | 5 | 165 | 7075 | 244 | 1751 | 343 |
| FC-5-165-7325 | 5 | 165 | 7325 | 244 | 1801 | 343 |
| FC-5-165-7575 | 5 | 165 | 7575 | 244 | 1851 | 343 |
| FC-5-165-7825 | 5 | 165 | 7825 | 244 | 1901 | 343 |
| FC-5-165-8185 | 5 | 165 | 8185 | 244 | 2001 | 343 |
| FC-5-165-8435 | 5 | 165 | 8435 | 244 | 2051 | 343 |
| FC-5-187-5135 | 5 | 187 | 5135 | 244 | 1351 | 343 |
| FC-5-187-5385 | 5 | 187 | 5385 | 244 | 1401 | 343 |
| FC-5-187-5635 | 5 | 187 | 5635 | 244 | 1451 | 343 |
| FC-5-187-6135 | 5 | 187 | 6135 | 244 | 1551 | 343 |
| FC-5-187-6385 | 5 | 187 | 6385 | 244 | 1601 | 343 |
| FC-5-187-6825 | 5 | 187 | 6825 | 244 | 1701 | 343 |
| FC-5-187-7075 | 5 | 187 | 7075 | 244 | 1751 | 343 |
| FC-5-187-7325 | 5 | 187 | 7325 | 244 | 1801 | 343 |
| FC-5-187-7825 | 5 | 187 | 7825 | 244 | 1901 | 343 |
| FC-5-187-8185 | 5 | 187 | 8185 | 244 | 2001 | 343 |
| FC-5-187-8435 | 5 | 187 | 8435 | 244 | 2051 | 343 |
| FC-5-187-8935 | 5 | 187 | 8935 | 244 | 2151 | 343 |
| FC-5-187-9185 | 5 | 187 | 9185 | 244 | 2201 | 343 |
| FC-6-187-8790 | 6 | 187 | 8790 | 244 | 1805 | 843 |
| FC-6-187-9085 | 6 | 187 | 9085 | 244 | 1855 | 343 |
| FC-7-187-8535 | 7 | 187 | 8535 | 244 | 1559 | 343 |
seal kits: Hallite, NOK, SKF, Parker etc.
piston rod: Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre
We can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.
Application:
Can be used on construction machinery,engineering machinery,mining machinery,lock of water resource project and so on.
Features:
Good quality and low noise
The oil way design perfectly and can save the energy, avoid wast
The pump connected with the motor directly can save the space
Single-acting cylinders transfer force and motion in one direction only
Acts on the piston to push the piston rod out
When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement
Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.
Warranty:
We offer 12 months warranty.
From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.
After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
