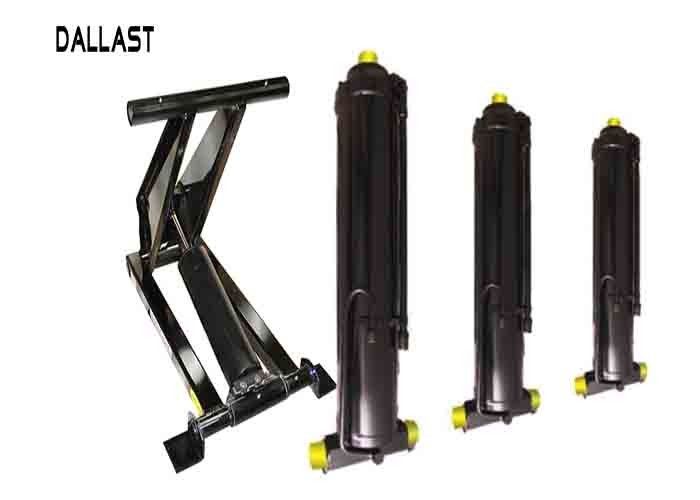

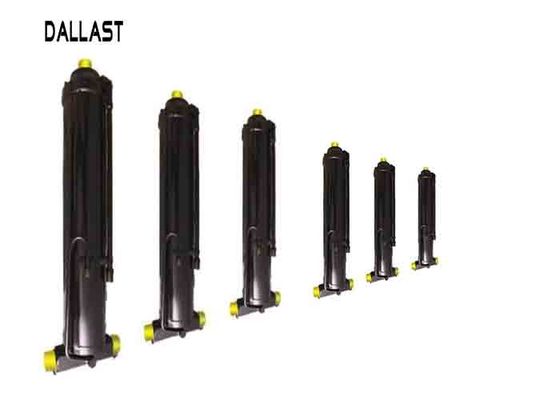

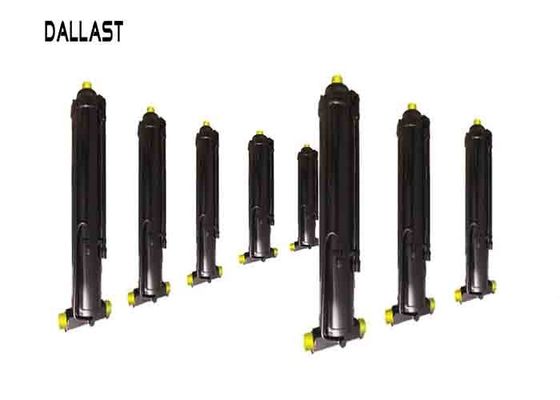

Double Acting Hydraulic Cylinder Lift Vertical to Axis Foot Type with Breckets for Trailer

Double Acting Hydraulic Cylinder Lift Vertical to Axis Foot Type with Breckets for Trailer

    • Double Acting Hydraulic Cylinder Lift Vertical to Axis Foot Type with Breckets for Trailer
    • Double Acting Hydraulic Cylinder Lift Vertical to Axis Foot Type with Breckets for Trailer
    • Double Acting Hydraulic Cylinder Lift Vertical to Axis Foot Type with Breckets for Trailer
  • Double Acting Hydraulic Cylinder Lift Vertical to Axis Foot Type with Breckets for Trailer

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Design: Custom Direction: Double Acting Cylinder
    Pressure: 30-350 Bar Temperature: Normal Temperature
    Rod Materail: Custom, Or Stainless Steel Bore Material: 27SIMN, 20#, Or On Request

    Hydraulic Cylinder Double Acting Lift Vertical to Axis Foot Type with Breckets for Trailer


             Design: Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.
            Advantages: Improved quality system; doubled manufacturing and warehousing area; high quality products; very competitive price; great service.

             Warranty: All cylinder products carry an 12 months warranty.
            Application: dump trailers; aerial trucks; lift tables and the list goes on...



    Mounting way:
    1. Front and end of earring;
    2. Head fixed with flange;
    3. End fixed with flange;
    4. Vertical to axis foot type;
    5. Middle fixed with pendulum shift;
    6. End with single earring;
    7. According to your demand.



    Main characteristics:
     A. Small space occupation
    B. Pre-assembled structure makes installation easier
    C. Hydraulic overloading protection available

    Piston rod:
    All our piston rods are hard protection coated, such as hard chrome plate, or if required, can be coated with an alternative treatment more suitable to the application. High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters.



    Features:
    Max inner tube 170mm,180mm,195mm,200mm,210mm,etc
    Mounting distance 325mm/345mm/425mm or as customers’ requirements
    Stroke 750mm-7200mm
    Tipping weight 6-60 Ton
    Seal type Parker,NOK, BUSAK or as customer's requirement
    Piston rod Chrome or nickel plated,ground & polished piston rod
    Pressure range Could be customized
    Piston Ø Customized
    Piston rod Ø Customized
    Mounting types Customized
    Max. stroke speed According to the product types



    If you interested in our product, please feel free to contact us. We can OEM & ODM for you.




    Quality control:
             Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation.Snap on glass filled bearings that absorb contaminants without damaging cylinder walls. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing nuts backing off.

    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.

    Double Acting Hydraulic Cylinder Lift Vertical to Axis Foot Type with Breckets for Trailer
