| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Acting Way: | Single Acting | Structure: | Telescopic Cylinder |
|---|---|---|---|
| Pressure Environment: | Medium Pressure | Hardness: | HRC 45-55 |
| Working Pressure: | 16-32 Mpa | Warranty: | One Year |
| High Light: | multi stage hydraulic ram,hollow hydraulic cylinder |
||
Single Acting Multi Stage Telescopic Hydraulic Cylinder for Agricultural Dump Truck
What's hydraulic cylinder?
A hydraulic cylinder is a mechanical actuator used to provide unidirectional Force through a unidirectional stroke. Hydraulic cylinders are used in almost every industry and are available in a variety of confiurations.
the two main types of hydraulic cylinders are Tie-rod and Welded.
Each of these cylinder types can have unique applications due to their designs.
Tie-rod cylinders are usually installed in light to medium duty applications and are generally designed to be repaired or re-packed if necessary.
Welded cylinders are designed for most applications and are more complex in Design, but are generally more diffiult to repair due to the welded design. Welded cylinders are typically a better solution due to their compact design and when a more robust design is important in an application.
Our main products:
· Front - end multistage hydraulic cylinder
(FC/FE/FEE, used for dump truck)
· Under - body hoist multistage hydraulic cylinder
(bore size from 70-110mm, stroke from 500-2000mm)
· Engineering piston hydraulic cylinder
(Used for trailer, modified vehicle, construction machinery, forklift and agricultural machinery)
Quality assurance:
Use high-end components
the best design which is designed by experienced engineers
Well-trained workforce
All hydraulic cylinders must do pressure test before shipment
Good quality control and assurance system
Advanced test apparatus
High pricision measuring apparatus
After-sales Service of Hydraulic Cylinder:
1. we offer the spare parts free of charge.
2. we offer one year guarantee period on the product quality
If you need more information, please contact me without any hesitation. Sincerely welcome you to visit our factory at any time!
Parameter:
| Hydraulic Cylinder for Agricultural Dump Truck | |
| Model Type | Multistage type |
| Certificate | ISO9001&TS16949:2009 |
| Body Material | Stainless Steel, Alloy Steel |
| Shaft Diameter | 12mm-500mm, Requirements |
| Pressure | 16MPa~32MPa |
| Total Stroke | Requirements |
| Surface Treatment | Chrome Plating |
| Working type | Single or double acting |
| Application | Agriculture machine |
| Package | shrink film, pallet, plywood case and carton |
| Warranty | One year after shipping arrival |
| Payment terms | L/C, T/T, West Union |
| Delivery time | 15- 25 days after down payment |
| We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements. Please give your drawings. |
1) Bore diameter 2) Piston rod diameter 3) Stroke length 4) Working pressure 5) Mounting method |
Profile:
Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.

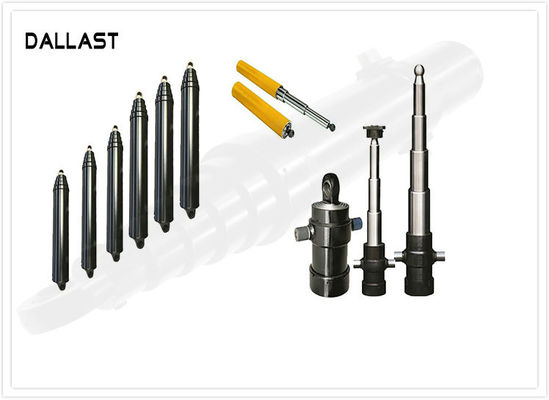

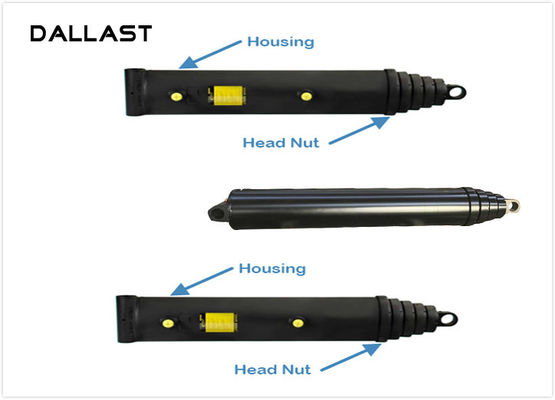

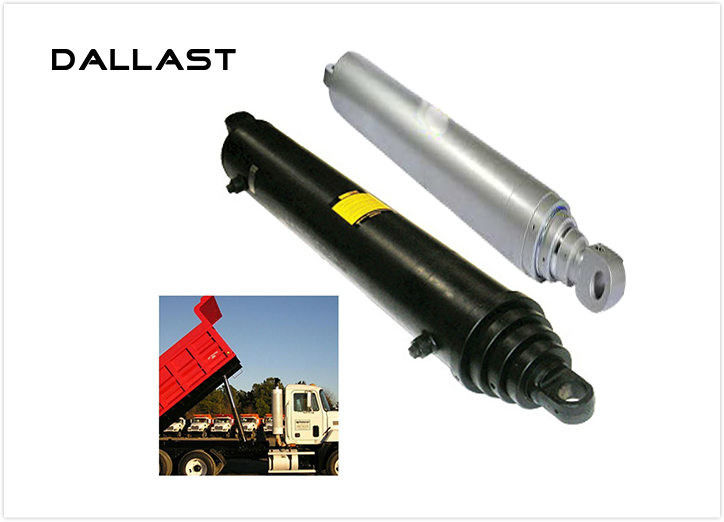

Product Show:
