| Place of Origin: | China |
| Brand Name: | DALLAST or on request |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | customied |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 20-30 work days or on request |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Pressure: | 10-35 MPa | Temperature: | Normal Temperature |
|---|---|---|---|
| Action Type: | Double Acting | Rod ID: | Custom |
| Bore Size: | Custom | Material: | Stainless Steel, Alloy Steel, Etc. |
| High Light: | hydraulic lift ram,garbage truck hydraulic cylinders |
||

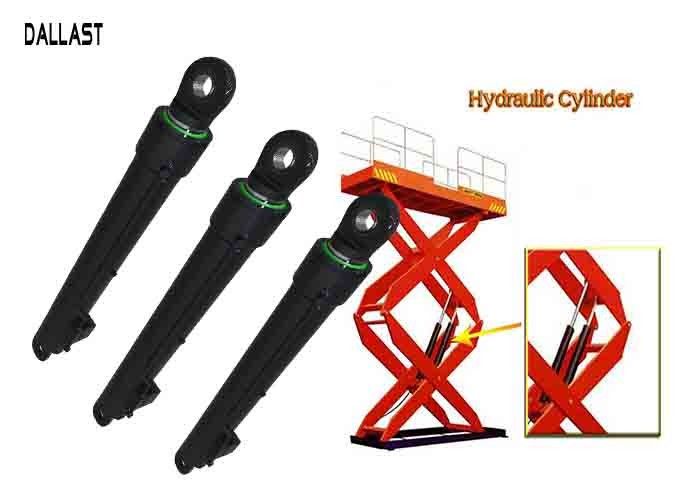

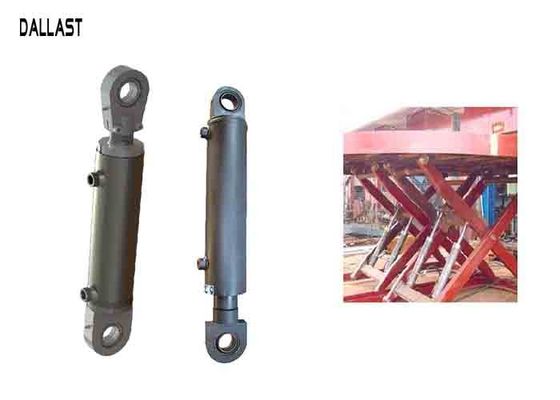

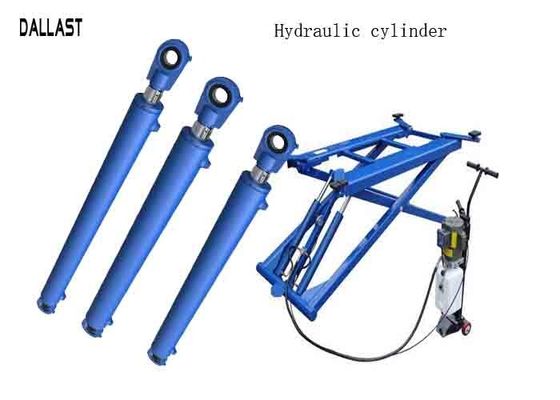

Hydraulic Lift Cylinder Piston Double Acting Double Earring for Scissor Lift Platform
Scissor lift hydraulic cylinder is extensively applicable in many areas as a dock
leveler for high range vertical movement. These lifts provide non-marking rough terrain
tires, platform work lights and pothole guards. constructed robustly to ensure the maximum and reliable performance, easy operation and installation. These lifts have extreme strength with working height of13.8 meters and lift capacity of up to 3 tons.
Advantages:
Bore 2"
Stroke 24"
Rod 1.25"
Retracted 32"
Extended 56"
- Pressure tested with ports sealed from the factory
- Double acting cylinder
- Cross tube mounting style
|
HSG series double function single rod piston hydraulic cylinder is the actuator of reciprocating linear movement in hydraulic system. It maintains the feature of simple structured, reliable,detach and attach easily, maintain easily, buffer equipment and multi-connect ways etc.
|
||||||
| Mode NO |
Pressure (Bar) |
Capacity (ton) |
Cylinder bore (mm) |
The diameter of rod (mm) |
Stroke (mm) |
Mounting distance (mm) |
| HSG800.55A.012 | 34 | 3 | 80 | 32 | 200 | 535 |
| HSG600.55B.2a | 54 | 3 | 75 | 32 | 110 | 423 |
| HSG00.55C.2a | 63 | 3 | 75 | 32 | 110 | 423 |
| HSG700.55D.011 | 51 | 3 | 100 | 40 | 200 | 516 |
| HSG1004.55.8 | 87 | 3 | 90 | 35 | 200 | 535 |
| TG1204.551.1 | 48 | 3 | 100 | 40 | 185 | 535 |
| TG1854.551.2 | 93 | 3 | 110 | 70 | 182 | 535 |
| TG1854.551.3 | 180 | 3 | 110 | 70 | 182 | 535 |
Please note that the regularly stocked cylinders above. If you are interested in our hydraulic cylinders for agricultural machinery, please feel free to contact our office and sent us your drawings to place an order for quick delivery.
About piston rod:
All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
Piston Seals:
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Warranty:
We offer 12 months warranty.
Tips:
Do you need special cylinders?
Our technicians will help you to design them and we will manufacture them according to your requirements.
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings.
| A. The drawing details are as follows. | |
| Bore size |
Stroke length
|
| Rod diameter |
Mounting type
|
| Mounting length |
Paint color requirement
|
|
B. The product application description details |
|
| 1. Type of machine(loader, steer loader, excavator, and etc.) | |
|
2. Type of function(hoist, swing, steering, and etc.) 3. Type of structure(piston, telescopic) |
|
| 4. Single or double acting | |
| 5. Operating pressure | |
