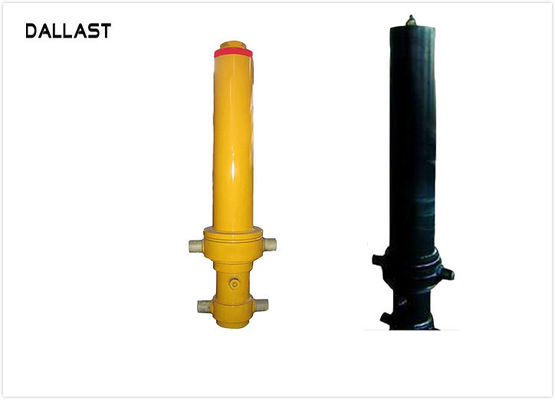

Single Acting Front End Hydraulic Chromed Cylinder for Engineering Truck
Hydraulic Cylinder :
Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement.
Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.
We are Chinese Cylinder manufacturer offer best Oil Cylinder OEM, ODM, service.
Warranty and Guarantee:
1. All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the receipt of your purchase
2. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
3. All return items must be in its original conditions, including box and accessories. Men made defects are not guaranteed, such as broken, scratched and so on.
4. For any items,please send by EMS or your local post when send back.
Other Policies:
1. We are not responsible for any custom duty or import tax.
2. Please leave POSITIVE FEEDBACK after receiving the goods if you are satisfied with our products and service. And we will do the same. Please contact us if you are not satisfied with the item after receive it, we will try our best efforts to support you.
3. All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will try to reply to you as soon as possible.
4. Serious Buyer Only! Please place bid only if you agree with all the terms.
Three advantages for hydraulic cylinder:
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Parameter:
| Single Acting Hydraulic Cylinder | ||||||
| Model | Extended Stages |
Working Pressure | Max. stage | Max. stroke | Lifting Capacity |
Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
| 129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| 149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| 149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| 149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| 149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| 169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
| 169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| 169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| 169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| 169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| 169-4E-5460 | 4 | 16-19 | 169 | 5460 | 32-60 | 6.5-7.3 |
| 185-4E-4280 | 4 | 16-19 | 185 | 4280 | 25-45 | 5.6 |
| 185-4E-5000 | 4 | 16-19 | 185 | 5000 | 32-50 | 6.2-6.5 |
| 185-4E-5780 | 4 | 16-19 | 185 | 5780 | 45-70 | 6.9-7.7 |
| 185-4E-6000 | 4 | 16-19 | 185 | 6000 | 50-80 | 7.3-8.2 |
| 191-5E-5780 | 5 | 16-19 | 191 | 5780 | 40-70 | 6.9-7.7 |
| 191-5E-6200 | 5 | 16-19 | 191 | 6200 | 45-80 | 7.3-8.2 |
| 191-5E-7130 | 5 | 16-19 | 191 | 7130 | 50-85 | 7.8-8.5 |
| 191-5E-9030 | 5 | 16-19 | 191 | 9030 | 55-90 | 10.0-11.0 |
|

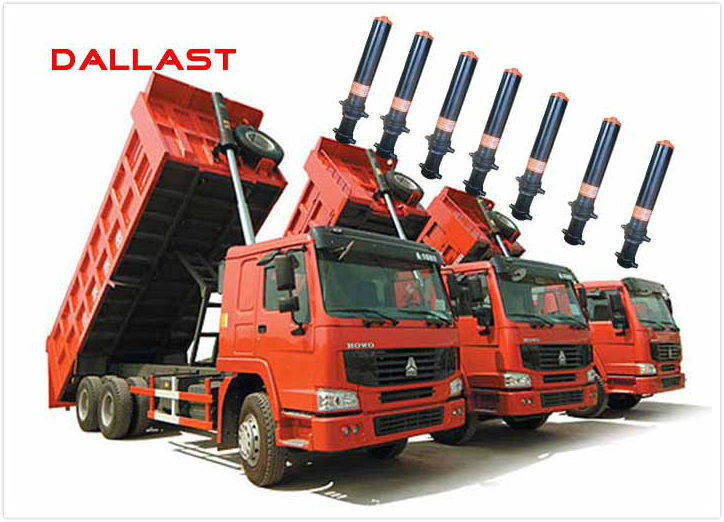

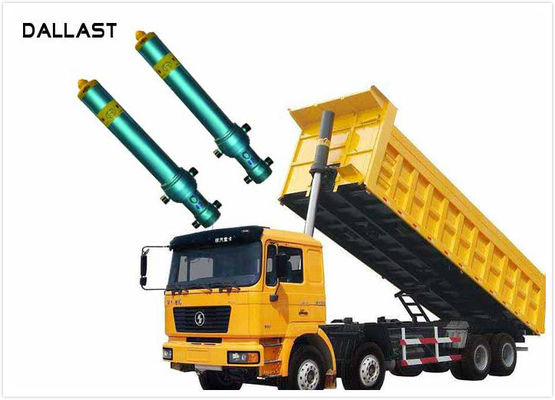

This product is used in numerous application including: 1. Dump truck. 2. Pump trucks. 3. Truck mounted crane. 4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders. |
The above data for reference only, we can fully meet your requirements to make customers satisfied with the product.If you need, feel free to contact us and we can advise and design. | |||||
FAQ:
| Questions: | Answers: |
| 1. Compared with Hyva cylinder, what are your cylinder advantages? |
1. Tubes are chrome plated. 2. Tubes are quenched and tempered. |
| 2. Compared with Hyva cylinder, what are your cylinder advantages? |
1. Tubes are chrome plated. 2. Tubes are quenched and tempered. |
| 3. Are you a manufacturer? | Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years. |
| 4. Do your products come with a warranty? | Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you. |
|
5. How do you deliver the products? |
By sea, By plane, By couriers. |
|
6. What’s your cylinder PPM? |
5000 PPM. We do 100% inspection before delivery. |
Product Show:
