Front End Hydraulic Lift Cylinder for Engineering Machinery , Telescoping Hydraulic Ram

Front End Hydraulic Lift Cylinder for Engineering Machinery , Telescoping Hydraulic Ram

    • Front End Hydraulic Lift Cylinder for Engineering Machinery , Telescoping Hydraulic Ram
    • Front End Hydraulic Lift Cylinder for Engineering Machinery , Telescoping Hydraulic Ram
    • Front End Hydraulic Lift Cylinder for Engineering Machinery , Telescoping Hydraulic Ram
  • Front End Hydraulic Lift Cylinder for Engineering Machinery , Telescoping Hydraulic Ram

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Power: Hydraulic Hardness: HRC 45-55
    Seals: Parker, Merkel, Hallite Acting Way: Single Acting
    Origin: Shandong, China Delivery Time: 15-25 Days
    High Light:

    hydraulic lift ram

    ,

    crane hydraulic cylinder

    Parker Hyva Single Acting Front End Hydraulic Lift Cylinder for Engineering Machiney



    Hydraulic Cylinder :

    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement.

    Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.
    We are Chinese Cylinder manufacturer offer best Oil Cylinder OEM, ODM, service.



    Custom Hydraulic Cylinder (OEM):

    Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
    trucks according to the drawing from customers,but also we could make a design according to
    customers’requirements . If you require our engineer to make a design , please advise us the
    following specification :
    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example chromating film thickness ,
    Surface hardness etc .
    11. Painting and other spare parts requirements .



    Three advantages for hydraulic cylinder:

    1. Longer serve life.

    By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure

    fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!

    2. More strong stability.

    Stability optimization design, improve the long box lifting high stability, reduce rollover risk!

    3. Lift More.

    Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!



    Parameter:

    Single Acting Hydraulic Cylinder
    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
    185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5
    191-5E-9030 5 16-19 191 9030 55-90 10.0-11.0

    This product is used in numerous application including:

    1. Dump truck,

    2. Pump trucks,

    3. Truck mounted crane,

    4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders





    FAQ:



    Questions: Answers:
    1. Compared with Hyva cylinder, what are your cylinder advantages?

    1. Tubes are chrome plated.

    2. Tubes are quenched and tempered.

    2. Compared with Hyva cylinder, what are your cylinder advantages?

    1. Tubes are chrome plated.

    2. Tubes are quenched and tempered.

    3. Are you a manufacturer? Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.
    4. Do your products come with a warranty? Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.

    5. How do you deliver the products?

    By sea, By plane, By couriers.



    Product Show:

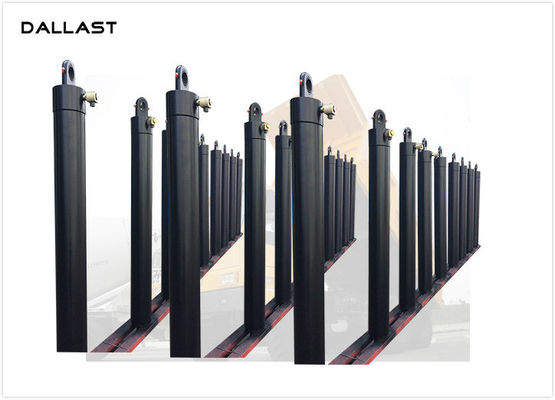

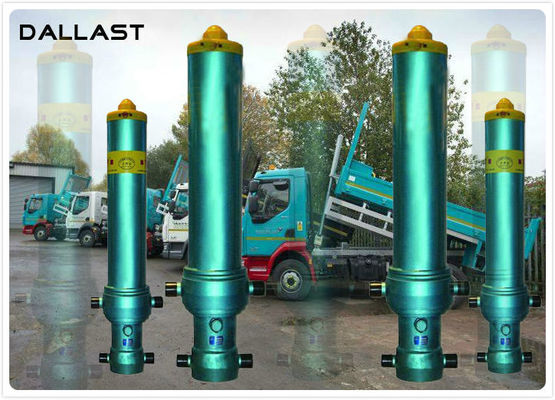

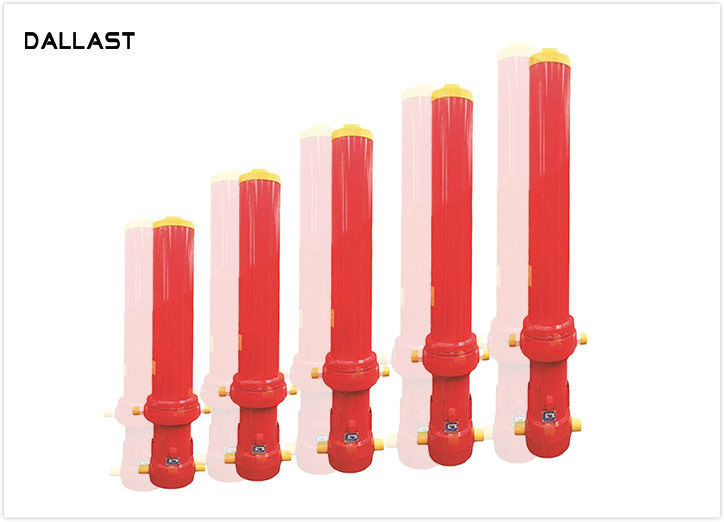

    Front End Hydraulic Lift Cylinder for Engineering Machinery , Telescoping Hydraulic Ram
