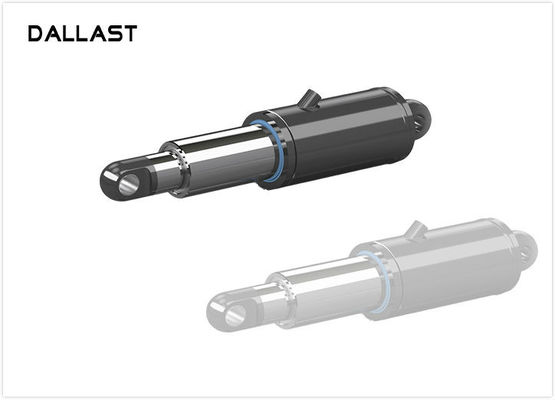

Telescoping Hydraulic Ram Multi Stage Truck Hydraulic Ram Cylinder

Telescoping Hydraulic Ram Multi Stage Truck Hydraulic Ram Cylinder

    • Telescoping Hydraulic Ram  Multi Stage Truck Hydraulic Ram Cylinder
    • Telescoping Hydraulic Ram  Multi Stage Truck Hydraulic Ram Cylinder
    • Telescoping Hydraulic Ram  Multi Stage Truck Hydraulic Ram Cylinder
  • Telescoping Hydraulic Ram  Multi Stage Truck Hydraulic Ram Cylinder

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Structure: Telescopic Cylinder
    Pressure Environment: Medium Pressure Hardness: HRC 45-55
    Working Pressure: 16-32 Mpa Warranty: One Year

    Single Acting Multi Stage Telescopic Agricultural Truck Hydraulic Welding Cylinder





    What's hydraulic cylinder?
    A hydraulic cylinder is a mechanical actuator used to provide unidirectional Force through a unidirectional stroke. Hydraulic cylinders are used in almost every industry and are available in a variety of confiurations.
    the two main types of hydraulic cylinders are Tie-rod and Welded.
    Each of these cylinder types can have unique applications due to their designs.
    Tie-rod cylinders are usually installed in light to medium duty applications and are generally designed to be repaired or re-packed if necessary.
    Welded cylinders are designed for most applications and are more complex in Design, but are generally more diffiult to repair due to the welded design. Welded cylinders are typically a better solution due to their compact design and when a more robust design is important in an application.



    Quality assurance:
    Use high-end components
    the best design which is designed by experienced engineers
    Well-trained workforce
    All hydraulic cylinders must do pressure test before shipment
    Good quality control and assurance system
    Advanced test apparatus
    High pricision measuring apparatus



    After-sales Service of Hydraulic Cylinder:
    1. we offer the spare parts free of charge.
    2. we offer one year guarantee period on the product quality
    If you need more information, please contact me without any hesitation. Sincerely welcome you to visit our factory at any time!

    Cylinder and Cylinder of the Advantages and Disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;



    Parameter:

    1) Bore diameter

    2) Piston rod diameter

    3) Stroke length

    4) Working pressure

    5) Mounting method

    Model Type Multistage type
    Certificate ISO9001&TS16949:2009
    Body Material Stainless Steel, Alloy Steel
    Shaft Diameter 12mm-500mm, Requirements
    Pressure 16MPa~32MPa
    Total Stroke Requirements
    Surface Treatment Chrome Plating
    Working type Single or double acting
    Application Agriculture machine
    Package shrink film, pallet, plywood case and carton
    Warranty One year after shipping arrival
    Payment terms L/C, T/T, West Union
    Delivery time 15- 25 days after down payment
    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.



    Profile:
    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.

    Product Show:

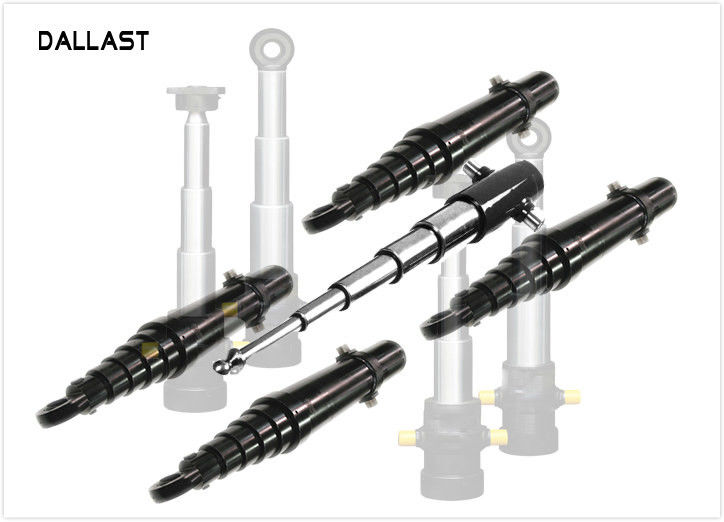

    Telescoping Hydraulic Ram  Multi Stage Truck Hydraulic Ram Cylinder
