| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Acting Way: | Single Acting | Structure: | Telescopic Cylinder |
|---|---|---|---|
| Pressure Environment: | Medium Pressure | Adjusted Form: | Regulated Type |
| Certification: | Gs, RoHS, Ce, ISO9001 | Hardness: | HRC 45-55 |
| High Light: | multi stage telescopic hydraulic cylinder,multi stage hydraulic ram |
||
Single Acting Multi Stage Telescopic Agricultural Truck Hydraulic Welding Cylinder
What's hydraulic cylinder?
A hydraulic cylinder is a mechanical actuator used to provide unidirectional Force through a unidirectional stroke. Hydraulic cylinders are used in almost every industry and are available in a variety of confiurations.
the two main types of hydraulic cylinders are Tie-rod and Welded.
Each of these cylinder types can have unique applications due to their designs.
Tie-rod cylinders are usually installed in light to medium duty applications and are generally designed to be repaired or re-packed if necessary.
Welded cylinders are designed for most applications and are more complex in Design, but are generally more diffiult to repair due to the welded design. Welded cylinders are typically a better solution due to their compact design and when a more robust design is important in an application.
After-sales Service of Hydraulic Cylinder:
1. we offer the spare parts free of charge.
2. we offer one year guarantee period on the product quality
If you need more information, please contact me without any hesitation. Sincerely welcome you to visit our factory at any time!
Cylinder and Cylinder of the Advantages and Disadvantages:
1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
3. The air viscosity is small, the resistance to less than the hydraulic oil;
Parameter:
| Product | Agricultural Truck Hydraulic Welding Cylinder Single Acting Multi Stage Telescopic |
| Stroke | 20mm-12000mm |
| Inside Cylinder Tube Dia. | 20-1500 mm (1.5 - 40 inch) |
| Liner material | Copper (prolongs the life cycle of cylinder) |
| Hydraulic cylinder tube material | Carbon steel, Alloy steel, Stainless steel |
| Piston Rod Dia | 12 - 500 mm (1/2 - 20 inch) Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra |
| Chome Plated | Cr, Ni or Ceramic |
| Design Pressure | Max 700 bar (10150 PSI) |
| Weight | Max 60 tons |
| Valves | SUN (USA),or famous Chinese brand with same quality to PARKER |
| Seals Type | PARKER (USA), MERKEL (Germany) or NOK (Japan) |
| Liner material | Copper (prolongs the life cycle of cylinder) |
| Painting | Follow with customer requirement or 3-coat marine painting |
| Certificate | DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS |
Profile:
Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.

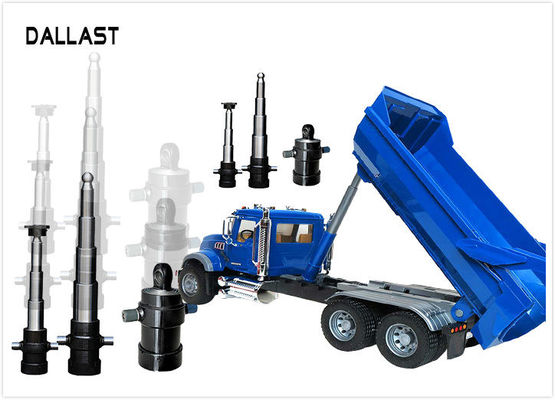

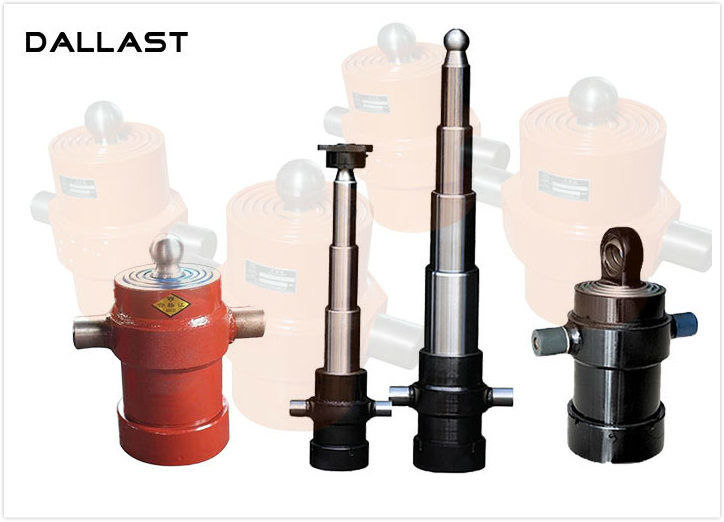

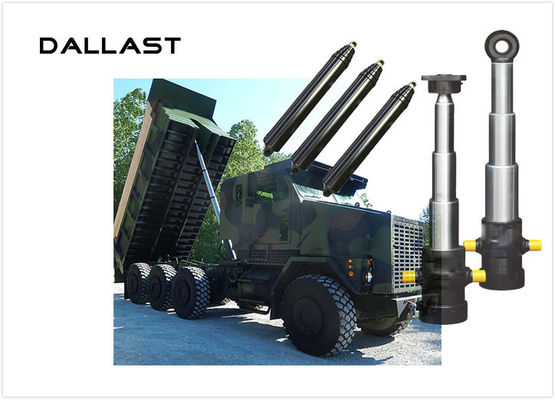

Product Show:
