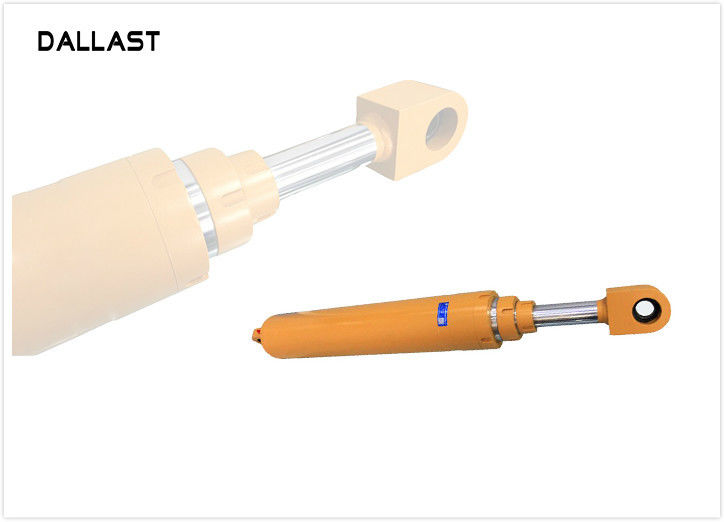

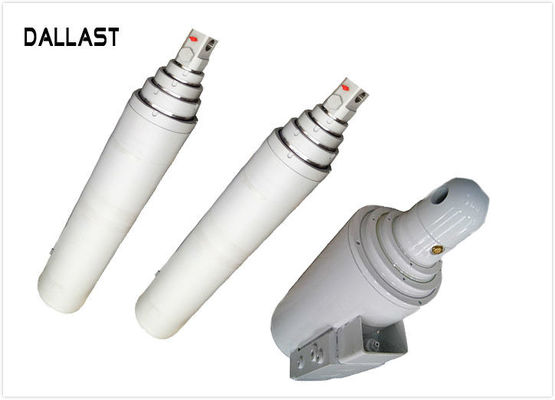

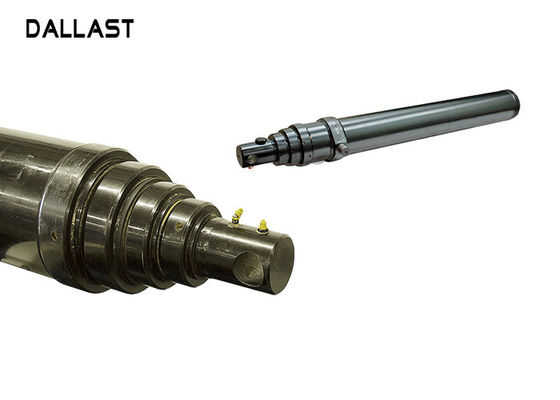

Heavy Duty Telescopic Multi Stage Hydraulic Cylinder , Industrial Hydraulic Cylinders

Heavy Duty Telescopic Multi Stage Hydraulic Cylinder , Industrial Hydraulic Cylinders

    • Heavy Duty Telescopic Multi Stage Hydraulic Cylinder , Industrial Hydraulic Cylinders
    • Heavy Duty Telescopic Multi Stage Hydraulic Cylinder , Industrial Hydraulic Cylinders
    • Heavy Duty Telescopic Multi Stage Hydraulic Cylinder , Industrial Hydraulic Cylinders
  • Heavy Duty Telescopic Multi Stage Hydraulic Cylinder , Industrial Hydraulic Cylinders

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Structure: Telescopic Cylinder
    Pressure Environment: High Pressure Material: Stainless Steel, Alloy Steel
    Color: Any Color Standard: Standard, Nonstandard
    High Light:

    multi stage telescopic hydraulic cylinder

    ,

    multi stage hydraulic ram

    Single Acting Multi Stage Heavy Duty Telescopic Industrial Hydraulic Cylinders





    Specifications:

    Single acting hydraulic cylinder
    Dallast Hydraulic Engeering Co., Ltd. is a professional hydrauli cylinder manufacturer that designs and manufactures Custom Hydraulic Cylinders used in a variety of applications. We believe that our expertise in specialized cylinders, coupled with our highly advanced equipments, enables us to provide you with superior transmission solutions.



    Manufacturing Capabilities

    · ISO9001:2008 certified

    · Complete CNC Machining capabilities

    · Bore size from 1 1/5 inches to 19.68 inches (30mm to 500mm)

    · Stroke lengths to 200'' (5000mm) or longer if required

    · Working pressures to 62Mpa

    · Up to 5 stage of multi stage hydraulic cylinder experience



    Custom Hydraulic Cylinder

    We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:

    · diameter of bore & rod

    · stroke

    · mounting style

    · mounting distance

    · working pressure

    · ports

    · seals

    · special modifications.



    Parameter:

    Single-acting Hydraulic Cylinder Details:

    This is for single-acting application, and with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).

    Hydraulic Cylinder Parameter

      Max Min
    Cylinder bore: 280 mm 10 mm
    Piston Rod Diameter: 280 mm 10 mm
    Retract Length: 3500 mm 50 mm
    Stretch Length(Single stage cylinder): 6500 mm 60 mm
    Stretch Length(Dual stage cylinder): 12500 mm 60 mm
    Working Pressure: 4500PSI 1000PSI


    Cylinder and Cylinder of the Advantages and Disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;

    FAQ:
    1. Are you a manufacturer?
    Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.

    2. Do your products come with a warranty?
    Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.

    3. Can I customize our products from your factory?
    Yes, we can make products according to your requirements. Please send me your specifications and drawings.

    4. Can you help me to install or give me advice about what kind of hydraulic
    cylinder or power pack should I use for specific machine?
    Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.

    5. How do you deliver the products?
    --By sea
    --By plane
    --By couriers. DHL, UPS, TNT and so on.


    Product Show:
    Heavy Duty Telescopic Multi Stage Hydraulic Cylinder , Industrial Hydraulic Cylinders
