| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Acting Way: | Single Acting | Delivery Time: | 15-25 Days |
|---|---|---|---|
| HS Code: | 8412210000 | Power: | Hydraulic |
| Structure: | Telescopic Cylinder | Test: | 100% Test |
| High Light: | telescopic hydraulic cylinder,electric telescopic cylinder |
||

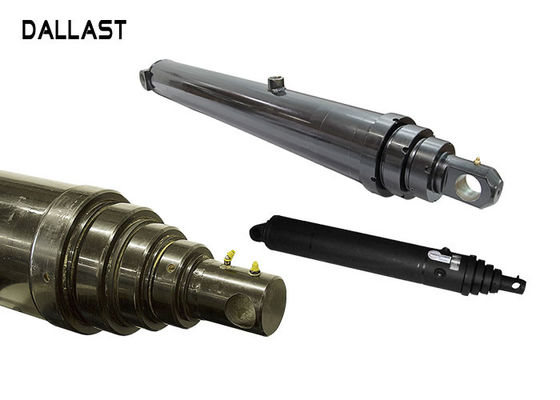

Single Acting Chief Telescoping Welded Hydraulic Ram for Dump Truck
Single Acting Hydraulic Cylinder Inner Workings and Uses:
A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.
Attention:
1. We have special departments to ensure that no strict quality control any quality problem before delivery.
2. Carefully check goods size table and product specifications. Please check detail with customer service before buying
3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.
The information about our company:
Dallast Technology Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
Parameter:
|
Welded Telescoping Hydraulic Ram 8412210000 HS Code ISO9001 Certification
|
|||||||
| Model | Tipping.Max | Press | Close.height(mm) | Tanker.Vol | carriage | Rear overhang | Lifting.angle |
| (T) | (MPa) | (L) | (mm) | (degree) | |||
| 3TG-E140×4000 | 24.6 | 16 | 1675 | 50 | 5200-5400 | 700mm | 48-52 |
| 4TG-E140×4270 | 24.6 | 16 | 1421 | 55 | 5400-5600 | 700mm | 48-52 |
| 4TG-E175×4450 | 38.5 | 16 | 1470 | 81 | 5600-6000 | 800 | 48-52 |
| 4TG-E175×4650 | 38.5 | 16 | 1509 | 84 | 6000-6400 | 800 | 48-52 |
| 4TG-E175×5000 | 38.5 | 16 | 1597 | 91 | 6400-6600 | 800 | 48-52 |
| 4TG-E175×5390 | 38.5 | 16 | 1695 | 98 | 6600-7000 | 800 | 48-52 |
| 4TG-E175×6000 | 38.5 | 16 | 1851 | 109 | 7400-7800 | 800 | 48-52 |
| Hydralic Cylinder for Dump Truck | |
| HS Code | 8412210000 |
| Material of cylinder tube | Alloy Steel, Stainless Steel |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Coating | Chrome plated |
| Temperature | -30ºC~80ºC |
| Working pressure | 16mpa-62mpa |
| Stroke | 300mm-1500mm |
| Color | Red black blue gray, according to your requirements |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Warranty | One year after shipping arrival |
| Payment terms | T/T, L/C, West Union,Paypal |
| Delivery time | 15- 25 days after down payment |
Hydraulic Cylinder Quality Guarantee System:
Program before Delivery
1. Trial Operation Test
2. Start-up Pressure Test
3. Pressure-Tight Test
4. Leak Test
5. Full Stroke Test
6. Buffer Test
7. Testing the Effect of Limit
8. Load Efficiency Test
9. Reliability Test
Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

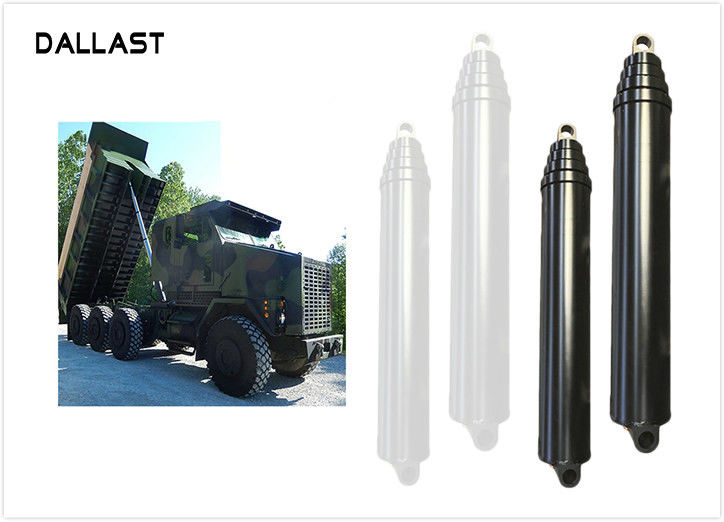

Product Show:
