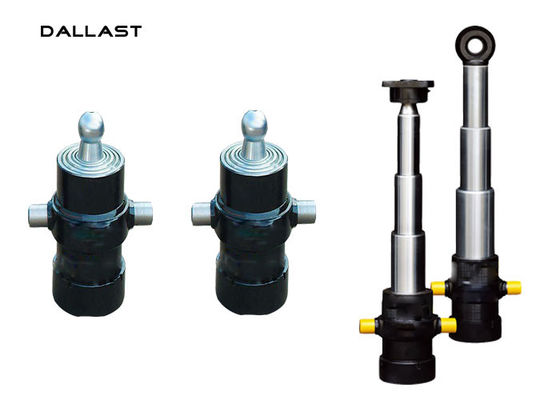

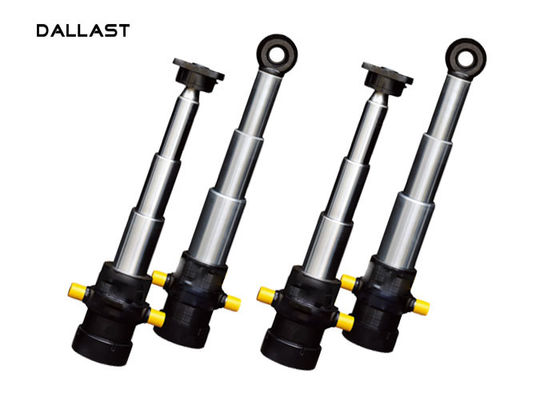

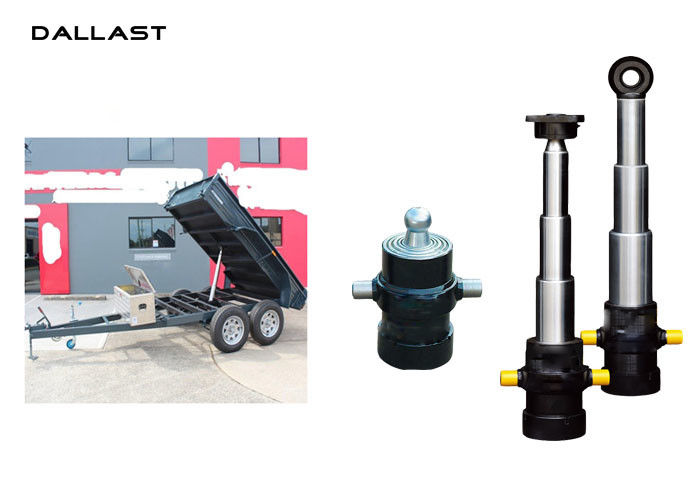

High Pressure Hydraulic Lift Cylinder Single Acting , Long Stroke Hydraulic Cylinder

High Pressure Hydraulic Lift Cylinder Single Acting , Long Stroke Hydraulic Cylinder

    • High Pressure Hydraulic Lift Cylinder Single Acting , Long Stroke Hydraulic Cylinder
    • High Pressure Hydraulic Lift Cylinder Single Acting , Long Stroke Hydraulic Cylinder
    • High Pressure Hydraulic Lift Cylinder Single Acting , Long Stroke Hydraulic Cylinder
  • High Pressure Hydraulic Lift Cylinder Single Acting , Long Stroke Hydraulic Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Pressure Direction: Single Acting Cylinder Adjusted Form: Regulated Type
    Place Of Origin: Shandong China Material: Steel
    Structure: Telescoping Hydraulic Cylinder Pressure: Middle Pressure

    Hydraulic Single Acting Long Stroke High Pressure Hydraulic Lift Cylinder



    TECHNICAL SPECIFICATION:
    Lifting capacity 3000kg/ 6600Lbs
    Max.lifting height 1000mm
    Min.height 105mm
    Lifting time 30S
    Overall length for platform 1400mm
    Overall width for platform 1760mm
    Width between platform 700mm
    Motor power 2.2kw
    Power supply 220V/380V/415V
    Air supply 6-8bar
    Weight 627Kg/1382.3lb



    China dallast Hydraulics works with companies in all types of industries, including trucking(car tailgate), food processing, manufacturing, heavy equipment, medical equipment, material handling(dock leveler, hydraulic/electric scissor lift, hydraulic/electric stacker, electric forklift )and more. In companies as diverse as they come, and in countries all over the world, our products can be found.



    Model

    Bore diameter

    mm

    Installation distance

    mm

    Stage

    Stroke

    mm

    4TG-E180*800 180 140 4 800
    4TG-E160*800 160 140 4 800
    4TG-E150*830 150 160 4 830
    4TG-E140*800 140 140 4 800
    4TG-E140*730 140 140 4 730
    4TG-E135*800 135 140 4 800
    4TG-E135*730 135 140 4 730
    4TG-E130*750 130 110 4 750
    3TG-E150*800 150 140 3 800
    5TG-E130*750 130 140 5 750
    3TG-E130*900 130 140 3 900
    4TG-E110*1360 110 140 4 1360
    3TG-E110*1530 110 140 3 1530
    3TG-E110*1350 110 140 3 1350
    3TG-E110*1020 110 140 3 1020
    3TG-E110*900 110 260 3 900
    2TG-E110*1020 110 140 2 1020
    3TG-E90*1155 90 140 3 1155
    3TG-E90*1020 90 140 3 1020
    3TG-E90*900 90 260 3 900
    3TG-E90*750 90 140 3 750
    2TG-E90*900 90 140 2 900
    2TG-E90*600 90 260 2 600
    2TG-E90*500 90 260 2 500
    3TG-E70*750 70 140 3 750



    Customer build is the first principle for DALLAST Hydraulic



    We can design piston hydraulic cylinder for what you want if you can provide us the following technical parameters:

    1. Bore Diameter;

    2. Piston Diameter;

    3. Stroke;

    4. Working pressure;

    5. Installation Distance.

    Custom for you as your drawing design for you as your requirement!!!



    Hydraulic cylinders are key to the movements of load handling equipment.

    After a repeated number of cycles a certain amount of wear is to be expected, so we offer seal kits for maintenance of cylinders, giving your machine continued top performance and an extended life cycle.

    Whether you need a replacement hydraulic cylinder to bring your machine back to life, or you simply need to replace a cylinder component we provide high quality and quick solutions. In case of accident

    replacement of complete cylinder is recommended over to guarantee cylinder performance which is comparable to a new cylinder. The replacement hydraulic cylinders are pressure tested to deliver constantly the highest quality spare parts.



    About Us
    We produce hydraulic cylinder over 10 years. Now having all kinds of advanced equipment’s more than 200 sets, such as: Hole grinding machine made in American, full-function CNC machine, computer checking platform and so on.
    Single-acting hydraulic cylinder is our superstar production, it is recognized around the world for its good performance.



    Advantage of our production
    1. Use a new rolling technology to ensure the precision of cylinder inside hole is very high

    2. The thickness of cylinder up to 16mm, it can meet the strength requirement when the truck is overloaded

    3. The diameter of piston rod reaches 90mm, it will not be bending under normal use

    4. Use 3 seal-rings to seal piston rod, it can life-long use


    We promise:

    A. High quality and security hydraulic cylinders
    B. Manufacturers selling price is favorable
    C. Product variety, a lot of models
    D. Fast delivery time
    E. Best after-sale service
