| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Specification: | Steel | Pressure Direction: | Single Acting Cylinder |
|---|---|---|---|
| Adjusted Form: | Regulated Type | Painting: | Anti Rust Painting |
| Place Of Origin: | Shandong China | Work Temperature: | Normal Temperature |
| High Light: | electric telescopic cylinder,elescoping hydraulic ram |
||

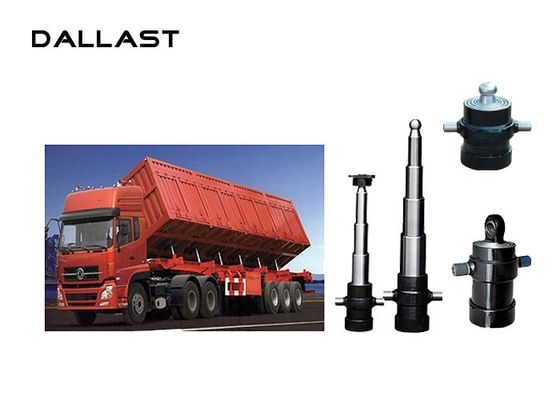

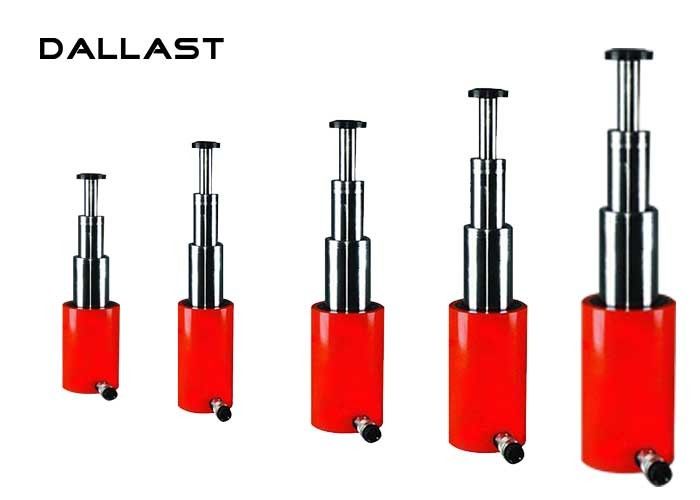

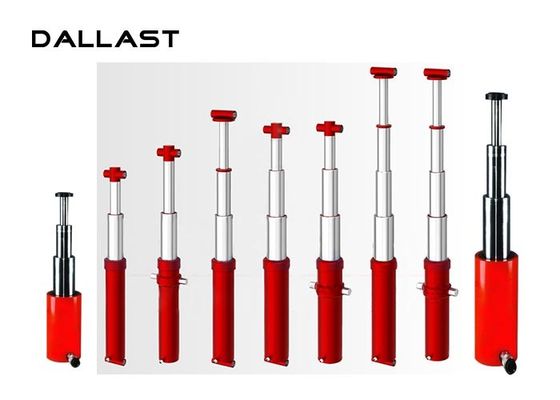

ISO 9001 Certification Telescopic Hydraulic Ram FC Multistage Side Dumper
| Model | Stage | Working pressure | Bore diameter | Installation distance | Stroke |
| DALLAST4TG-E180*800 | 4 | 16MPa | 180 mm | 140mm | 800mm |
| DALLAST4TG-E160*800 | 4 | 16MPa | 160mm | 140mm | 800mm |
| DALLAST4TG-E150*830 | 4 | 16MPa | 150mm | 160mm | 830mm |
| DALLAST4TG-E140*800 | 4 | 16MPa | 140mm | 140mm | 800mm |
| DALLAST4TG-E140*730 | 4 | 16MPa | 140mm | 140mm | 730mm |
| DALLAST4TG-E135*800 | 4 | 16MPa | 135mm | 140mm | 800mm |
| DALLAST4TG-E135*730 | 4 | 16MPa | 135mm | 140mm | 730mm |
| DALLAST4TG-E130*750 | 4 | 16MPa | 130mm | 110mm | 750mm |
| DALLAST3TG-E130*900 | 3 | 16MPa | 130mm | 140mm | 900mm |
| DALLAST3TG-E110*1530 | 3 | 16MPa | 110mm | 140mm | 1530mm |
| DALLAST3TG-E110*1350 | 3 | 16MPa | 110mm | 140mm | 1350mm |
| DALLAST3TG-E110*1020 | 3 | 16MPa | 110mm | 140mm | 1020mm |
| DALLAST3TG-E110*900 | 3 | 16MPa | 110mm | 260mm | 900mm |
| DALLAST3TG-E90*1155 | 3 | 16MPa | 90mm | 140mm | 1155mm |
| DALLAST3TG-E90*1020 | 3 | 16MPa | 90mm | 140mm | 1020mm |
| DALLAST3TG-E90*900 | 3 | 16MPa | 90mm | 260mm | 900mm |
| DALLAST3TG-E90*750 | 3 | 16MPa | 90mm | 140mm | 750mm |
| DALLAST2TG-E90*900 | 2 | 16MPa | 90mm | 140mm | 900mm |
| DALLAST2TG-E90*600 | 2 | 16MPa | 90mm | 260mm | 600mm |
| DALLAST2TG-E90*500 | 2 | 16MPa | 90mm | 260mm | 500mm |
| Mounting way: |
Standard features: |
|
|
1. Single-acting applications |
|
|
2. Standard color: Black |
|
3. End fixed with flange
|
3. Ports: SAE(NPTF port or other can be available) |
|
|
4. All Seals: Manufactured to US specification |
|
5. Middle fixed with pendulum shift
|
5. Apply LOCTITE to rod end thread |
|
6. End with single earring
|
6. 100% hydro-pressure test |
|
7. According to your demand
|
7. Rod surface treatment: Superior quality chrome plated |
Our services
All our hydraulic cylinder products with 1 year warranty period.
If happened problems in the usage of warranty time, please send the damaged spare parts pictures for us, we will send the new one freely for you via express or by air. And urgent questions, please make a call for us.
What are our strengths?
We have all the equipment to produce hydraulic cylinders.
We provide design services according to your requirements.
We can supply metric and imperial size cylinder.
Use imported seals as required.
We own our own electroplating factory.
Complete quality control system.
ST52,16Mn,45#,20# tube
Chrome plated thickness >30 micron
Single/double acting
3~5 stages cylinder
Working Pressure: 16~22Mpa or more high pressure
Various mounting type
Easy installation
High quality guarantee
Low friction seals
Constant speed and force
How do we produce hydraulic cylinder?
1. Raw material purchasing
2. Rough finish
3. Fine finishing
4. Surface treatment
5. Assembly work
6. Testing
7. Packing delivery
Advantage of our production
1. Use a new rolling technology to ensure the precision of cylinder inside hole is very high
2. The thickness of cylinder up to 16mm, it can meet the strength requirement when the truck is overloaded
3. The diameter of piston rod reaches 90mm, it will not be bending under normal use
4. Use 3 seal-rings to seal piston rod, it can life-long use
DALLAST Hydraulic cylinder is pioneer in Hydraulic Cylinder Manufacturers in Asia. DALLAST Hydraulic cylinders carry a warranty period of 12 months whether it is the standard tie rod or welded hydraulic cylinders or the custom built threaded and block / Clamp hydraulic cylinders, we stick to our high-Quality Standards and ensure that only imported sealing and guidance systems are always used.
