| Place of Origin: | Shandong China |
| Brand Name: | DALLAST |
| Certification: | GS CE ISO 9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Rod Seal: | Polyurethane U-Cup | Cylinder Diameter: | 80mm |
|---|---|---|---|
| Standard: | Standard | Power: | Hydraulic |
| Mounting Style: | Front Flange | Sample: | Available |
| High Light: | multi stage telescopic hydraulic cylinder,hollow hydraulic cylinder |
||

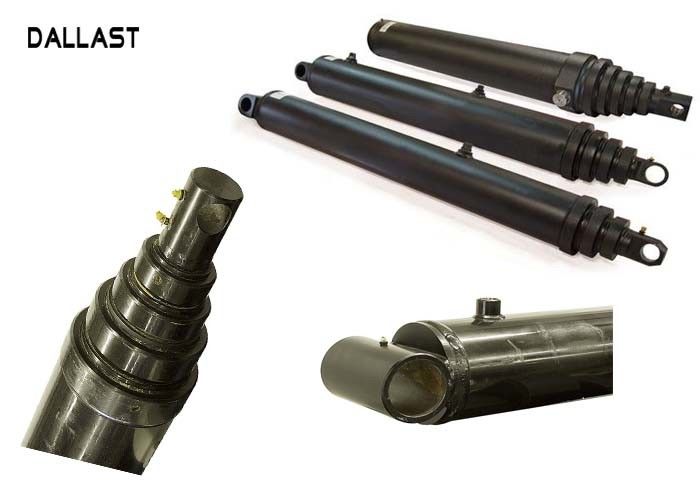

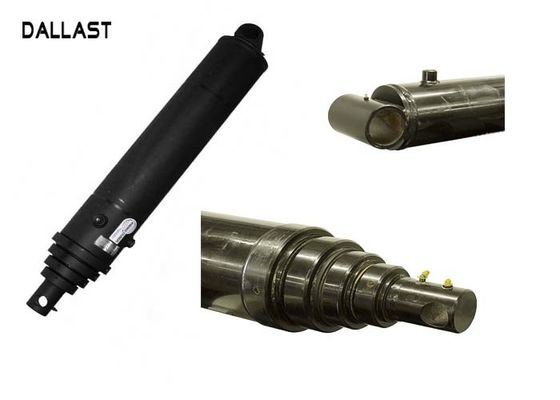

6 8 10 Inch Welded Industrial Heavy Duty Flange Multi Stage Hydraulic Cylinder
Specification
| Name: 6 8 10 Inch Welded Industrial Heavy Duty Flange Multi Stage Hydraulic Cylinder |
| Cylinder inner dia: 200mm |
| Rod dia: 120mm |
| Oil port thread: m22*1.5 |
| Stroke: 50mm |
| Working pressure: 5-36Mpa |
| Type: Single acting |
| Lifting Capacity(Ton): 10T |
| Cylinder material: #20#45steel |
| Rod material: hard chrome planted |
We are involved in manufacturing, wholesaling and exporting an eminence range of Heavy Duty Hydraulic Cylinder, which is fabricated at par with global principles from well class basic material. We also accept customized Heavy Duty Hydraulic Cylinder as per specific requirements and different spares are also available with us. Furthermore, the wide quality tests also make sure their improved durability and rigid construction. These cylinders are also available at economical costs.
| Model No. | First Stage Diameter | Stage | Stroke | Closed Length | Open Length |
| 4TG F6*135 | 6'' | 4 | 135" | 47.19" | 182.19" |
| 4TG F6*156 | 6'' | 4 | 156" | 53.62" | 209.62" |
| 4TG F7*120 | 7" | 4 | 120" | 44.12" | 164.12" |
| 4TG F7*135 | 7" | 4 | 135" | 48.43" | 183.44" |
| 4TG F7*140 | 7" | 4 | 140" | 49.75" | 189.75" |
| 4TG F7*156 | 7" | 4 | 156" | 53.75" | 209.75" |
| 4TG F7*161 | 7" | 4 | 161.75" | 55.31" | 217.06" |
| 4TG F7*167 | 7" | 4 | 167" | 56.38" | 223.38" |
| 4TG F7*180 | 7" | 4 | 180" | 61.12" | 241.12" |
| 4TG F8*148 | 8" | 4 | 147.75" | 51.50" | 199.25" |
| 4TG F8*156 | 8" | 4 | 156" | 53.75" | 209.75" |
| 4TG F8*161 | 8" | 4 | 160" | 55.75" | 215.75" |
| 4TG F8*170 | 8" | 4 | 170" | 57.25" | 227.25" |
Our Advantage
1. Customization and OEM service is acceptable for us.
2. All our hydraulic cylinders and accessories obtained ISO9001:2008 certification.
3. Samples can be providing to you before starting cooperation.
4. We are factory and can assure the prompt delivery time.
5. Packing can be customized. Often using standard export wooden case packing.
Available Features Include:
• Single-acting, double-acting
• A wide variety of mounting configurations and end mechanisms
• A variety of integral valves
• Special housing and rod materials for corrosive or hostile environments
• Various packing, seal, and wiper materials for optimum performance and life in the customer's application
• Various surface treatments and finishes for optimum performance and life in the customer's application
FAQ:
1. Are you a manufacturer?
Yes, we focus on the hydraulic industry for 15 years.
We are professional manufacturer in hydraulic. We will provide competitive price.
2. What is your warranty?
Our products are all available for one-year free warranty and product lifetime consulting service.
3. How to ship your product?
We are transported by sea, by air or by international express.
According to your needs.
4. Do you support OEM service?
Yes. OEM service is available.
We are pleased to process according to the customer's drawings.
Dallast was established in 1999 as a manufacturer for hydraulic cylinder, offering superior quality of any styles and sizes. ODM and OEM orders are welcomed. With an uncompromising commitment to innovation and excellence, Dallast has earned solid reputation for the effectiveness and reliability. Dallast’s success can be attributed to continuous development and testing of new hydraulic solutions designed to solve your problems of hydraulic equipment.
