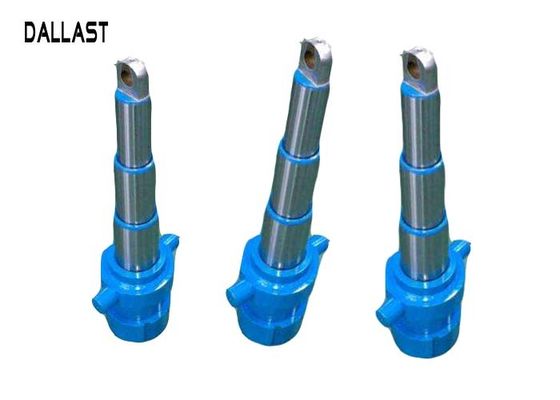

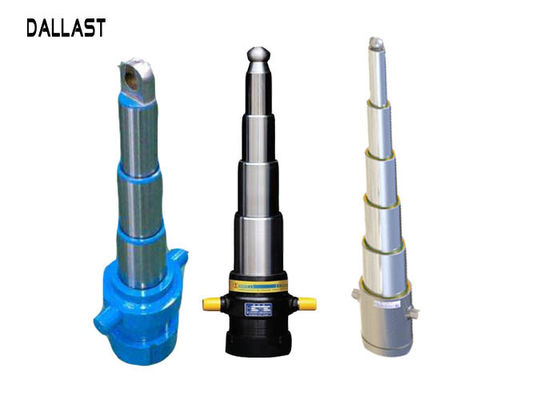

5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder

5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder

    • 5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder
    • 5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder
    • 5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder
  • 5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Or High Temperature Seal Kit: Nok, Hallite, Parker Etc
    Structure: Multistage Telescoping Piston Rod: Stainless Steel
    Pressure: Low Pressure Capacity: 12-50 Tons

    5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder



    DALLAST manufactures telescopic hydraulic cylinders of various stroke lengths and capacity.



    Introduction:

    1. A multistage / telescopic configuration hydraulic cylinder uses "telescoping" cylindrical housings to extend the length of the cylinder. A series of hydraulic tubes are nested like sleeves that telescope within each other. They are used to provide a long total output travel with as many as 6 stages or sleeves.



    2. An external force is required to return the cylinder to the retracted position.





    Application:

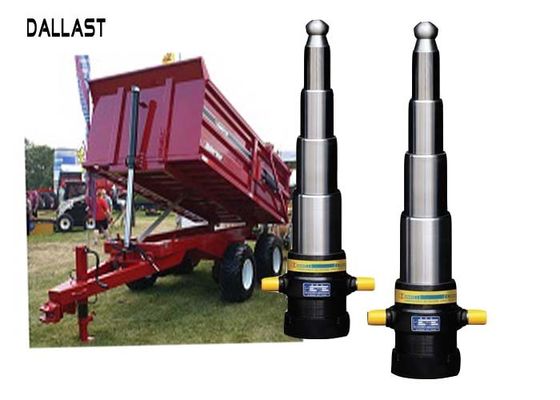

    A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back. Dump trailers, aerial trucks, lift tables and the list goes on...



    Advantages:

    1. Improved quality system

    2. Doubled manufacturing and warehousing area

    3. High quality products

    4. Very competitive price

    5. Great Service

    6. Alternative Rod Materials (Nitrided Material, Custom Materials)

    7. Custom Designed Sealing Solutions to your Leakage Specification





    Type Pressure(mm) Stroke (mm)

    Installation center distance

    (mm)

    capacity(tons)
    3TG-E150X850QZ 16 850 150 12
    4TG-E130X800QZ 16 800 125 15
    5TG-E130X800QZ 16 800 115 20
    5TG-E140X800QZ 16 800 115 12
    5TG-E140X1000QZ 16 1000 125 13



    If you are interested in our products, contact us and send us the drawings:

    The drawing details are as follows.

    A. The drawing details are as follows.
    Bore size

    Stroke length



    Rod diameter

    Mounting type



    Mounting length

    Paint color requirement



    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting
    5. Operating pressure





    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Material:

    Stainless steel is used in many of our designs to ensure corrosion, it does not end the life of the cylinder prematurely. Many stainless steel threads are coated with a proprietary substance to prevent thread galling to facilitate ease of assembly over the life of the cylinder, when periodic maintenance is required such as seal replacement.



    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details







    5 Stage Telescopic Hydraulic Cylinder for Dump Trailer , Hydraulic Ram Cylinder
