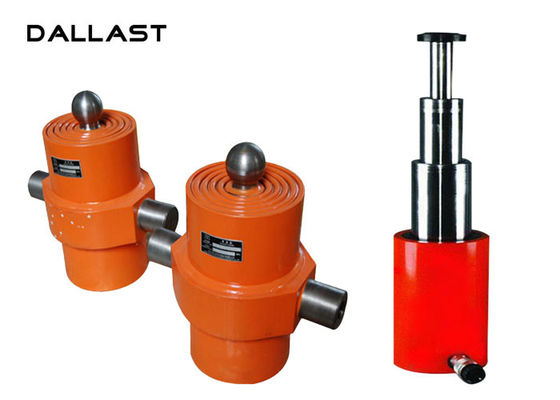

GS Multi Stage Hydraulic Cylinder Chrome Front End Telescopic Tipper

GS Multi Stage Hydraulic Cylinder Chrome Front End Telescopic Tipper

    • GS Multi Stage Hydraulic Cylinder Chrome Front End Telescopic Tipper
    • GS Multi Stage Hydraulic Cylinder Chrome Front End Telescopic Tipper
    • GS Multi Stage Hydraulic Cylinder Chrome Front End Telescopic Tipper
  • GS Multi Stage Hydraulic Cylinder Chrome Front End Telescopic Tipper

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Model Number: 3/4/5/6 Stage Type: Hydraulic Single Cylinder
    Painting: Anti Rust Painting Maximum Stroke: Requirements
    Sample: Available Certificate: ISO 9001:2008

    Chrome Front End Telescopic Tipper Multi Stage Hydraulic Cylinder



    Multi stage hydraulic cylinders for tipper:
    (1) Diameter of the hydraulic cylinder we can make (inch):9.375"/8.125"/7"/6"/5"/4"/3"
    (2) Stage of the hydraulic cylinder we can make:3 Stage/4 Stage/5 Stage
    (3) Stroke of the hydraulic cylinder we can make:Range from 2000mm to 12000mm.
    (4) Pressure of the hydraulic cylinders :2000PSI-3000PSI.



    Cylinder Multi stage hydraulic cylinder
    Piston Rod Ground, polished and quenched. long service life
    Piston High Grade and precisely machined ductile Iron
    Cap/Head Precision machined steel
    Seals Parker/Nok/Hallite/DZ
    Ports

    Qingdao

    Mounting Standard type
    Used Tipper TrailDumper



    What is the information we require for customer before we make the quotation?

    1. Bore & Rod Dia. ( inch or mm)

    2. The closed & opened length (Stroke)

    3. Mounted Type: like bearing or clevis

    4. Working & Testing Pressure

    5. The oil port size, thread size

    6. Assembling way & distance

    7. Drawing or blueprint is enough for quotation



    Process Flow

    1. Customer RFQ

    2. Information Confirm (Drawing or samples specific reuqiremnets)

    3. Quotation (Reply in 24 hours)

    4. Order Confirm (PI, PO)

    5. Sample producing (upon receipt of 30% deposit)

    6. If sample approved, go to main production

    7. Delibery ( balance T/T, Customs clerance documents, 70% against B/L



    The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.



    FAQ:

    1. Have you been exported high pressure hydraulic cylinder to overseas?

    We have been exporting multi stage hydraulic cylinder to USA, Canada, Germany, Italy, France, Russia, etc.



    2. How long does it take to process orders?

    It usually takes 20-30 days to process.



    3. Can I order high pressure hydraulic cylinder samples for testing?

    Of course, our high pressure hydraulic cylinder quality will satisfy you.



    4. high pressure hydraulic cylinder Quality control

    All the high pressure hydraulic cylinder are calibrated with real working condition,and tested before shipping as qualified product.





    GS Multi Stage Hydraulic Cylinder Chrome Front End Telescopic Tipper
