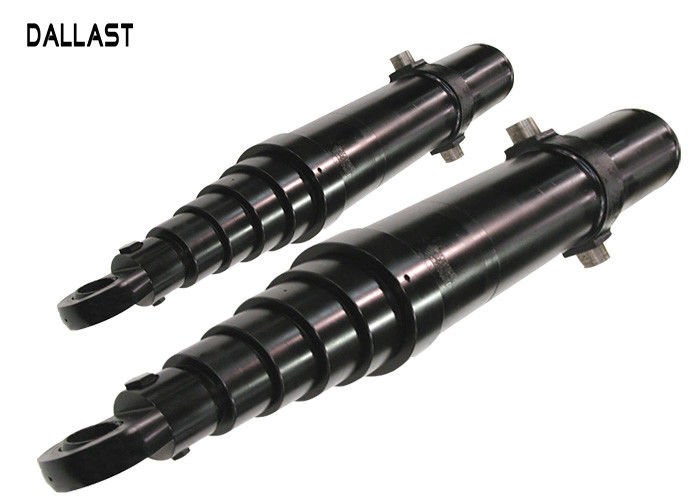

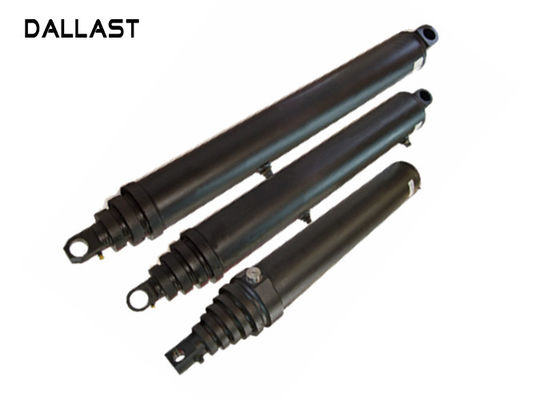

Multi Stage Telescopic Hydraulic Ram Oil Cylinders Single Acting Agricultural Farm Truck

Multi Stage Telescopic Hydraulic Ram Oil Cylinders Single Acting Agricultural Farm Truck

    • Multi Stage Telescopic Hydraulic Ram Oil Cylinders Single Acting Agricultural Farm Truck
    • Multi Stage Telescopic Hydraulic Ram Oil Cylinders Single Acting Agricultural Farm Truck
    • Multi Stage Telescopic Hydraulic Ram Oil Cylinders Single Acting Agricultural Farm Truck
  • Multi Stage Telescopic Hydraulic Ram Oil Cylinders Single Acting Agricultural Farm Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Delivery Time: 15-25 Days
    HS Code: 8412210000 Structure: Telescopic Cylinder
    Origin: Shandong, China Working Method: Straight Trip
    Means Of Transport: Shipping / Air Grade: Heavy Duty


    Multi Stage Telescopic Hydraulic Oil Cylinders Single Acting Agricultural Farm Truck



    Cylinder Advantages:

    • Main export market:USA, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites, Singapore
    • Material:Alloy steel,Carbon steel,Stainless steel,27SiMn
    • Seal:Kaden,Hallite, Parker,NOK,SKF etc
    • Rod :Chrome plated and quenched.Has good mechanical properties, long service life
    • Cylinder:Honing machining /boring /rolling
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification
    • Experience in export North America, Australia, Asia, Middle East, Africa
    • We are professional manufacturer and supplier in hydraulic cylinder.
    • We do accept OEM manufacturing. We will provide competitive price and make the exact cylinder according to your specification and drawing.
    • We have professional R&D team with rich design experience.
    • We also establish strict but scientific product testing system so that products have perfect performance.
    • One year warranty and long time track service is offered to solve any problems you meet after sale.

    Product Description:
    Sealing system
    All the hydraulic cylinders produced by our company adopt the seal ring products of Parker, Merkel and Busak+Shamban.
    Guide sleeve
    The sleeve is made of high strength spheroidal graphite cast iron and high strength steel under buffering inner bore copper welding treatment.
    Cylinder block
    The cylinder block is made of high strength carbon steel. The internal surface of the cylinder is designed with proper strength, size, and thickness of cylinder body, and it has good degree of finish and rigidity under the tumbling treatment which minimizes the inner friction, improves the wear resistance and prolongs the service life.
    Application
    Construction vehicle, excavator, crane, construction machinery, shipbuilding, metallurgy industry, hydro power project, agriculture machinery etc.

    Technical Specifications of Hydraulic Cylinder:
    1. hydraulic cylinder with hollow plunger design allows for both pull and push forces
    2. single-acting,spring return
    3. baked surface can resist increasesd corrosion
    4. collar threads for easy fixture
    5. nickel-plated,floating center tube increases product life
    6. For the detailed technical specifications, pls contact us for related product catalogues





    FAQ:

    1. How can I be sure the part will fit my excavator?
    Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.



    2. How about the payment terms?
    We usually accept T/T. other terms also could be negotiated.



    3. What is your minimum order?
    It depends on what you are buying. Normally, our minimum order is USD5000.

    Parameter:



    • diameter of bore & rod
    • stroke length
    • mounting style
    • mounting distance
    • working pressure
    • ports
    • seals
    • special modifications
    • paint color requirement
    • operating pressure

    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
        (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5



    Cylinder and Cylinder of the Advantages and Disadvantages:
    1. As the hydraulic system uses pressure is generally in the range of 0.2-1.0Mpa, so the cylinder is the driving force can not do high-power components. Hydraulic cylinders can be done relatively large power device, use the hydraulic system;
    2. From the media about the air can be unlimited, no cost and supply difficulties, the gas will be used directly into the atmosphere, convenient, no pollution, hydraulic oil is the opposite;
    3. The air viscosity is small, the resistance to less than the hydraulic oil;

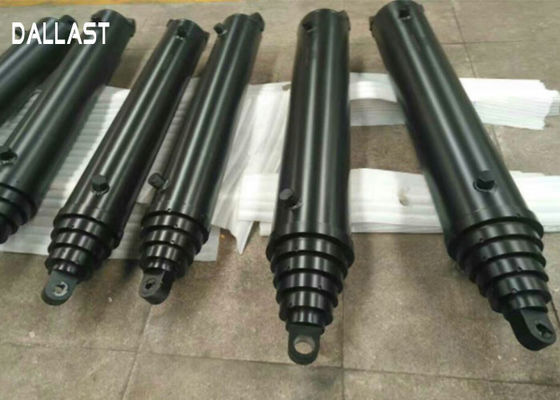

    Product Show:

    Multi Stage Telescopic Hydraulic Ram Oil Cylinders Single Acting Agricultural Farm Truck
