|Place of Origin:||Qingdao, China|
|Certification:||GS, RoHS, CE, ISO9001|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||wooden case, carton box|
|Delivery Time:||15-25 work days per year|
|Payment Terms:||T/T, Western Union, D/P, D/A, L/C|
|Supply Ability:||50000 pieces|
|Voltage:||12 Volt||Pressure:||3000 PSI|
|Temperature:||Normal Or High Temperature||Application:||Dump Trailer|

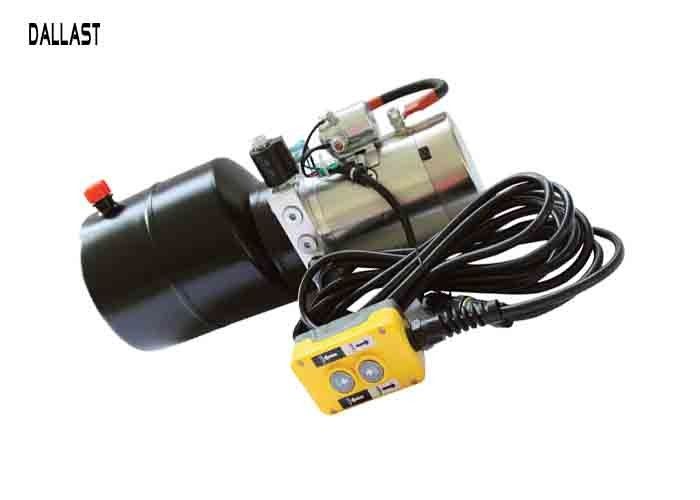

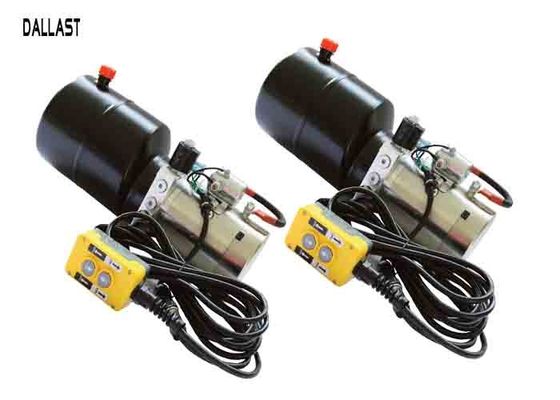

Hydraulic Power Unit 12 Voltage 3000 PSI Work with Single Acting Cylinder
This NorTrac 12 Volt DC Single-Acting Power Unit can be used for OEM or replacement applications. The power up, gravity down circuit allows for fast lifting and lowering. Ideal for use with fork lifts, electric pallet trucks, scissor lift tables, mini lift tables, dump trucks/trailers, or a variety of other applications utilizing remote pendant controls.
|Reservoir Capacity||1.32 gal.|
|Outlet Port (in.)||9/16-18 SAE O-ring port|
|Dimensions L x W x H (in.)||18 5/16 x 8 x 8 1/8|
|Manufacturer's Warranty||1 year Limited Warranty|
|Ship Weight||31.0 lbs|
For dump trailer:
The Hydraulic Power Unit works excellent on dump trailer, with the long controller cord, it is able to operate it from the cab of the vehicle. It was easy to install in place of the old unit. Our company recommend this product to anyone owing a dump trailer or anyone needed to replace their hydraulic unit. Please feel free to contact us, if needed.
1. Can I use double acting cylinder with this unit?
Yes. But some mode just for the single acting cylinder.
2. How is it mounted. I don’t see any brackets or mounting plates?
(1) There are two mounting holes on the bottom of the block that are 3-1/4" inch apart. The thread size is 3/8" 16TPI.
(2) There are threaded holes on each side and bottom of the metal block in front of the pump.
3. What fluid should be use in this unit?
The recommended fluid for this power unit is ATF (automatic transmission fluid) DEXRON-III.
We offer 12 months warranty.
From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.
We manufacture a range of Hydraulic Power Unit. These products are available with OEM & ODM.
