12 Volt Hydraulic Power Pack with 2 Hydraulic Rams Hoses and Fitting Kit with Pendant

12 Volt Hydraulic Power Pack with 2 Hydraulic Rams Hoses and Fitting Kit with Pendant

    • 12 Volt Hydraulic Power Pack  with 2 Hydraulic Rams Hoses and Fitting Kit with Pendant
    • 12 Volt Hydraulic Power Pack  with 2 Hydraulic Rams Hoses and Fitting Kit with Pendant
    • 12 Volt Hydraulic Power Pack  with 2 Hydraulic Rams Hoses and Fitting Kit with Pendant
  • 12 Volt Hydraulic Power Pack  with 2 Hydraulic Rams Hoses and Fitting Kit with Pendant

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Voltage: 12 Volt Pressure: 1000-3000 PSI
    Temperature: Normal Or High Temperature Application: Construction, Vehical, Etc.
    OEM: Yes Design: Custom
    Cylinder: Double Acting Hydraulic Oil Cylinder Tank Size: Custom

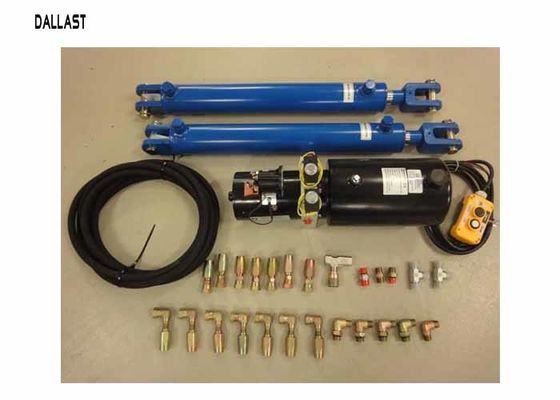

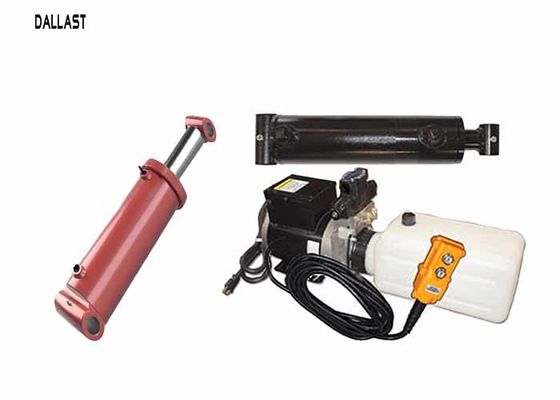

    Hydraulic Power Pack 12 Volt with 2 Hydraulic Rams, Hoses and Fitting Kit with Pendant



    This hydraulic power pack is in great working condition. It was used with double or single acting hydraulic cylinder.

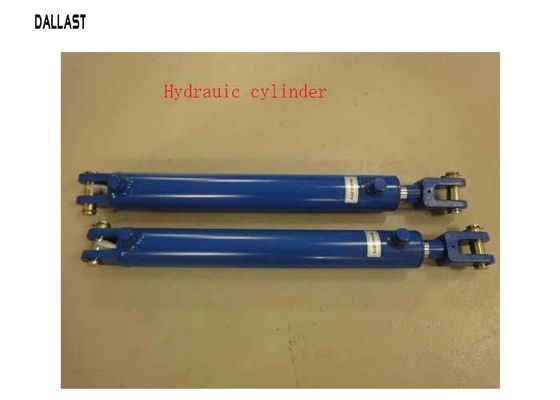

    Low-height cylinders are built to provide the maximum power to height ratio and are ideal for confined spaces where other cylinders will not fit. The cylinder is another type of low-height cylinder engineered with mounting holes for easy installation.



    Application:

    This NorTrac 12 Volt DC Single-Acting Power Unit can be used for OEM or replacement applications. The power up, gravity down circuit allows for fast lifting and lowering. Ideal for use with fork lifts, electric pallet trucks, scissor lift tables, mini lift tables, dump trucks/trailers, or a variety of other applications utilizing remote pendant controls.



                                                   Specification
    Reservoir Capacity 1.32 gal.
    Outlet Port (in.) 9/16-18 SAE O-ring port
    Max. PSI 3000
    Volts 12
    Max. RPM 3,000
    Dimensions L x W x H (in.) 18 5/16 x 8 x 8 1/8
    Manufacturer's Warranty 1 year Limited Warranty
    Ship Weight 31.0 lbs
    Displacement (cc) 2.4
    Listing Type NEW
    Stock number S63
    Refcode TA417601
    Tank capacity 220L



    For dump trailer:

    The Hydraulic Power Unit works excellent on dump trailer, with the long controller cord, it is able to operate it from the cab of the vehicle. It was easy to install in place of the old unit. Our company recommend this product to anyone owing a dump trailer or anyone needed to replace their hydraulic unit. Please feel free to contact us, if needed.



    1. Can I use double acting cylinder with this unit?

        Yes. But some mode just for the single acting cylinder.



    2. How is it mounted. I don’t see any brackets or mounting plates?

    (1) There are two mounting holes on the bottom of the block that are 3-1/4" inch apart. The thread size is 3/8" 16TPI.

    (2) There are threaded holes on each side and bottom of the metal block in front of the pump.



    3. What fluid should be use in this unit?

    The recommended fluid for this power unit is ATF (automatic transmission fluid) DEXRON-III.





    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    We manufacture a range of Hydraulic Power Unit. These products are available with OEM & ODM.
