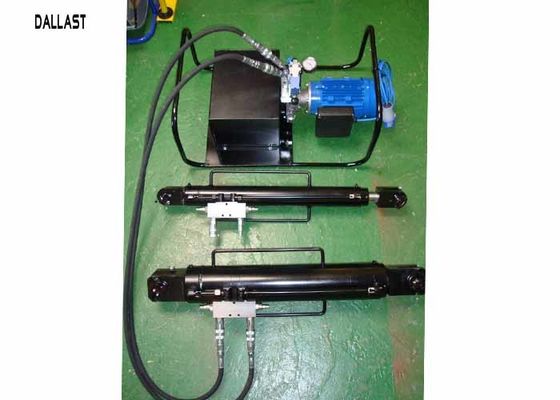

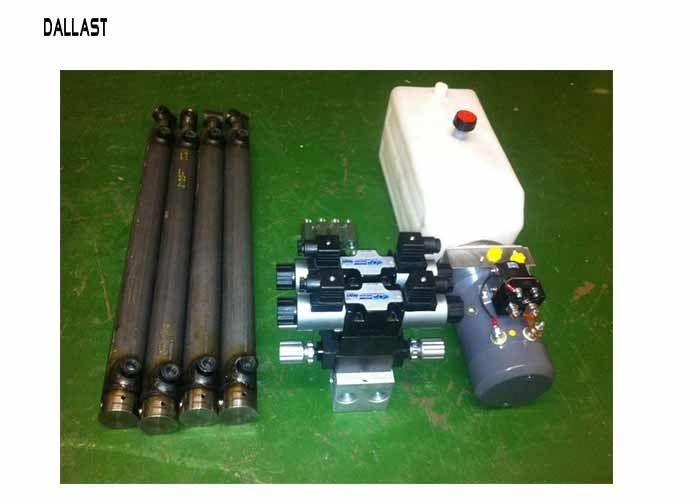

Hydraulic Power Pack Work with Double Acting Cylinder Remote Control 220 Voltage

Hydraulic Power Pack Work with Double Acting Cylinder Remote Control 220 Voltage

    • Hydraulic Power Pack Work with Double Acting Cylinder Remote Control 220 Voltage
    • Hydraulic Power Pack Work with Double Acting Cylinder Remote Control 220 Voltage
  • Hydraulic Power Pack Work with Double Acting Cylinder Remote Control 220 Voltage

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Voltage: 220 Volt Temperature: Normal Or High Temperature
    Application: Heavy Duty, Vehical, Etc. Design: Custom
    Cylinder: Double Acting Hydraulic Oil Cylinder Tank Size: Custom

    Hydraulic Power Pack Work with Double Acting Cylinder Remote Control 220 Voltage



    Application:

    Offshore Oil and Gas

    Marine and Deck Equipment

    Lifting Equipment

    Industrial

    Test Equipment



    Standard Features of our power pack design:

    · Driven by Continuous-duty rated electric motor or diesel engine

    · Modular Type of integrated manifold block to eliminate as much hard piping as possible.

    · Built for industrial, marine and offshore oil and gas application.

    · Pump control in an opened-loop circuit (suction circuit), in closed-loop circuit (boosted circuit) and semi opened-loop with make up.

    · Hydraulic control system with constant displacement pump, variable displacement pump, load sensing & variable displacement pump, load sensing & constant displacement pump and system with secondary control.

    · Design pressure range into 3,000Psi, 5000Psi, 6000Psi and up to 10,000 Psi (690 Bar).

    · Proper piping, filtration and cooling system design.



    Low-height cylinders are built to provide the maximum power to height ratio and are ideal for confined spaces where other cylinders will not fit. The cylinder is another type of low-height cylinder engineered with mounting holes for easy installation.



                                                       Specification
    Reservoir Capacity 1.32 gal.
    Outlet Port (in.) 9/16-18 SAE O-ring port
    Max. PSI 3000 PSI, 5000 PSI, 7000 PSI etc.
    Volts 220V
    Max. RPM 3,000
    Dimensions L x W x H (in.) 18 5/16 x 8 x 8 1/8
    Manufacturer's Warranty 1 year Limited Warranty
    Ship Weight 31.0 lbs
    Displacement (cc) 2.4
    Listing Type NEW
    Stock number S63
    Refcode TA417601
    Tank capacity 220L
                                      Please feel free to contact us, if needed.







    1. Can I use double acting cylinder with this unit?

        Yes. But some mode just for the single acting cylinder.



    2. How is it mounted. I don’t see any brackets or mounting plates?

    (1) There are two mounting holes on the bottom of the block that are 3-1/4" inch apart. The thread size is 3/8" 16TPI.

    (2) There are threaded holes on each side and bottom of the metal block in front of the pump.



    3. What fluid should be use in this unit?

    The recommended fluid for this power unit is ATF (automatic transmission fluid) DEXRON-III.





    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    We manufacture a range of Hydraulic Power Unit. These products are available with OEM & ODM.
