| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, L/C, D/P |
| Supply Ability: | 1 Piece Per Year |
| Hardness: | HRC 45-55 | Acting Way: | Single Acting |
|---|---|---|---|
| Working Medium: | Hydraulic Oil | Power: | Hydraulic |
| Adjusted Form: | Regulated Type | Delivery Time: | 15-25 Days |
| High Light: | dump truck hydraulic ram,dump truck telescopic cylinder |
||
Single Acting Welded Parker Dump Trailer Hydraulic Cylinder For Sale
Hydraulic Cylinder:
Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirements. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).
Custom Hydraulic Cylinder (OEM):
Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements . If you require our engineer to make a design , please advise us the
following specification :
1. Rated pressure.
2. Working pressure.
3. Test pressure.
4. Working condition and environment, for example, temperature, working frequency.
5. Pulling force ,and return stroke force.
6. Pulling and return speed.
7. Assembly size.
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements.
10. Piston rod surface treatment requirements, for example chromating film thickness ,
Surface hardness etc .
11. Painting and other spare parts requirements.
Three Advantages for Hydraulic Cylinder:
Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Parameter:
| Application: | Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc. |
| Stroke: | 50mm to 16000mm |
| Bore: | 40mm to 1000mm ( 1 ½’’ – 40’’) |
| Shaft: | 12mm to 500mm ( ½’’ -20’’) |
| Work pressure: | 16Mpa to 70Mpa (2250 PSI – 10150 PSI) |
| Seal: | Hallite, Parker, Merkel, DingZing, etc. |
| Paint: | Red, Grey, Yellow, Black, etc. |
| Material: | St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc. |
| Certificate: | ABS, Lloyds, SGS, etc. |
| Package: | Bubble-wrap packing, then in wooden case. |
|
Single Acting Dump Trailer Welded Parker Hydraulic Cylinders For Sale
|
||||||
| Model | Extended Stages |
Working Pressure | Max. stage | Max. stroke | Lifting Capacity |
Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
| 129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| 149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| 149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| 149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| 149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| 169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
| 169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| 169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| 169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| 169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| 185-4E-4640 | 4 | 16-19 | 185 | 4640 | 30-45 | 5.6-6.1 |
| 185-4E-5000 | 4 | 16-19 | 185 | 5000 | 32-50 | 6.2-6.5 |
| 185-4E-5390 | 4 | 16-19 | 185 | 5390 | 40-60 | 6.2-6.8 |
| 185-4E-5460 | 4 | 16-19 | 185 | 5460 | 40-65 | 6.5-7.3 |
| 191-5E-5780 | 5 | 16-19 | 191 | 5780 | 40-70 | 6.9-7.7 |
| 191-5E-6200 | 5 | 16-19 | 191 | 6200 | 45-80 | 7.3-8.2 |
| 191-5E-7130 | 5 | 16-19 | 191 | 7130 | 50-85 | 7.8-8.5 |
| 191-5E-9030 | 5 | 16-19 | 191 | 9030 | 55-90 | 10.0-11.0 |
FAQ:
| Questions: | Answers: |
| Q1: Are you a manufacturer or a trader? | We are manufacturer ,our own factory is located in Liaoning province, China. |
| Q2: How do you protect customer's right? | DALLAST's work habit is to sign confidential agreement with own/outside factories all the time before start any project. |
| Q3: How long shall we get the quotation? | Processing time for Enquiries :1-3 days. |
|
Q4: How long have you been in Hydraulic Cylinder industry? |
Our factory is built in year 2002 . |
| Q5: How about the warranty and after-sale service? |
One year warranty, and we can offer you long-distance after-sale service 7*24h |

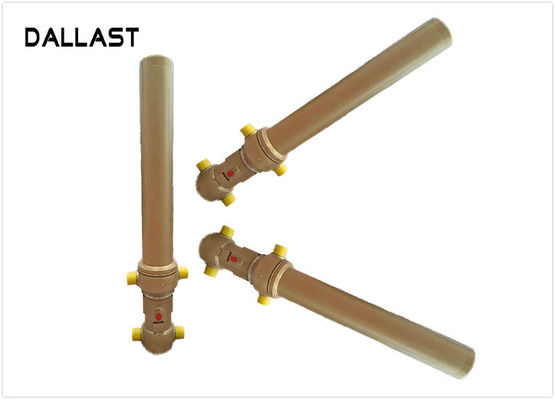

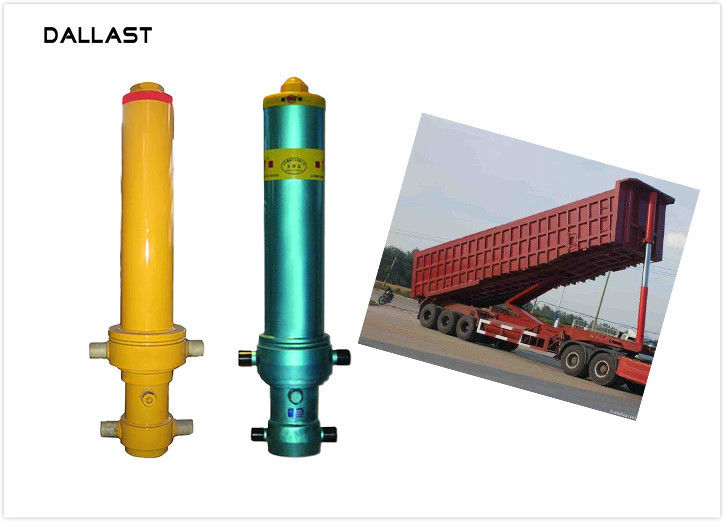

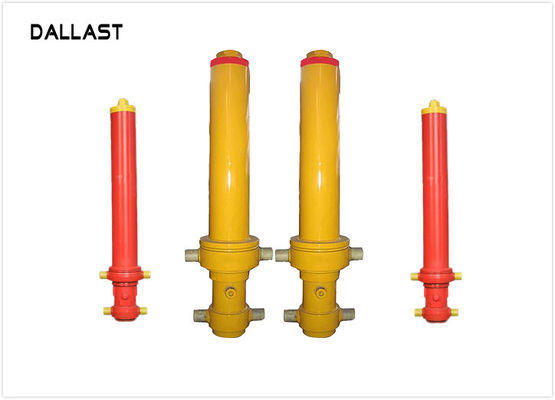

Product Show:
