Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification

Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification

    • Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification
    • Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification
    • Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification
  • Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Model: Single Acting Hydraulic Cylinder Structure: Telescoping Sleeve Cylinder
    Hydraulic Pressure: 16-32 Mpa Material: Alloy Steel,Carbon Steel,Stainless Steel,27SiMn
    Rod: Chrome Plated And Quenched Stage: 2 3 4 5 Stage
    Size: Customized Usage: Agricultural Vehicles ,Tricycle ,Dump Truck,Sanitation Vehicles

    One way Telescopic Multi Stage Agricultural Dump Trailer Hydraulic Cylinder



    Application: The Hydraulic Cylinders can be used for Agricultural Vehicles ,Tricycle ,Sanitation Vehicles  Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;



          Retractable multi-stage sleeve hydraulic cylinder is a long stroke multi-stage sleeve piston rod hydraulic cylinder, retractable hydraulic cylinder, also known as retractable sleeve hydraulic cylinder or multi-stage hydraulic cylinder.
          Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set, the piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinder.
    When pressure oil enters from the rodless chamber, the cylinder with the largest effective area of the piston starts to protrude. When the line reaches the end point, the cylinder with the effective area of the piston begins to protrude.
          Telescopic hydraulic stretching out in order from large to small in order to obtain a long working stroke, the effective cylinder extending the smaller the area, the faster the rate of extension.
    Therefore, the slow out faster, the corresponding hydraulic thrust from large to small; this thrust, speed changes, is suitable for a variety of automatic loading and unloading machinery on the thrust and speed requirements.


    TG series hydraulic cylinder for vechiles

    We have professional R&D team with rich design experience.

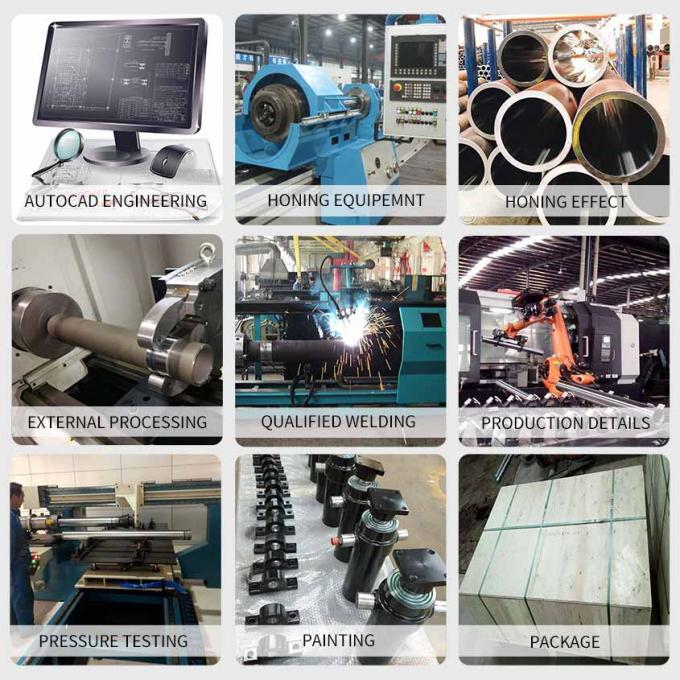

    We also establish strict but scientific product testing system so that products have perfect performance.

    Please kindly send us your drawings, models or providing us your parameters and
    specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.



    Model Pressure
    (Bar)
    Bore diameter
    (mm·)
    Installation distance
    (mm)
    Stroke
    (mm)
    4TG-E180*800 160 180 140 800
    4TG-E160*800 160 160 140 800
    3TG-E150*800 160 150 140 800
    5TG-E130*750 160 130 140 750
    3TG-E130*900 160 130 140 900
    4TG-E110*1360 160 110 140 1360
    3TG-E110*1530 160 110 140 1530
    3TG-E110*1350 160 110 140 1350
    3TG-E110*1020 160 110 140 1020
    3TG-E110*900 160 110 260 900
    2TG-E110*1020 160 110 140 1020
    3TG-E90*1155 160 90 140 1155
    3TG-E90*1020 160 90 140 1020
    3TG-E90*900 160 90 260 900
    3TG-E90*750 160 90 140 750
    2TG-E90*900 160 90 140 900
    2TG-E90*600 160 90 260 600
    2TG-E90*500 160 90 260 500
    3TG-E70*750 160 70 140 750



    Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification

    Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification



    Agricultural Dump Trailer Hydraulic Cylinder Multi Stage TS16949 Certification
