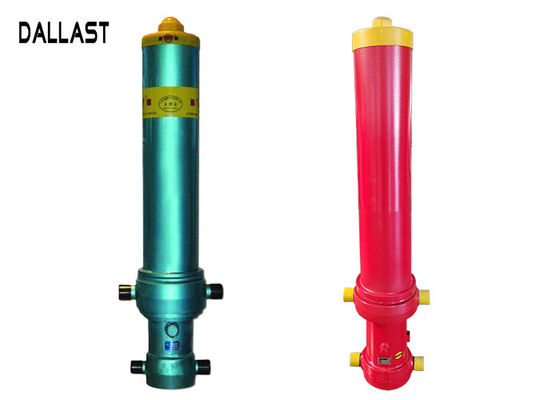

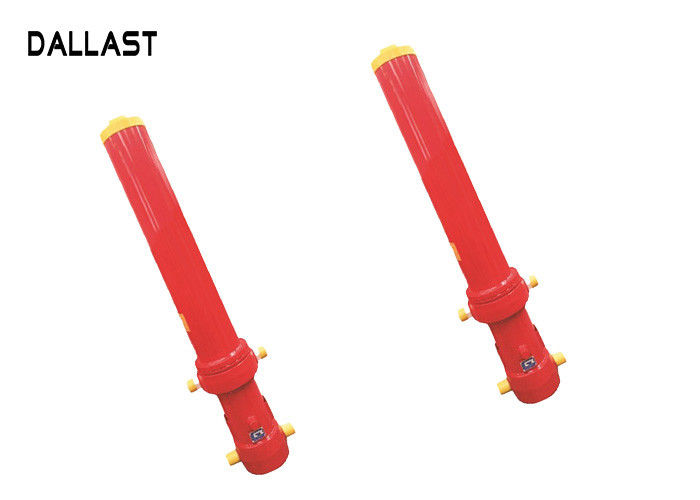

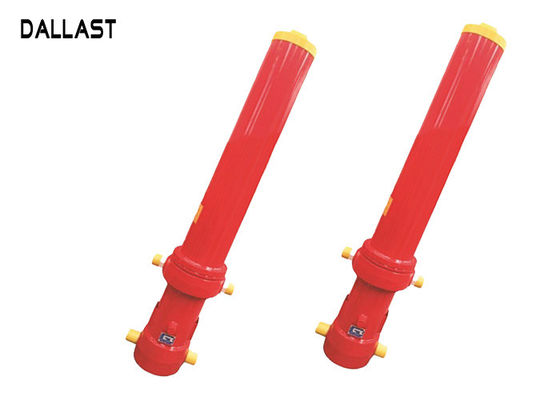

Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction

Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction

    • Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction
    • Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction
    • Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction
  • Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Delivery Time: 15-25 Days
    Structure: Telescopic Cylinder Working Method: Straight Trip
    Warranty: One Year Surface Coating: Sandblasting, Primer Paint, Middle Paint, Finish



    Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction



    Hydraulic Cylinder:
    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).

    Single Acting Hydraulic Cylinder Inner Workings and Uses:
    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

    Parameter:

    No. Model Extension

    Primary

    bushing

    diameter

    Stroke

    upper trunnion

    bottom trunnion

    Lug

    Dia

    Closed

    Length

    Pressure

    ID From

    withins

    From the

    outside

    From

    within

    From

    the

    outside

    1 37TG-F85 X 2743EZ-00 3 85 2726     165.1 228.5 32 195 20
    2 4TG-F 150 X 4280EZ-00 4 150 4280     201 331 60 1394 20
    3 4TG-F172 X 4280 4 172 4280 340 470 245 385 60 343 20
    4 47G-F182X4280ZZ-00 4 182 4280 340 470 245 385 60 343 20
    5 5TG-F196, X 6180ZZ-00 5 196 6180 360 490 270 400 60 343 20
    6 5TG-F221 x 903022-00 5 221 9030 360 490 290 420 65 486 20


    Profile:
    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.

    FAQ:
    Q: how to contact with sales?
    A: you can send inquiry of our products, it will be replied within 3 hours;

    Q: What's the delivery time(ETD), if I make an order?
    A: Normal is 1-2 days, Sometimes 3-5 days

    Q: I want to buy your products, how can I pay?
    A: You can pay T/T, WEST UNION, L/C

    Q: What information should I give to you for inquiry?
    A: You can email us the part number & descriptions of the products you need.


    Product Show:
    Dump Truck Single Acting Telescopic Hydraulic Cylinders With Heavy Duty Welded Construction
