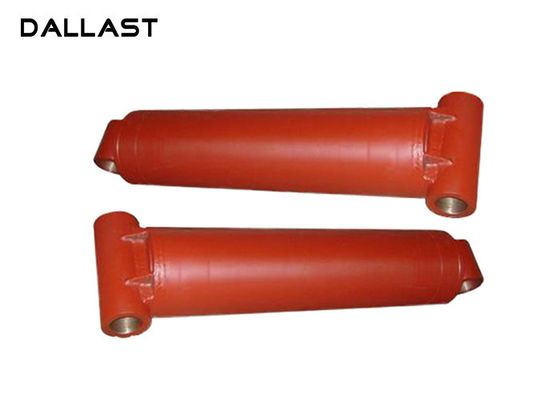

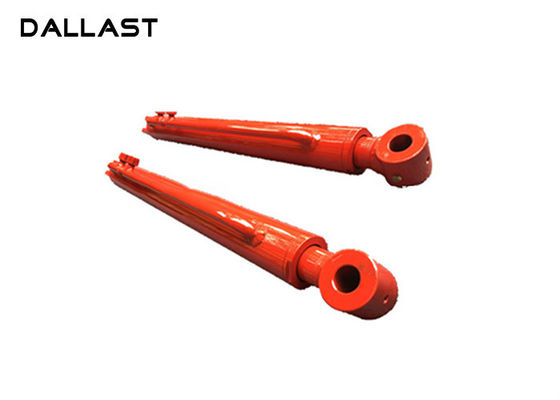

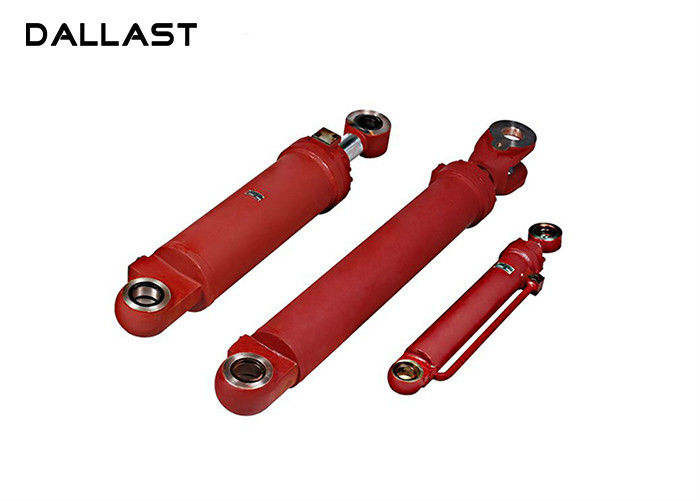

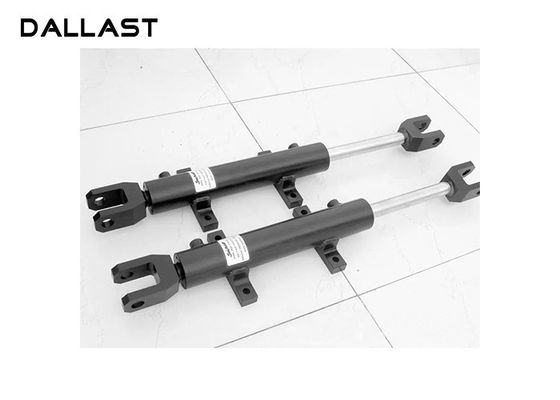

Double Acting Telescopic Hydraulic Ram Garbage Truck Sanitation Vehicles

Double Acting Telescopic Hydraulic Ram Garbage Truck Sanitation Vehicles

    • Double Acting Telescopic Hydraulic Ram Garbage Truck Sanitation Vehicles
    • Double Acting Telescopic Hydraulic Ram Garbage Truck Sanitation Vehicles
    • Double Acting Telescopic Hydraulic Ram Garbage Truck Sanitation Vehicles
    • Double Acting Telescopic Hydraulic Ram Garbage Truck Sanitation Vehicles
  • Double Acting Telescopic Hydraulic Ram Garbage Truck Sanitation Vehicles

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: GS CE ISO9001-2009 TS16949
    Model Number: Standard , Non-standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton box
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Type: Hydraulic Company Work Temperature: -30ºC~100ºC
    Working Method: Straight Trip Mounting Style: Earrings, Flange, Foot Mounting, Screw Thread
    Model: Custom OEM Avilable Seal: Parker, Merkel, Hallite, Kaden
    Honed Tube: 20-2000mm, Heat Treatment, Honing, Rolling Piston Rod: 10-1500mm, Tempering, Plated Nickel, Chrome Or Cer

    Double Acting Garbage Truck Sanitation Vehicles Telescopic Hydraulic Ram





    Model Number Cylinder
    Capacity
    Stroke Maximum
    Cylinder Capacity
    (kN)
    Cylinder
    Effective Area
    (cm2)
    Oil
    Capacity
    (cm3)
    Coll. Height
    (A)
    ton mm Push Pull Push mm Push Pull mm
    SOV-CLRG-502 50 50 539 269 77,0 38,5 385 192 162
    SOV-CLRG-504 100 539 269 77,0 38,5 770 385 212
    SOV-CLRG-506 150 539 269 77,0 38,5 1155 577 262
    SOV-CLRG-508 200 539 269 77,0 38,5 1540 770 312
    SOV-CLRG-5010 250 539 269 77,0 38,5 1924 962 362
    SOV-CLRG-5012 300 539 269 77,0 38,5 2309 1155 412



    Strict Quality Control System



    1. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing

    2. Mechanical performance testing equipment can meet the requirements of mechanical testing, all the use of computer digital display, so theaccuracy is more accurate, so that the mechanical properties of each cylinder barrel has been greatly improved.

    3. Every workpiece is machined according to the confirmed drawings and will be inspected casually by QC according to a certain proportion. The traceable record shall be clear and traceable.

    4. The qualified parts are assembled into one cylinder and then the pressure test will be done.

    5. Before and after assembly, the basic dimensions and workmanship will be inspected again.

    A inspection report will come into being before delivery.



    piston rod:

    1. High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters.

    2. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material.

    3. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available.

    4. The hard chrome plated of the piston rod according to your requirement.



    Piston Seals:

    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.



    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.

    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.

    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    Warranty & Service:

    We offer 12 months warranty.
