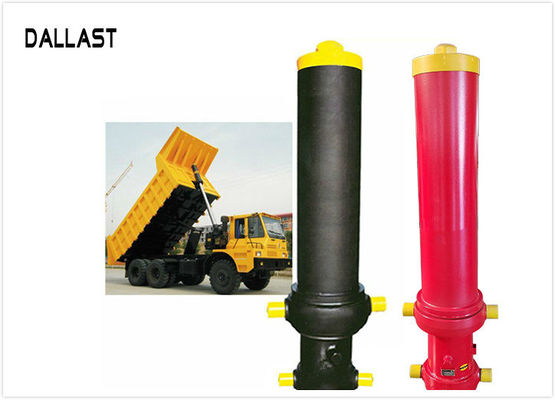

Customized Farm Hydraulic Cylinders Single Acting Long Stroke

Customized Farm Hydraulic Cylinders Single Acting Long Stroke

    • Customized Farm Hydraulic Cylinders Single Acting Long Stroke
    • Customized Farm Hydraulic Cylinders Single Acting Long Stroke
    • Customized Farm Hydraulic Cylinders Single Acting Long Stroke
  • Customized Farm Hydraulic Cylinders Single Acting Long Stroke

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Pressure: Medium Pressure Certification: Gs, RoHS, Ce, ISO9001
    Seals: Parker, Merkel, Hallite Delivery Time: 15-25 Days
    Working Method: Straight Trip Standard: Standard, Nonstandard

    Single Acting Long Stroke Customized Farm Hydraulic Vickers Cylinders


    Hydraulic Cylinder:
    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).
     Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.



    Quality:

    Dallast Technology Co., Ltd is ISO 9001 Certified for Design and Manufacturing of Hydraulic Cylinders. This certification encompassed with Lean Manufacturing allows us to ensure our products are safe, reliable and of superior quality. Learn more about how we implement Lean Manufacturing here.
    Our facility upholds strict cleanliness guidelines at all times. Through a 5S system we maintain a clean and organized environment. This allows us to guarantee your cylinders are produced promptly and efficiently.



    Our in-house designers and R&D department will assist you in developing new designs, redesign or troubleshoot your existing cylinder. Using Solidworks software and innovative materials we custom design cylinders that fit your application. Designers are involved in testing 100% of our products before they leave our facility.

    Company Advantage:
    > Professional manufacturer& supplier of Hydraulic Cylinders for more than 22 years;
    > Hydraulic Cylinders Certification ISO9001:2008, SGS, TS16949, RoHS, CNAS Certification;
    > Experience in export North America, Australia, Asia, Middle East, Africa;
    > Hydraulic Cylinders can be Make according to client's requirements;

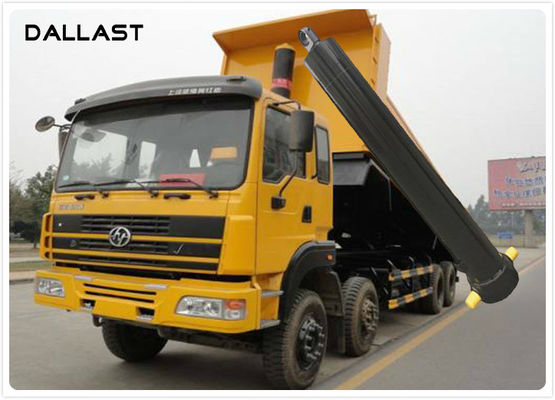

    > The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
    > We are the supplier of Sinotruk, CNHTC, CIMC, Wuzheng, Beiben Truck, Baic Group, FOTON, HOWO, JAC, Sichuan Hyundai, Dayun, Shanxi Automobile, most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.


    Parameter:

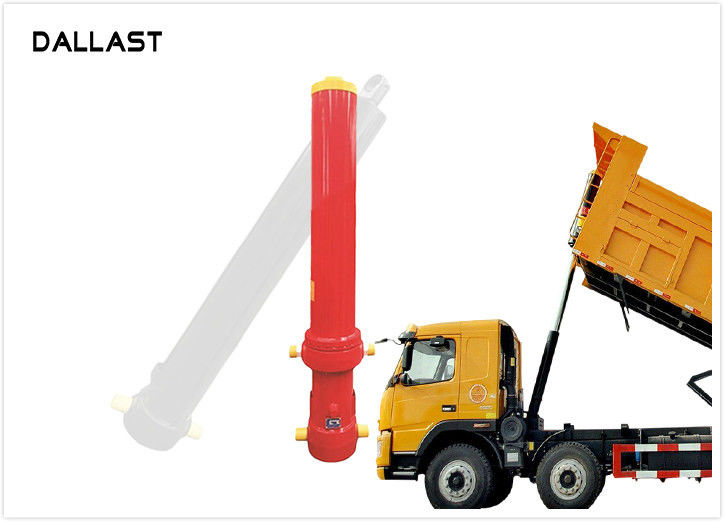

    Single Acting Dump Truck Hydraulic Cylinders



    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5180 4 16-19 169 5180 32-60 6.2-6.9
    169-4E-5390 4 16-19 169 5390 32-60 6.2-6.9
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    This product is used in numerous application including:
    1. Dump truck.
    2. Pump trucks.
    3. Truck mounted crane.
    4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders.
    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers.


    FAQ:
    Q1. What are the same aspects of your cylinder with Hyva cylinder?
    1. Same inside structure.
    2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's

    Q2. Compared with Hyva cylinder, what are your cylinder advantages?
    1. Tubes are chrome plated.
    2. Tubes are quenched and tempered.

    3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
    4. Good quality yet lower price.

    Product Show:
     Customized Farm Hydraulic Cylinders Single Acting Long Stroke
