|Place of Origin:||Qingdao|
|Certification:||GS, RoHS, CE, ISO9001|
|Minimum Order Quantity:||1 pieces|
|Packaging Details:||wooden case, carton box|
|Delivery Time:||15-25 work days per year|
|Payment Terms:||T/T, Western Union, D/P, D/A, L/C|
|Supply Ability:||50000 pieces|
|Design:||Telescoping Cylinder||Pressure:||1000-5800 PSI|
|Temperature:||Normal Or High Temperature||Stroke:||Long Stroke, 500-10000mm|
|Closed Length:||Custom||Rod Diameter:||Custom|

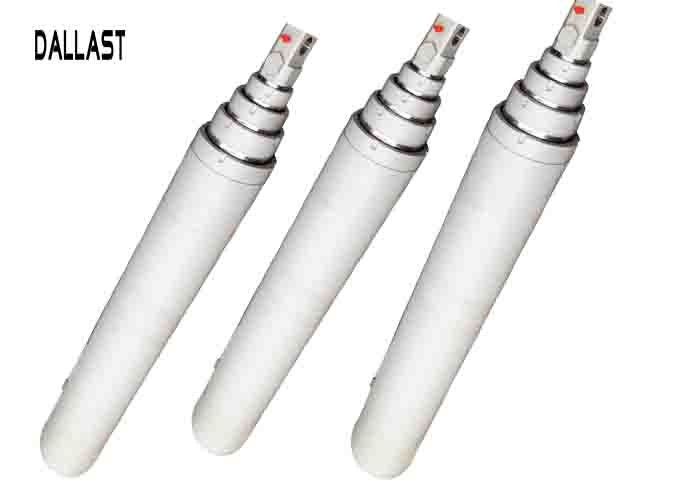

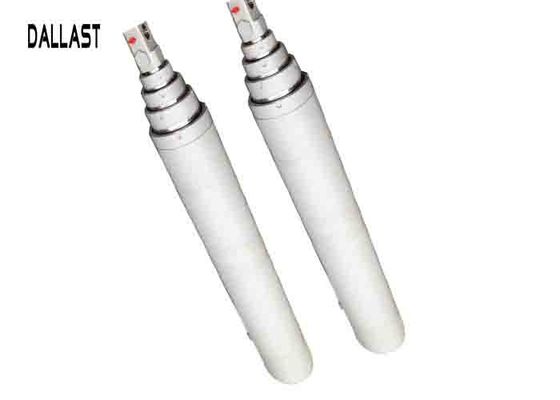

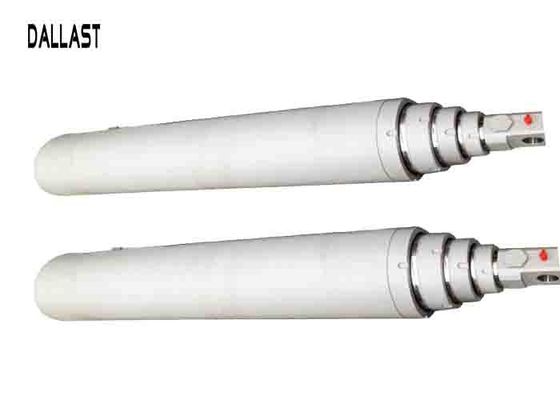

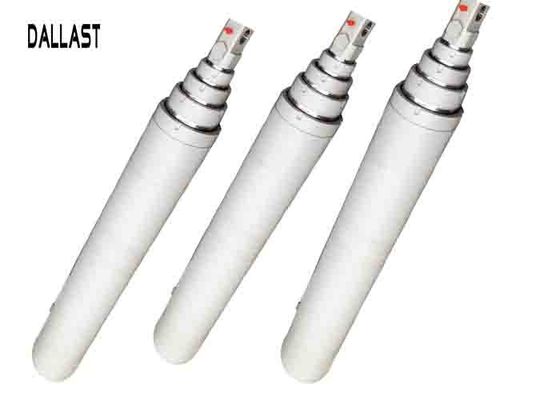

Parker Long Stroke Telescoping Single Acting 24 Inch Hydraulic Cylinder for Truck
Product & Application:
Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.
Can be used on: construction machinery; engineering machinery; mining machinery; lock of water resource project, etc.
Technical Treatment: Quenched and tempered. 1.5-1mm, or 1.03mm per millimetre; the inner hole of the hydraulic cylinder tube usually precision processed by boring,reaming,rolling or honing.By these process can ensure the piston,sealing elements and the support elements move smoothly,then ensure the sealing effect and reduce the abrasion.
Single-acting cylinders transfer force and motion in one direction only. When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement.
Higher corrosion, resistance, abrasive resistance, high durability. Use of word-class international sealing and bearing materials. Special structural design to meet high frequency action.
PARKER(USA); HALLITE(ENGLAND); NOK(JAPA)
Cross tube, clevis, flange, trunnion, spade, pin or custom designs
|material||35#, SAE1045(45#), 35CrMo, 42CrMo4, etc|
|cylinder designs||It include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.|
We can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.
We offer 12 months warranty.
The most common problems when selecting a hydraulic cylinder are as follows:
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
