Single Acting Long Stroke Hydraulic Cylinder 6 / 7 / 8 Inch Stroke Stainless

Single Acting Long Stroke Hydraulic Cylinder 6 / 7 / 8 Inch Stroke Stainless

    • Single Acting Long Stroke Hydraulic Cylinder 6 / 7 / 8 Inch Stroke Stainless
    • Single Acting Long Stroke Hydraulic Cylinder 6 / 7 / 8 Inch Stroke Stainless
    • Single Acting Long Stroke Hydraulic Cylinder 6 / 7 / 8 Inch Stroke Stainless
  • Single Acting Long Stroke Hydraulic Cylinder 6 / 7 / 8 Inch Stroke Stainless

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Model Number: Customization Type: Hydraulic Single Cylinder
    Color: Client's Request Heat Treatment: Quenching
    Factory Visit: Available Material: Hard Chrome Piston Rod

    6 7 8 Inch Stroke Stainless Single Acting Long Stroke Hydraulic Cylinder

    Our hydraulic cylinder more secure, rigid integrated limit prove inner tube take out; more efficient, high-low pressure sealing is adapting to frequent operation; more widely, adapting to different regions and different working situations; more powerful, system pressure reaches 20-24Mpa; more durable, cylinder barrel uses seamless steel pipe, chrome plated on the surface is more reliable, and all the core component are imported; more stable, supported by welded copper ring, oriented longest.

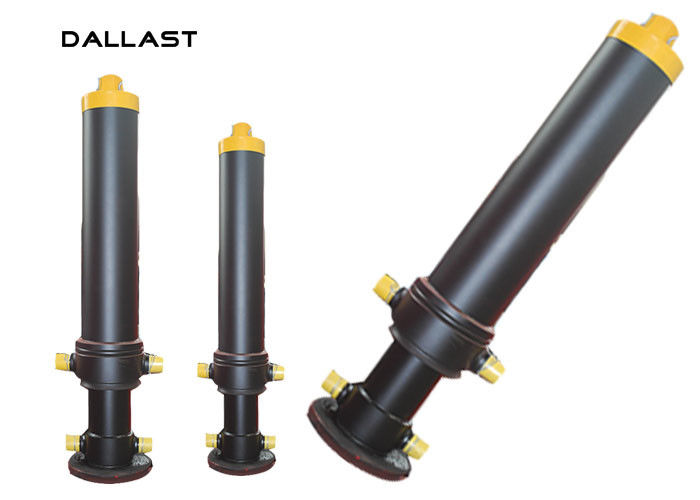

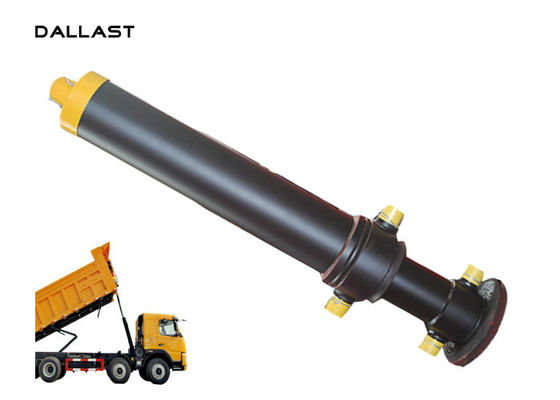

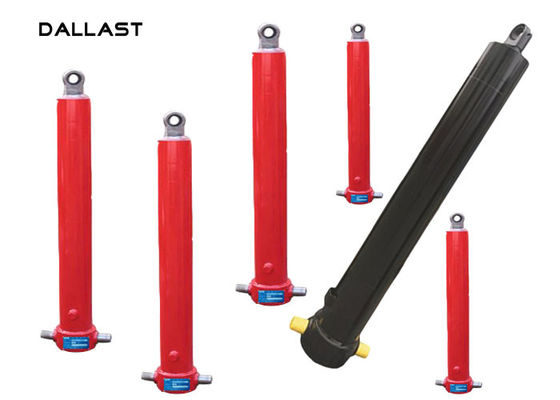

    We can provide you with many sorts of single acting telescopic hydraulic cylinder and multistage telescopic hydraulic cylinder which are widely used for trailers, tippers and dump truck. The bore size of Dump Truck Hydraulic Cylinder is range 75mm to 278mm which can provide the max power of 120t. We also can design it according to your request.







    FC Type Hydraulic Cylinder
    Model Lifting capacity(Ton) Rated pressure(Mpa) Bore diameter
    (mm)
    FC 4TG-E152*4280ZJ 28.3 16 158/136/115/95
    FC 5TG-E152*4280ZJ 28.3 20 158/136/115/95/75
    FC 4TG-E160*5390ZJ 32.2 20 166/141/115/95/75
    FC 4TG-F175*4280ZJ 49 20 181/158/136/115
    FC 4TG-F175*5390ZJ 49 20 181/158/136/115
    FC 4TG-F175*5700ZJ 49 20 181/158/136/115
    FC 5TG-F175*5390ZJ 49 20 181/158/136/115/95
    FC 5TG-F175*5700ZJ 49 20 181/158/136/115/95
    FC 4TG-F185*4650ZJ 54.8 20 191/166/141/115
    FC 4TG-F185*5000ZJ 54.8 20 191/166/141/115
    FC 4TG-F185*5700ZJ 54.8 20 191/166/141/115
    FC 4TG-F185*6180ZJ 54.8 20 191/166/141/115
    FC 5TG-F185*5000ZJ 54.8 20 191/166/141/115/95
    FC 4TG-F200*6000ZJ 64 20 206/181/158/136
    FC 5TG-F200*6500ZJ 64 20 206/181/158/136/115
    FC 4TG-F175*4280BH 49 20 181/158/136/115
    FC 4TG-F175*4650BH 49 20 181/158/136/115
    FC 4TG-F175*5390BH 49 20 181/158/136/115
    FC 4TG-F185*5700BH 54.8 20 191/166/141/115
    FC 4TG-F185*6000BH 54.8 20 191/166/141/115
    FC 4TG-F185*6180BH 54.8 20 191/166/141/115
    FC 4TG-F200*6000BH 64 20 206/181/158/136
    FC 4TG-F175*4280JT 49 20 181/158/136/115
    FC 4TG-F175*4650JT 49 20 181/158/136/115
    FC 4TG-F175*5390JT 49 20 181/158/136/115
    FC 4TG-F200*5700JT 64 20 206/181/158/136
    FC 4TG-F200*6180JT 64 20 206/181/158/136
    FC 4TG-F175*4450HT 49 20 181/158/136/115
    FC 5TG-F200*6180AF 64 20 206/181/158/136/115





    Dallast series of products, larger bore, lifting stronger.

    Maximum working pressure M36PA, anti-high pressure capability.

    After special treatment of high-quality, high-precision 27SIMN seamless steel pipe, higher yield strength, unified procurement by the company to ensure product quality as one.

    Hinge up and down: the overall forging process.

    New sealing structure: high quality international famous brand seals to ensure that the cylinder will not leak oil under high pressure and harsh conditions.

    The improved cylinder limit structure combines the advantages of many domestic and foreign advanced products to maximize the safety and reliability of the dump truck.

    The new guide structure using high-tech materials, aerospace lubricants added materials to improve the sliding orientation of molybdenum disulfide, the cylinder lift more smooth, longer service life.

    Dallast cylinder with a common domestic installation size, can make the cylinder to achieve higher interchangeability



    Control of hydraulic system leakage control program

    The choice of hydraulic components often plays a decisive role in the leakage of the hydraulic system

    This determines our technical staff in the new product design, the improvement of old products, dump truck hydraulic lifting system custom,

    The choice of cylinder, pump, valve, seal, hydraulic accessory, etc., The principle of selecting the best, choosing the best and the cheapest will be prudent and comparative.
