| Place of Origin: | China |
| Brand Name: | DALLAST or on request |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | customied |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 20-30 work days or on request |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Pressure: | 100-350 Bar | Temperature: | Normal Or High Temperature |
|---|---|---|---|
| Structure: | Double Acting | Cylinder Type: | Piston Cylidner |
| Material: | Stainless Steel | Rod Material: | Chrome |
| High Light: | long stroke single acting hydraulic cylinder,small bore long stroke hydraulic cylinders |
||

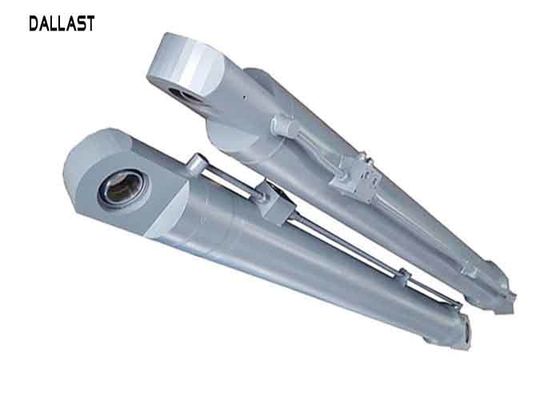

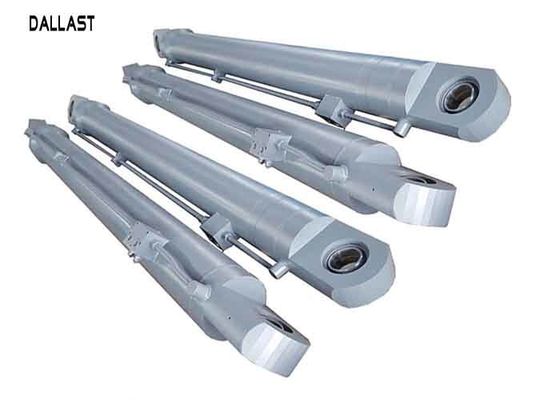

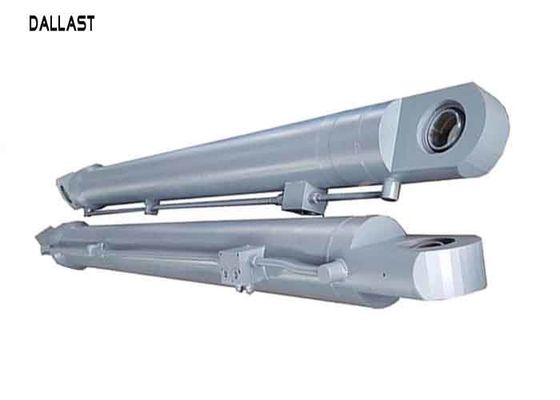

Heavy Duty Special Long Stroke Hydraulic Cylinder Piston 6 Inch Bore Double Action
Features:
1. Made from special high strength steel to reduce overall weight.
2. Heavy structure angle rear hinge for superior strength.
3. Pre-installed, integral body automatically positions itself, stores securely out of the way when not in use.
4. Capacity range: according to the type and model of the hydraulic cylinder.
5. Precision machined steel head and cap provides close concentricity and accurate alignment between piston, tube, piston rod and rod bearing.
6. In accordance with ISO 6020/1 –350bar; Varied fixing elements; Normal, high temperature and low friction sealing; Adjustable cushioning for stroke ends.
7. Precisely designed; Corrosion resistance; Tough in construction; Reducing human effort; High-quality raw materials.
Application:
They are appropriate for industrial applications.
Bridge engineering
Ship cranes
Reach stackerMarine Drilling Platform
Piston Seals:
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Warranty:
We offer 12 months warranty.
Tips:
Do you need special cylinders?
Our technicians will help you to design them and we will manufacture them according to your requirements.
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings.
| A. The drawing details are as follows. | |
| Bore size |
Stroke length
|
| Rod diameter |
Mounting type
|
| Mounting length |
Paint color requirement
|
|
B. The product application description details |
|
| 1. Type of machine(loader, steer loader, excavator, and etc.) | |
|
2. Type of function(hoist, swing, steering, and etc.) 3. Type of structure(piston, telescopic) |
|
| 4. Single or double acting | |
| 5. Operating pressure | |
