| Place of Origin: | China |
| Brand Name: | DALLAST or on request |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | customied |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case, carton box |
| Delivery Time: | 20-30 work days or on request |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 50000 pieces |
| Temperature: | Normal Temperature | Pressure: | Normal Pressure |
|---|---|---|---|
| Piston Seal: | Urethane Seal, Hyva, Parker Etc. | Painted: | Semi-gloss Black, Gray, Red Etc. |
| Bore Size: | Custom | Rod Size: | Custom |
| High Light: | tractor loader hydraulic cylinders,agricultural hydraulic cylinder |
||

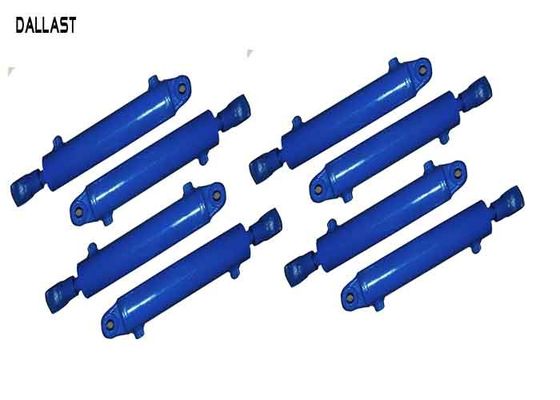

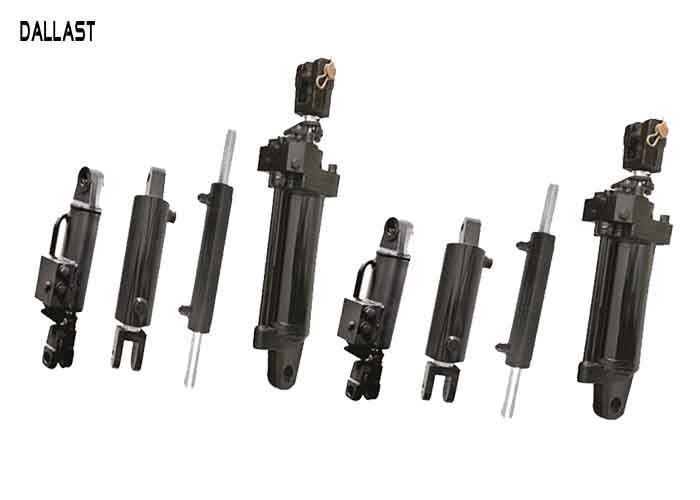

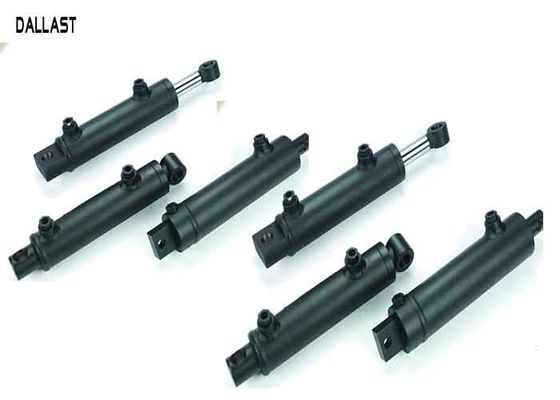

Special OEM Tractor Farm Hydraulic Cylidners Piston Chrome Rod Dual Action
Benefits:
Piston rod: Stainless steel, alloy steel, carbon steel etc.
End cap: Casting seal
Mounting style: Pins and clips included
Rod wiper: Urethane snap in
Packing: Goods are packed with export standing standard
Warranty: We offer 12 months warranty
Low noise:Good quality and low noise
Low energy:The oil way design perfectly and can save the energy,avoid wast
Operating temperature: -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen
Speed range: Speed range of operation (excluding cushion parts) is less than 200mm/s
| Tractor Hydraulic Ram | ||||
| Mode NO |
Cylinder bore |
The diameter of rod |
Stroke |
Mounting distance |
| FT800.55A.012 | 80 | 32 | 200 | 535 |
| TB600.55B.2a | 75 | 32 | 110 | 423 |
| TB600.55C.2a | 75 | 32 | 110 | 423 |
| FT700.55D.011 | 100 | 40 | 200 | 516 |
| FT1004.55.8 | 90 | 35 | 200 | 535 |
| TG1204.551.1 | 100 | 40 | 185 | 535 |
| TG1854.551.2 | 110 | 70 | 182 | 535 |
| TG1854.551.3 | 110 | 70 | 182 | 535 |
| type |
operating pressure (Bar) |
diameter of rod(mm) |
total stroke (mm) |
closed length (mm) |
cylinder bore (mm) |
| HSG80/50*190-800 | 160 | 80 | 190 | 800 | 80 |
| HSG80/50*210-510 | 230 | 80 | 210 | 510 | 75 |
| HSG70/30*760-1055 | 340 | 70 | 760 | 1055 | 75 |
| HSG40/22*270-495 | 210 | 40 | 270 | 495 | 100 |
| HSG50/25*150-800 | 203 | 50 | 150 | 800 | 90 |
| HSG63/35*500-780 | 109 | 63 | 500 | 780 | 110 |
Tips:
Many mounting styles
Several bore sizes and in varying strokes
Many of these sizes are available
We offer OEM, ODM. If you needed, please feel free to contact us and send us the drawings:
A
1. Bore size
2. Stroke length
3. Rod diameter
4. Mounting type
5. Mounting length
6. Paint color requirement
B. The product application description details
1. Type of machine(loader, steer loader, excavator, and etc.)
2. Type of function(hoist, swing, steering, and etc.)
3. Type of structure(piston, telescopic)
4. Single or double acting
5. Operating pressure
Installation method:
The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Delivery:
1.We export from Qingdao port by sea.
2. Goods will be delivered on time.
3. Goods can arrive at the destination safely.
