| Place of Origin: | Shandong, China |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet or as your requirements |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1 Piece Per Year |
| Adjusted Form: | Regulated Type | Certification: | Gs, RoHS, Ce, ISO9001 |
|---|---|---|---|
| Available Temperature: | -40℃ To 80℃ | Standard: | Standard, Nonstandard |
| Hardness: | HRC 45-55 | Load Capacity: | 50 Ton |
| Test: | 100% Test | Model Number: | OEM |
| High Light: | tractor loader hydraulic cylinders,agricultural hydraulic rams |
||
Piston Cylinders for Agricultural Truck dual action hydraulic cylinder
Description:
Double-acting , hydraulic return
Safety valve built-in prevents damage in case of accidental over-pressurization
Unique bearing design withstands side load forces up to 10% of rated cylinder capacity without scoring
Dismountable hardened grooved saddles are standard
Baking varnished external coating and specially plated piston
Base mounting holes are standard on each model
Plunger wiper reduces contamination, extending cylinder life
Custom Order Notice:
We have more items for this Series,please Contact usfor details.
Capacity 50 - 1000 ton
Stroke 50 - 10000 mm
Max. Working Pressure 900 bar
Custom hydraulic cylinder (OEM):
Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements. If you require our engineer to make a design, please advise us the
following specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example
FAQ:
|
Parker Dual Action Hydraulic Cylinder 16MPa Working Pressure Heavy Duty
|
|
| Sealing system | Choose PARKER, MERKEL, NOK and other imports of high-end seal, combined with the company's unique sealing system design to prevent sand and dust, reduce oil leakage, access to the best piston rod film. |
| Cylinder | Cylinder body made according to suitable strength and size, the inner surface of which is processed by rolling to improve the surface hardness and abrasion resistance while ensuring the dimensional accuracy and roughness. |
| Tube |
1.Tubes are quenched and tempered. 2.Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025. |
| Piston rod | based on high-frequency quenching, has been coated with a hard chrome surface to improve rust, abrasion and damage resistance. Surfaces obtained after precision polishing have a uniform texture and high finish to ensure Good surface oil film, improve product life. |
| Buffer / Safety Functions | Built-in cushioning mechanism that absorbs impact at the stroke end, as required, and also allows easy installation of various valves with functions such as slow return, balance and emergency shutdown. |
| Price | Good quality yet lower price. |
|
Quality control · All specification is designed by professional engineer · All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden. · All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose · Ensure goods can arrive at customer safely · One-year warranty and life long time follow up service is offered to solve any problems you met when use our products |
|
Product Parameter:
|
Bore Diameter (mm) |
Rod Diameter (mm) |
Working pressure 16MPa
|
Max. Stroke (mm)
|
||||
| speed |
Thrust F1(KN) |
Pull F2(KN) | Normal Dia | Connection thread | |||
| 1.46 | 2 | 1.46 | 2 | ||||
| 40 | 22 | 28 | 20.11 | 14.02 | 10.25 | 10 | M18x1.5 |
| 50 | 28 | 36 | 31.42 | 21.56 | 15.13 | 10 | M18x1.5 |
| 63 | 36 | 45 | 49.88 | 33.59 | 24.43 | 15 | M27x2 |
| 80 | 45 | 56 | 80.42 | 54.98 | 40.99 | 15 | M27x2 |
| 90 | 50 | 63 | 101.79 | 70.37 | 51.91 | 15 | M27x2 |
| 100 | 56 | 70 | 125.66 | 86.21 | 64.08 | 20 | M33x2 |
| 110 | 63 | 80 | 152.05 | 102.18 | 71.63 | 20 | M33x2 |
| 125 | 70 | 90 | 196.35 | 134.77 | 94.56 | 20 | M33x2 |
| 140 | 80 | 100 | 246.30 | 165.88 | 120.64 | 25 | M42x2 |
| 150 | 85 | 105 | 282.74 | 191.95 | 144.20 | 25 | M42x2 |
| 160 | 90 | 110 | 321.70 | 219.91 | 169.65 | 25 | M42x2 |
| 180 | 100 | 125 | 407.15 | 281.49 | 210.80 | 32 | M48x2 |
| 200 | 110 | 140 | 502.65 | 350.60 | 256.53 | 32 | M48x2 |
| 220 | 125 | 160 | 608.21 | 411.86 | 286.51 | 32 | M48x2 |
| 250 | 140 | 180 | 785.40 | 539.10 | 378.25 | 40 | ø40 |
| 280 | 160 | 200 | 985.20 | 663.50 | 482.55 | 40 | ø40 |
| 320 | 180 | 220 | 1286.80 | 879.65 | 678.58 | 40 | ø40 |

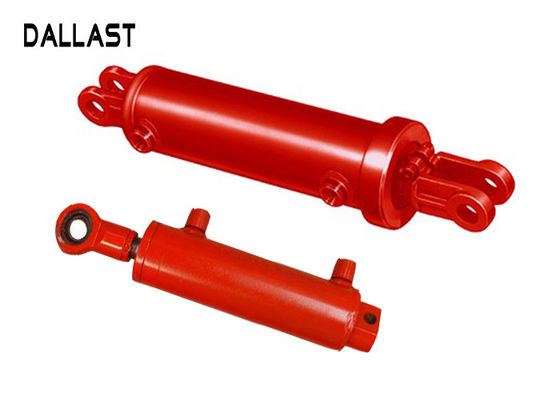

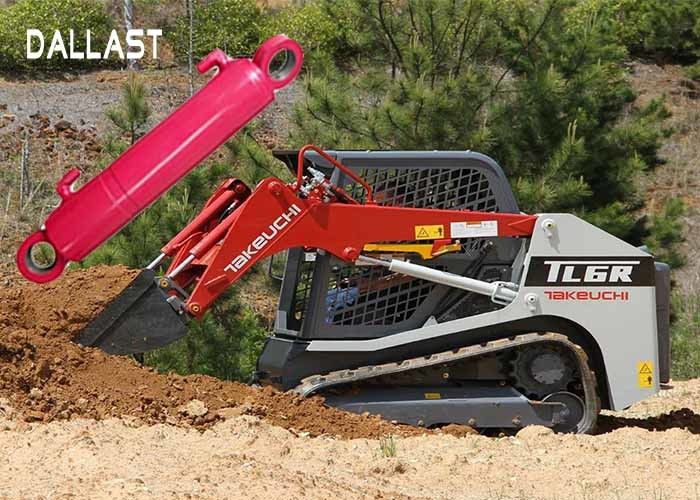

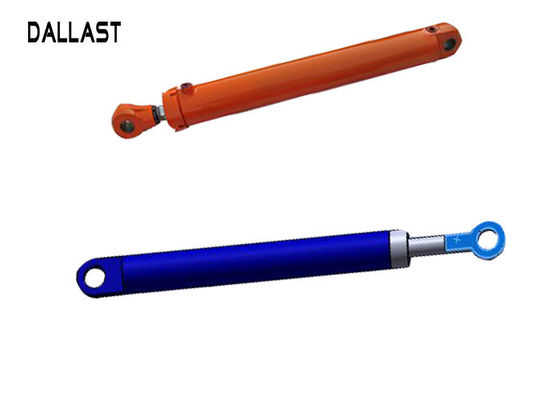

Product Show:
