Mid Pressure Loader Farm Hydraulic Cylinders Double Acting Welded Agricultural Trucks

Mid Pressure Loader Farm Hydraulic Cylinders Double Acting Welded Agricultural Trucks

    • Mid Pressure Loader Farm Hydraulic Cylinders Double Acting Welded Agricultural Trucks
    • Mid Pressure Loader Farm Hydraulic Cylinders Double Acting Welded Agricultural Trucks
    • Mid Pressure Loader Farm Hydraulic Cylinders Double Acting Welded Agricultural Trucks
  • Mid Pressure Loader Farm Hydraulic Cylinders Double Acting Welded Agricultural Trucks

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as your requirements
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union
    Supply Ability: 1 Piece Per Year
    Contact Now
    Detailed Product Description
    Seals: Parker, Merkel, Hallite Available Temperature: -40℃ To 80℃
    Structure: Piston Type Piston Rod Chrome Plated: Cr, Ni, Or Ceramic
    Model Number: OEM Warranty: One Year
    Means Of Transport: Shipping / Air Power: Hydraulic

    Mid Pressure Loader Hydraulic Cylinders Double Acting Welded Agricultural Trucks



    Advantages of Double Acting Cylinder:



    A double acting cylinder alternates cycles of pressurized fluid to both sides of the piston and creates extend and retract forces to move the piston rod, permitting more control over the movement. Using a control system made up of a 2-, 3-, 4- way position valve would be required to achieve the desired movement for your application.

    What it comes down to when selecting which type of cylinder is the amount of control that you need versus what you can afford to have in place. If the heavy lifting, so to speak, is only in one direction, a single acting hydraulic or pneumatic cylinder may be your best bet. If you are moving a part in two directions and need to have full control, it’s best to have a double acting hydraulic or pneumatic cylinder. If you have any other questions regarding Single acting cylinders and Double acting Cylinders or would like our help make you create a custom hydraulic cylinder please reach out to us via email:bruce@dallast.com.



    Quality Control:
    1. The mechanical properties and chemical elements of the raw material will be inspected to check whether qualified after entering the warehouse.
    2. Chemical composition inspection of raw materials, Test the chemical composition of metallic materials, such as C, Si, Mn, P, S, Cr, Ni and other elements. Mainly for raw materials incoming inspection, by testing whether the material qualified, receiving materials.
    3. Metallographic analysis of metal materials is usually the raw materials, such as copper, iron, aluminum, magnesium, zinc, titanium, etc., for the processing of structural parts and finished product evaluation, through the metallographic analysis, You can find a variety of possible reasons for failure analysis in time, Prediction and analysis the characteristics of metallic materials and materials, Study material surface, and internal defects, and to improve and verify the process technology of the material;
    4. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing



    Features and Functions:
    1. Double acting. Hydraulic return
    2. Baked enamel finish for increased corrosion resistance.
    3. Built-in safety valve prevents accidental over-pressurixation.
    4. Be equipped with double-loop pump to run.
    5. RR cylinder is the best solution to premise controlled heavy loads.
    6. Replacing adjustment rolls under a fly-over with RR cylinders, for controlled lifting an lowering operation.



    FAQ:



    1. How can I decide which model to buy?
    We will recommend the most suitable machines for you after informed by your requirements.
    2.OME Service Available?
    (1) Usually, we will manufacture the products as our design.
    (2) We also can make any products according to clients’ requirements.
    3. What is the payment method?
    (1) T/T: in advance.

    (2) West Union: we can accept small payment (below3000), but the bank charges shall be paid by the buyer.
    (3) L/C is acceptable if the amount is big enough.
    4. Delivery Time?
    (1) For standard specification products, usually 15-25 days.
    (2) For non-standard products, usually more than 1 month.
    5. How about the warranty and after-sale service?
    All of our products have one-year warranty, and we can offer you long-distance after-sale
    service 7/24h.

    Parameter:





    Mid Pressure Loader Hydraulic Cylinders Double Acting Welded Agricultural Trucks



    Sealing system Choose PARKER, MERKEL, NOK and other imports of high-end seal, combined with the company's unique sealing system design to prevent sand and dust, reduce oil leakage, access to the best piston rod film.
    Cylinder Cylinder body made according to suitable strength and size, the inner surface of which is processed by rolling to improve the surface hardness and abrasion resistance while ensuring the dimensional accuracy and roughness.
    Tube

    1.Tubes are quenched and tempered.

    2.Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.

    Piston rod based on high-frequency quenching, has been coated with a hard chrome surface to improve rust, abrasion and damage resistance. Surfaces obtained after precision polishing have a uniform texture and high finish to ensure Good surface oil film, improve product life.
    Buffer / Safety Functions Built-in cushioning mechanism that absorbs impact at the stroke end, as required, and also allows easy installation of various valves with functions such as slow return, balance and emergency shutdown.
    Price Good quality yet lower price.

    Quality control

    · All specification is designed by professional engineer

    · All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.

    · All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose

    · Ensure goods can arrive at customer safely

    · One-year warranty and life long time follow up service is offered to solve any problems you met when use our products




    Product Show:

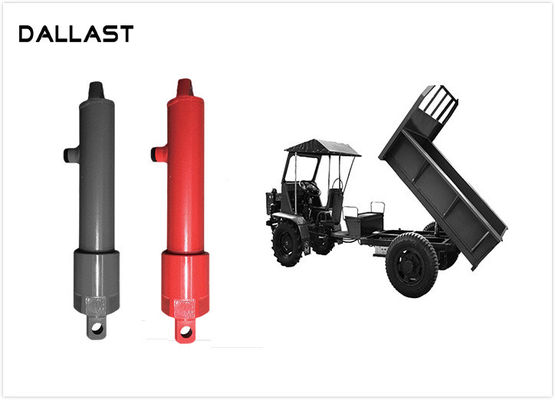

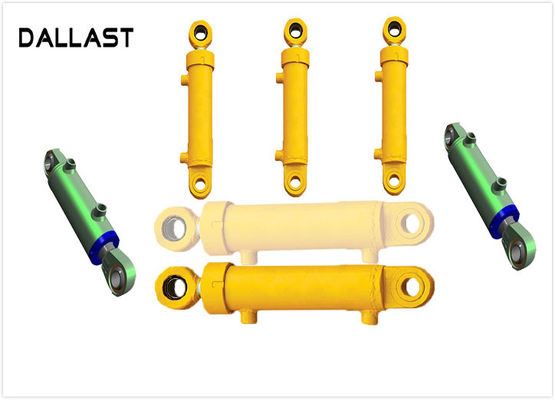

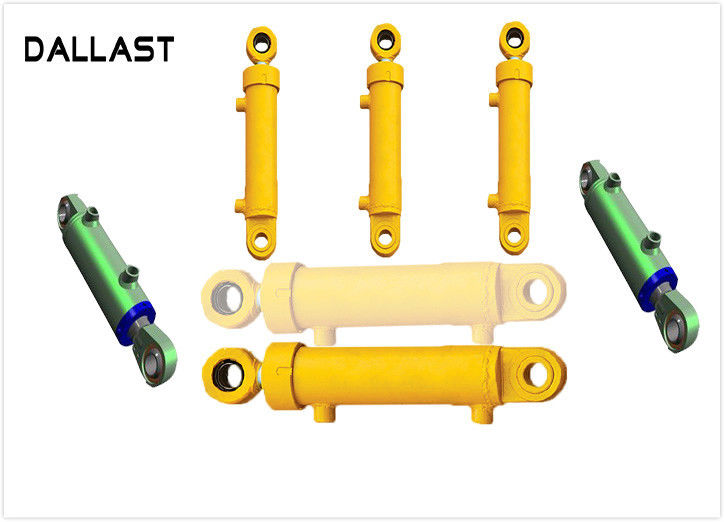

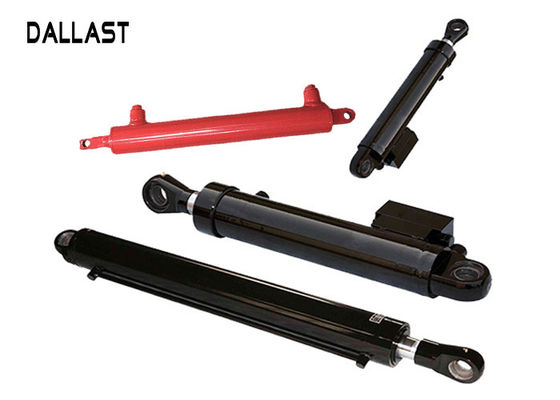

    Mid Pressure Loader Farm Hydraulic Cylinders Double Acting Welded Agricultural Trucks
