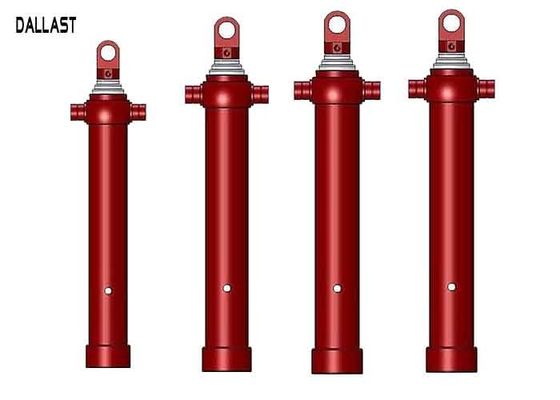

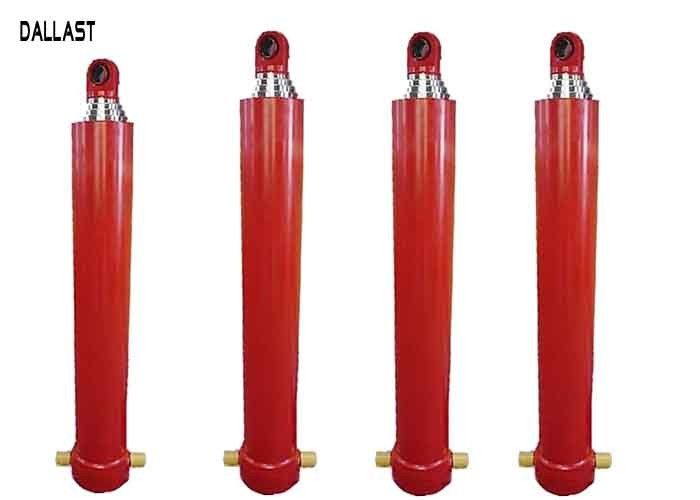

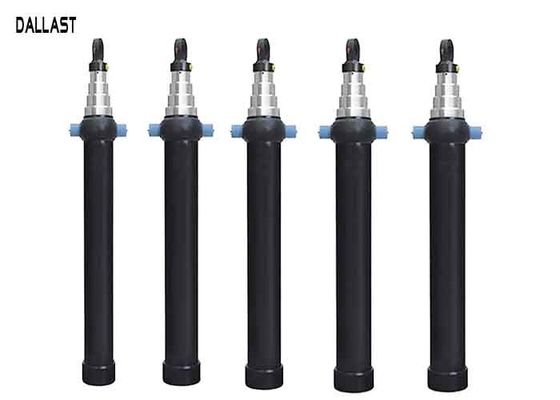

Telescoping Hydraulic Ram Single Acting 3 / 4 / 5 Stages for Dump Truck

Telescoping Hydraulic Ram Single Acting 3 / 4 / 5 Stages for Dump Truck

    • Telescoping Hydraulic Ram Single Acting 3 / 4 / 5 Stages for Dump Truck
    • Telescoping Hydraulic Ram Single Acting 3 / 4 / 5 Stages for Dump Truck
    • Telescoping Hydraulic Ram Single Acting 3 / 4 / 5 Stages for Dump Truck
  • Telescoping Hydraulic Ram Single Acting 3 / 4 / 5 Stages for Dump Truck

    Product Details:

    Place of Origin: Qingdao
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiation
    Packaging Details: wooden case, carton box
    Delivery Time: 15-25 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50000 pieces
    Contact Now
    Detailed Product Description
    Type: Multistage Temperature: Normal Temperature
    Action Type: Single Acting Rod Material: Steel, Or On Request
    Rod Size: Custom Pressure: 10-35 MPa

    Telescoping Hydraulic Lift Cylinder Single Acting 3 4 5 Stages for Dump Truck



    Single acting cylinders transfer force and motion in one direction only; good quality and low noise; the oil way design perfectly and can save the energy, avoid wast; acts on the piston to push the piston rod out.



    Features:

    (1) Low noise:Good quality and low noise.

    (2) Low energy:The oil way design perfectly and can save the energy,avoid wast.

    (3) Save the space:The pump connected with the motor directly can save the space.

    (4) There are various kinds and can meet the different requirement.

    (5) Use the standard oil way and control oil way,easy to service.

    (6) Can produce according to the requirement of the customer or drawing.



    Gland ----High grade ductile iron

    Tube -----Cold drawn honed tubing

    Piston-----High grade ductile iron

    Piston rod----Chromed C45

    Piston seal----Urethane seal

    End cap----Casting seal

    Mounting style----Pins and clips included

    Gland seals----Polyurethane U-cup

    Rod wiper----Urethane snap in

    Paint color----Semi-gloss black, gray, red etc.



    Advantages:

    When manufacturing multistage cylinders, the number of stages are able to produce, which is limited only by the physical confines of the cylinder requirement; samples can be provide to you before starting cooperation.



    We are factory and can assure the prompt delivery time. Packing can be customized, often using standard export wooden case packing.



    The single acting telescopic hydraulic cylinders produced in DALLAST company are mainly used on: tipping trailer; dump truck; side tipping vehicle;compressed equipment,etc.



    Quality control:

    1. We have professional quality control department,every step from raw material to finished product

    is in the same factory,each procedure will be tested by professional inspector.



    2. Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .

    After hydraulic cylinder is assemblied , Pressure test would be carried out one by one.We ensure the

    testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic

    cylinder must be tested without any leakage.



    Cylinder designs include welded and screwed type, welded and bolted, fully bolted or tie rod or can take the form of your drawing entirely.



    FE Type hydraulic cylinder
    Model Stage Largest Stage Diameter Stroke Mounting distance Push force
    (mm) (mm) (mm) (ton)
    FE-3-110-3205 3 110 3205 1449 15.2
    FE-3-110-3460 3 110 3460 1609 15.2
    FE-3-129-3460 3 129 3460 1449 20.9
    FE-3-129-3880 3 129 3880 1609 20.9
    FE-3-149-2900 3 149 2900 1320 27.88
    FE-3-149-3200 3 149 3200 1420 27.88
    FE-3-149-3500 3 149 3500 1520 27.88
    FE-3-149-3880 3 149 3880 1644 27.88
    FE-4-149-4280 4 149 4280 1450 27.88
    FE-4-149-4940 4 149 4940 1529 27.88
    FE-4-149-4620 4 149 4620 1484 27.88
    FE-4-169-4280 4 169 4280 1394 35.87
    FE-4-169-4450 4 169 4450 1437 35.87



    All single acting hydraulic cylinders



    working pressure: 16MPa



    And we can OEM & ODM, If you are interested in our hydraulic RAM, please feel free to contact us.





    Warranty:
    We offer 12 months warranty.

    From the date of delivery within 12 months, our company is responsible for the replacement, repair or return. The user is a hydraulic cylinder propulsion, to improve the inherent quality of the fuel tank is the purpose of our factory production and the pursuit of goals.



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.
