Telescopic Multi Stage Single Acting Hydraulic Ram 3 5 7 Inch Bore Cylinder

Telescopic Multi Stage Single Acting Hydraulic Ram 3 5 7 Inch Bore Cylinder

    • Telescopic Multi Stage Single Acting Hydraulic Ram 3 5 7 Inch Bore Cylinder
    • Telescopic Multi Stage Single Acting Hydraulic Ram 3 5 7 Inch Bore Cylinder
    • Telescopic Multi Stage Single Acting Hydraulic Ram 3 5 7 Inch Bore Cylinder
  • Telescopic Multi Stage Single Acting Hydraulic Ram 3 5 7 Inch Bore Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: DALLAST
    Certification: GS CE ISO 9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Load Capacity: 50 Ton Case Depth: 0.5-1.5mm
    Adjusted Form: Regulated Type Working Medium: Hydraulic Oil
    Temperature: -30-40 Degrees Coatings: Chrome Plated
    Delivery Time: 15-25 Days Package: Pallet Or As Customer's Requirement

    Hydraulic RAM Telescopic Multi Stage 3 5 7 Inch Bore Cylinder Single Acting RAM



    Model Extended
    Stages
    Working Pressure MPA

    Max. stage

    mm

    Max. stroke

    mm

    Lifting
    Capacity

    Ton

    129-3E-3880 3 16-19 129 3880 20-35
    149-3E-3880 3 16-19 149 3880 25-45
    149-3E-4280 3 16-19 149 4280 25-45
    169-4E-4280 4 16-19 169 4280 30-50
    169-4E-4640 4 16-19 169 4640 32-55
    169-4E-5000 4 16-19 169 5000 32-60
    169-4E-5180 4 16-19 169 5180 32-60
    169-4E-5390 4 16-19 169 5390 32-60
    169-4E-5460 4 16-19 169 5460 32-60
    185-4E-4280 4 16-19 185 4280 25-45
    185-4E-5460 4 16-19 185 5460 40-65
    185-4E-5780 4 16-19 185 5780 45-70
    185-4E-6000 4 16-19 185 6000 50-80
    191-5E-5780 5 16-19 191 5780 40-70
    191-5E-6200 5 16-19 191 6200 45-80
    191-5E-7130 5 16-19 191 7130 50-85



    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details



    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.

    Product :

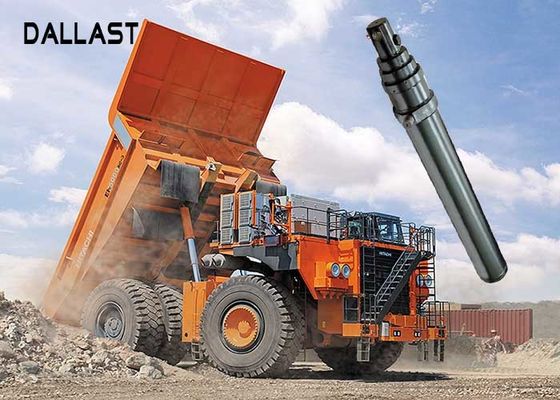

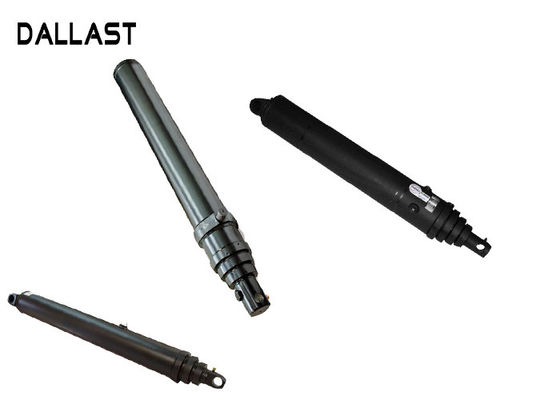

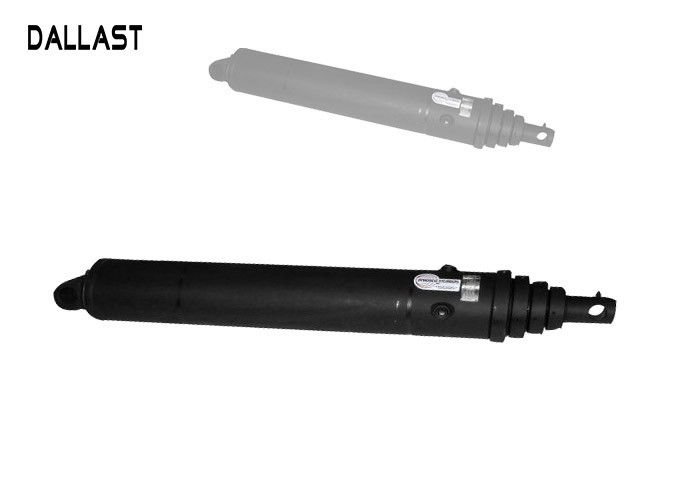

    Telescopic cylinders have two or more piston rods in a coaxial arrangement to achieve greater extended length compared to the retracted length. An external force is required to return the cylinder to the retracted position. A typical application for a single-acting cylinder is a lift truck, where the load of the fork pushes the cylinder back.



    DALLAST focus on manufacturing all kinds of cylinders used for Machinery, Equipment, Metallurgy, Water Conservancy, Mining, Offshore, Truck, etc. We also can design or do OEM in accordance with client's special requirements. We have our own professional design team, advanced production equipment, and strict quality control system to improve the reliability, safety and economy of products. To create real benefit for clients, East-Ai will offer a full set of services, such as consulting solutions, products installation, technical support, etc.



    FAQ:

    1. Package and shipment

    How are orders packed and shipped?

    Different products with the suitable package such as carton, wooden box or wooden pallet, to protect the products from the overseas transportation.

    Can be customized according to customer requirements



    2. Our Services

    We provide hydraulic systems, hydraulic cylinder, hydraulic power pack, hydraulic parts (pumps, valves, motors, cylinders, accumulators and other accessories),

    We also provide hydraulic system design and technical consulting



    3. Could DALLAST offer OEM service?

    Yes. DALLAST can offer OEM with customers' brand name and trademark onto the product.



    4. Do DALLAST products come with a warranty?

    Yes. DALLAST offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.





    Telescopic Multi Stage Single Acting Hydraulic Ram 3 5 7 Inch Bore Cylinder
